Spectralink IP-DECT Server 400 Installation and Configuration Guide
Installing the External Antenna
You connect the external antenna to the Spectralink IP-DECT Server 400 by removing the brick
on the rear side and mounting the cable to the external antenna as shown in the following figure.
The external antenna is mounted on the wall in the same way as the Spectralink IP-DECT Server
400.
For information on how to use and place the external antenna, refer to the deployment guide.

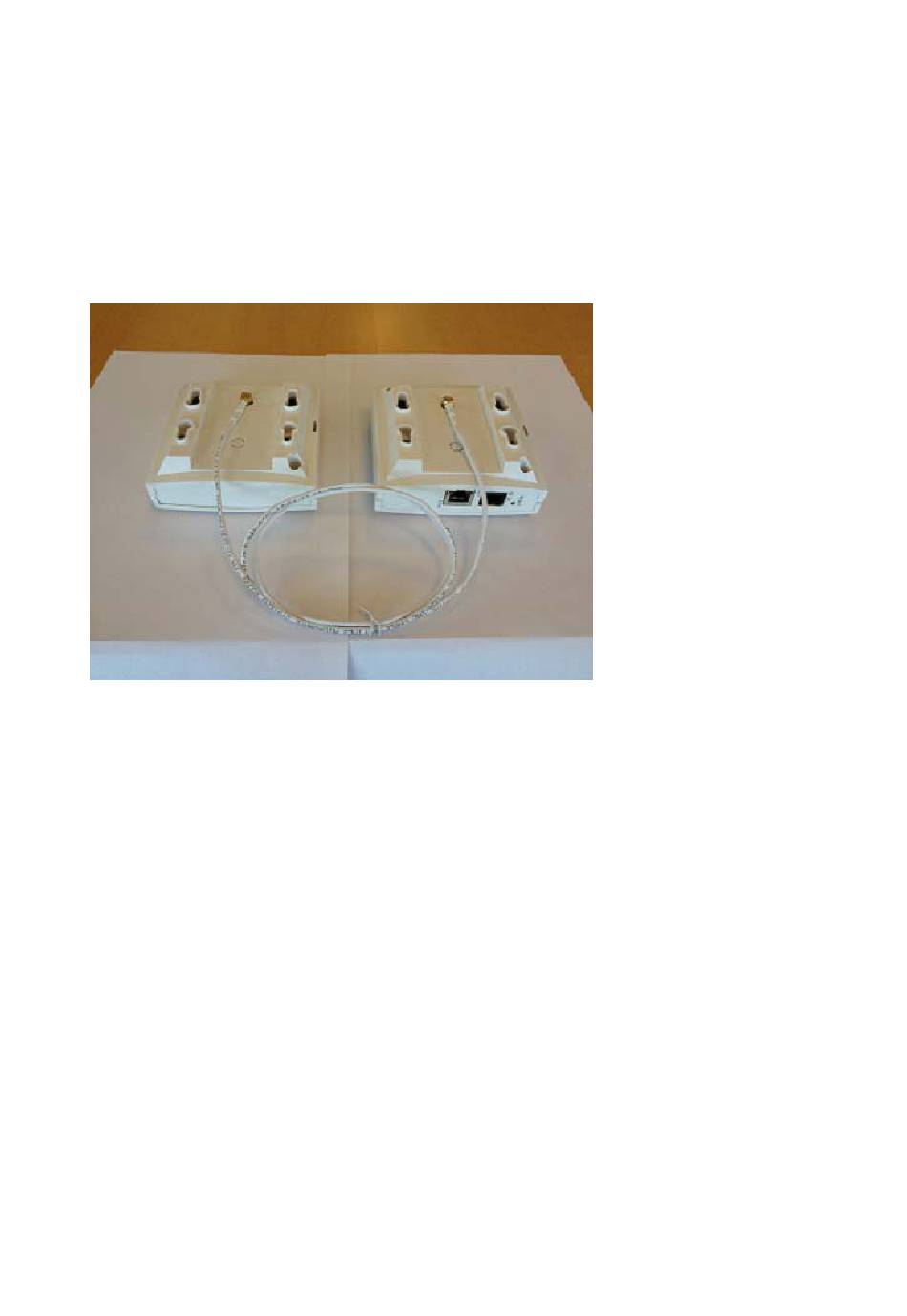

Figure 4
External antenna
Left: external antenna
Right: Spectralink IP-DECT Server 400
14219101 Version 3.0
August, 2013
11
