Sip Paging Adapter Connections; Pin Description - CyberData SIP Paging Adapter Connections

The IP Endpoint Company
Peavey MMA 8150T Amplifier
Notes

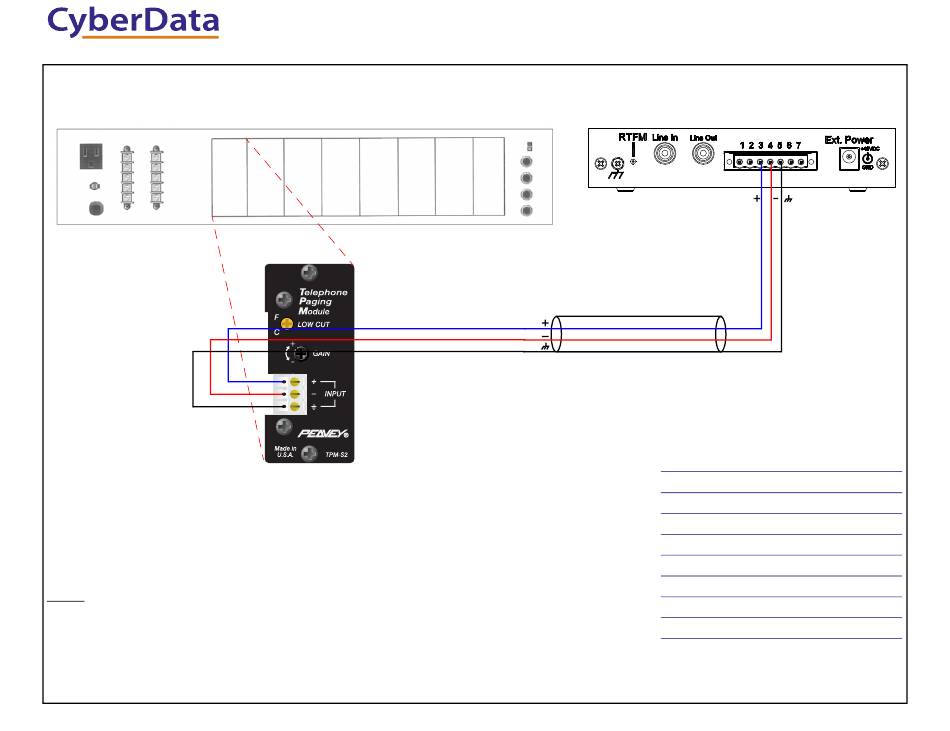

This page shows possible connections to a TPM-S2 module
Connect the SIP Paging Adapter's Page Port output terminal pins to the INPUT
on the TPM-S2 module.
2 conductor, shielded speaker wire is recommended.
Peavey MMA 8150T Amplifier to SIP Paging Adapter Connections

SIP Paging Adapter Connections

PGM IN
Balanced
Hi
Lo
Shield/Drain Wire Keep as short as possible
930715A
+ - +
-
Hi
Lo
Shield/Drain Wire
s
SIP Paging Adapter Connections

Pin Description

1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Output
4 Negative 600-Ohm Audio Output
5 Audio Ground Reference.
b
6 Relay Contact - Common
7 Relay Contact - Normally Open
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
b.1 Amp at 30 VDC for continuous loads.
a
a
b
