CyberData Singlewire Paging Adapter Connecting page 8

The IP Endpoint Company
Bogen PCMTIM Module Configuration
Notes
CyberData Singlewire Paging Adapter's Page Port output connects to the TRUNK/PAGE PORT input on the PCMTIM
module using an RJ11 modular connector. Only pins 3 and 4 of the RJ11 modular connector will be used for this configu-
ration.
Power off the PCMTIM. Set the DIP switches to VX (top position) and P/P (middle position) as shown above for a Page
Port/Vox configuration. Page activation occurs on the first DTMF tone rather than contact closure.

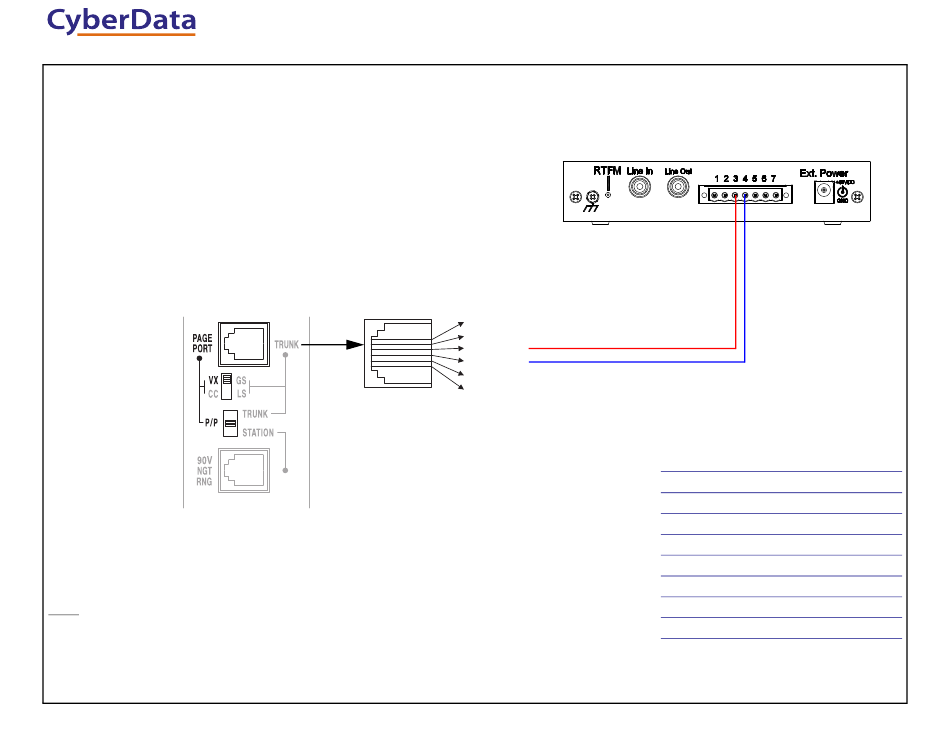

Bogen PCM2000 Zone Paging System with new PCMTIM to Singlewire Paging Adapter
TRUNK/PAGE PORT
Singlewire Paging Adapter Connections
6 - Not used
5 - Not used
4 - Dry audio (T)
3 - Dry audio (R)
2 - Not used
1 - Not used
931022A
Connections—VOX Configuration
+ - +
-
s
Page Port Output Connections
Pin Description
1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Output
4 Negative 600-Ohm Audio Output
5 Audio Ground Reference.
b
6 Relay Contact - Common
7 Relay Contact - Normally Open
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
b.1 Amp at 30 VDC for continuous loads.
a
a
b
