CyberData Singlewire Paging Adapter Connecting page 2

Bogen PCM2000 Zone Paging System with Old PCMTIM to Singlewire Paging Adapter
The IP Endpoint Company
Bogen PCMTIM Module Configuration
PCM
TIM
S1
S2
S3 TEL
INT
S4
SEL
S5
S6
0 1
S7
0 1
S1
S2
TEL
S3
INT
S4
SEL
S5
S6
S7
POWER
TONE
VOLUME
BGM SRC
VOLUME
NIGHT
RING
TEL LINE
6 - Not used
5 - Contact Closure
4 - Dry audio (T)
TEL
LINE
3 - Dry audio (R)
2 - Contact Closure
1 - Not used
OVER
RIDE
IN
BGM
SRC
RT
NC
RLY
COM
ONE
NO
NC
RLY
COM
TWO Notes
NO

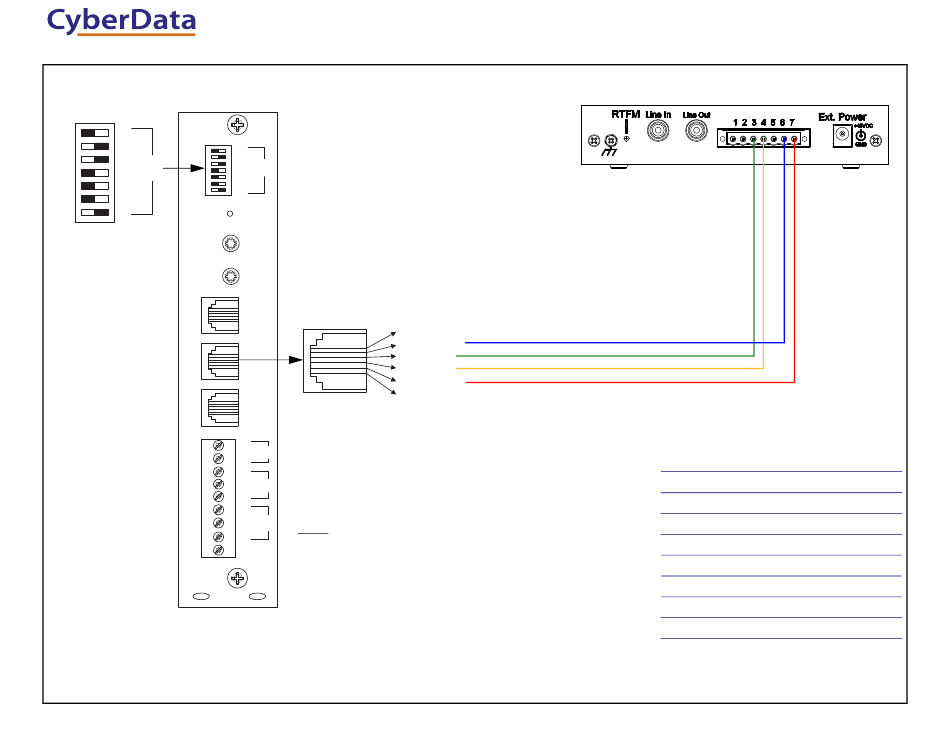

CyberData Singlewire Paging Adapter's Page Port output connects to the
GND ST
TEL LINE input on the PCMTIM module using an RJ11 modular connec-
tor. Pins 2, 3, 4, and 5 of the RJ11 modular connector will be used for this
configuration.
Power off the PCMTIM. Set the TEL INT SEL switches per the above dia-
gram for a Page Port/Contact Closure configuration. Page activation
occurs upon contact closure.
It will be necessary to use the dry relay contacts for contact closure. Be
sure to check the Enable relay on local audio option on the Device
Configuration page of the web interface.
Singlewire Paging Adapter Connections
931022A
Connections—Contact Closure Configuration
+ - +
-
s
Page Port Output Connections
Pin Description
1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Output
4 Negative 600-Ohm Audio Output
5 Audio Ground Reference.
b
6 Relay Contact - Common
7 Relay Contact - Normally Open
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
b.1 Amp at 30 VDC for continuous loads.
a
a
b
