CyberData Singlewire Paging Adapter Connecting page 6

Bogen PCM2000 Zone Paging System with New PCMTIM to Singlewire Paging Adapter
The IP Endpoint Company The IP Endpoint Company
Bogen PCMTIM Module Configuration
Notes

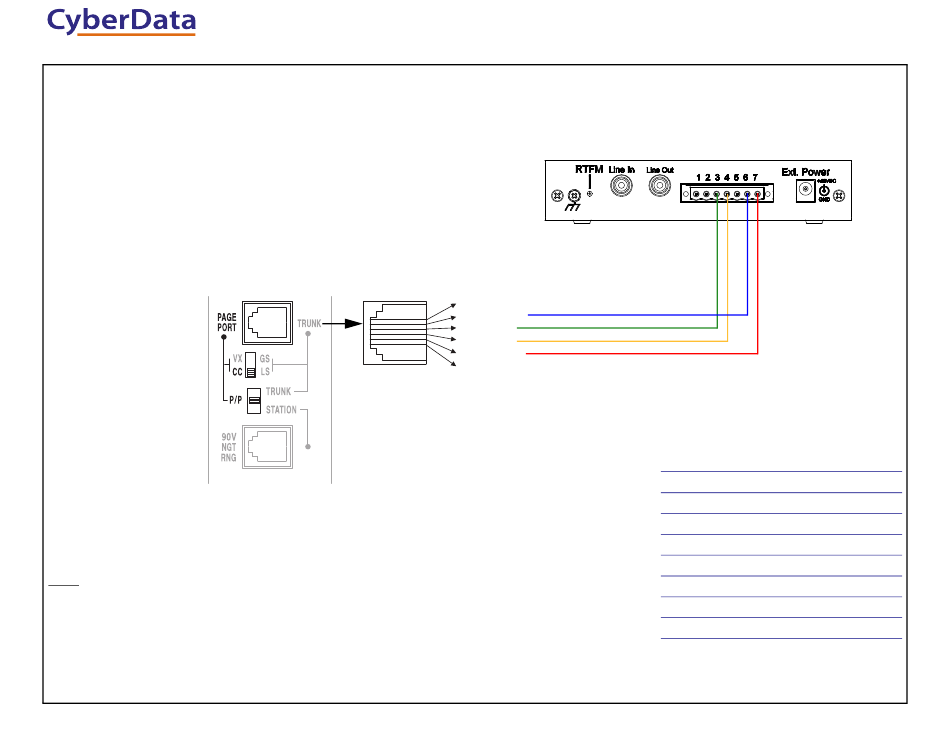

CyberData Singlewire Paging Adapter's Page Port output connects to the TRUNK/PAGE PORT input on the PCMTIM
module using an RJ11 modular connector.
Power off the PCMTIM. Set the DIP switches to CC (bottom position) and P/P (middle position) as shown above for a
Page Port/Contact Closure configuration. Page activation occurs upon contact closure.
It will be necessary to use the dry relay contacts for contact closure. Be sure to check the Enable relay on local
audio option on the Device Configuration page of the web interface.
Singlewire Paging Adapter Connections
TRUNK/PAGE PORT
6 - Not used
5 - Contact Closure
4 - Dry audio (T)
3 - Dry audio (R)
2 - Contact Closure
1 - Not used
931022A
Connections—Contact Closure Configuration
+ - +
-
s
Page Port Output Connections
Pin Description
1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Output
4 Negative 600-Ohm Audio Output
5 Audio Ground Reference.
b
6 Relay Contact - Common
7 Relay Contact - Normally Open
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
b.1 Amp at 30 VDC for continuous loads.
a
a
b
