Power Off; Standby Mode; Operating Instructions - Lectrosonics SMB Series Quick Start Manual

Operating Instructions

Power On
1)
Ensure that good batteries are installed.
2)
Simultaneously press and hold the AUDIO
and FREQ buttons until the Power On Boot
Sequence is initiated (3 seconds).

Power Off

1) Simultaneously press and hold the AUDIO and
FREQ buttons while observing that the word
"Off" appears in the LCD along with a counter.
2)
When the counter reaches "0", the unit turns off.
Note: If the AUDIO and FREQ buttons are released before the end of
the countdown, the unit will not turn off.

Standby Mode

From the "OFF" position, quickly press and release
both the AUDIO and FREQ buttons simultaneously
to enter and exit this mode. Allows the user to verify
or change the transmitter's operating frequency or
audio input level without transmitting any signals.
Selecting the Compatibility Mode and Power
SMB Series transmitters will work with all E01
Series Digital Hybrid Wireless
native, compandor-free mode and with E01 Series
IFB receivers. Consult your dealer or service center
regarding use with other models and brands.
Note: RF transmission is prevented while
selecting Compatibility Modes. Also, the transmitter exits the
Compatibility Mode screen to Standby Mode. (See Standby Mode, this
section.)
1) Set the receiver's audio controls to minimum.
2) From a power off condition, press and hold the Up arrow, then press the
AUDIO and FREQ buttons simultaneously.
3) The LCD will display the current Compatibility Mode. Use the Up or
Down arrow button to set the Compatibility Mode to match the corre-
sponding receiver.
Hbr - This is the factory default setting and works with all Lectrosonics
E01 Series Digital Hybrid Wireless® receivers, including the Venue.
IFb - This mode works with all Lectrosonics IFB compatible receivers.
4) The selected compatibility mode will be the current Compatibility Mode
until reset using this procedure. Pressing AUDIO or FREQ exits into the
Standby Mode. To power off from the compatibility mode screen, press
AUDIO and FREQ together.
4
receivers in the
®

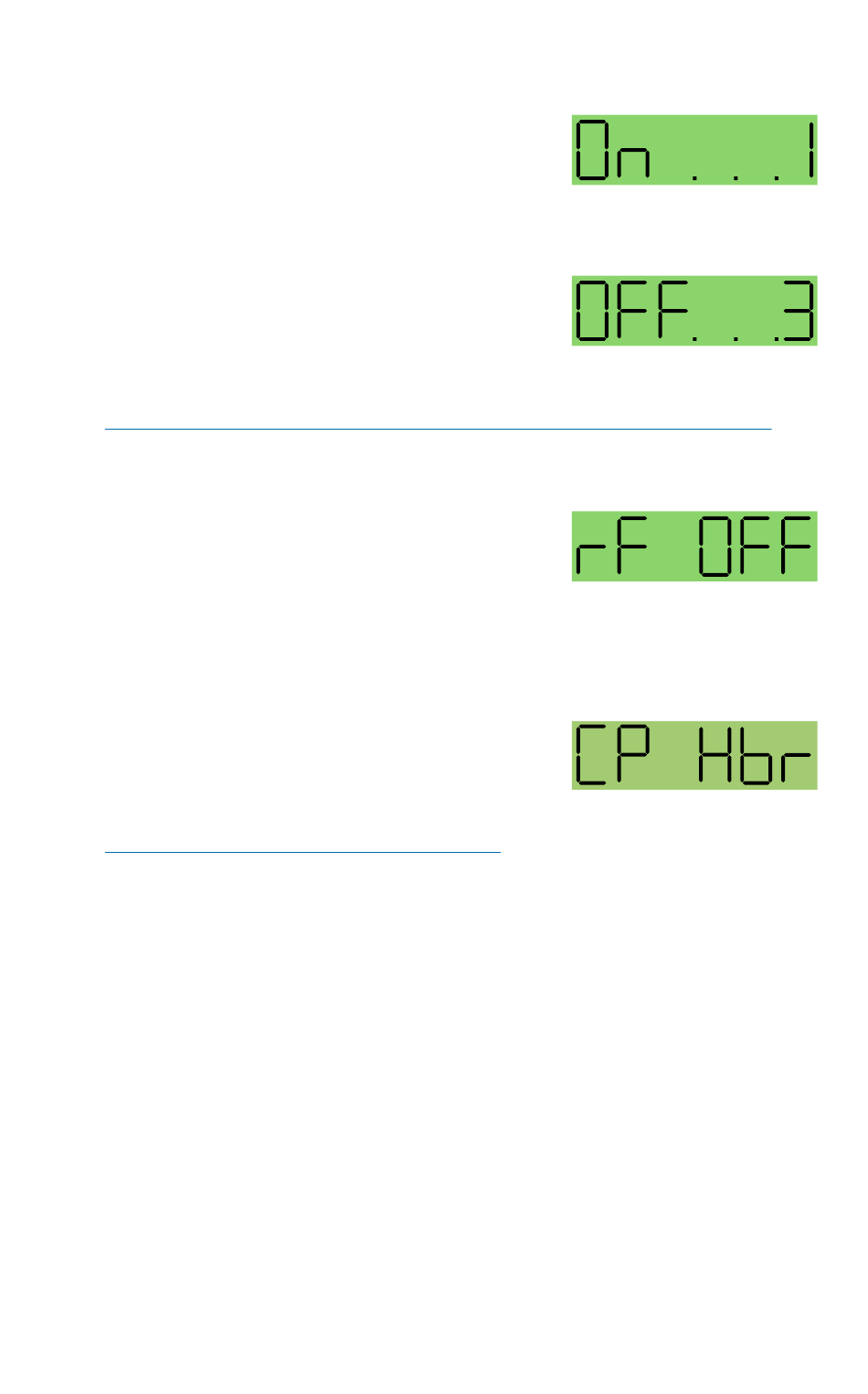

Initial Power On
Timer Screen
Initial Power Off
Timer Screen
Standby Screen
Digital Hybrid Wireless®
Compatibility Mode
LECTROSONICS, INC.
