Controls and Functions

Battery
Compartment
Cover Plate
Battery
Compartment
Retaining
Screw
LCD Screen
Used to display the status of the selected function.
Power LED
Indicates power status and battery strength.

Audio Input Jack

Accommodates most lavaliere and dynamic microphones, and line level
signals.

Modulation LEDs

Provides a visual indication of the audio input signal level - either red or green
to indicate modulation levels.

Audio Button

Used to display the audio level setting (0 dB to 44 dB) on the LCD and used
with the Up and Down arrows to adjust the audio level input from the micro-
phone.
FREQ Button
Used to set the operating frequency and toggle the LCD between the operating
frequency in MHz and a two-digit hexadecimal frequency code.

Up/Down Arrows

Used to adjust the selected function or parameter.
Battery Compartment, Cover Plate and Opener
Used to install or remove battery/batteries.

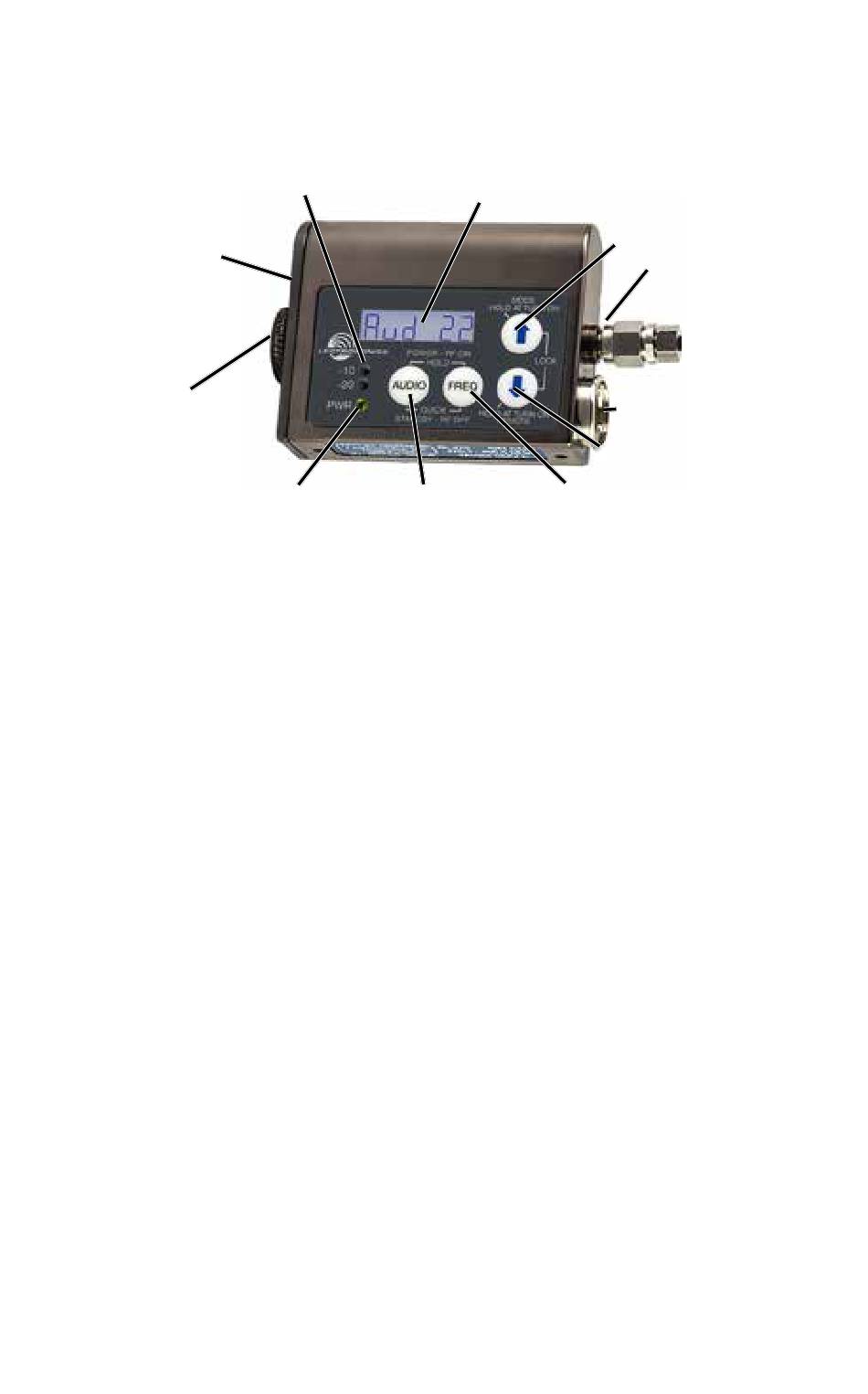

www.lectrosonics.com
Modulation
LEDs
PWR LED AUDIO Button
LCD
UP Arrow
Input Jack
DOWN Arrow
FREQ Button
Antenna
Jack
Audio
