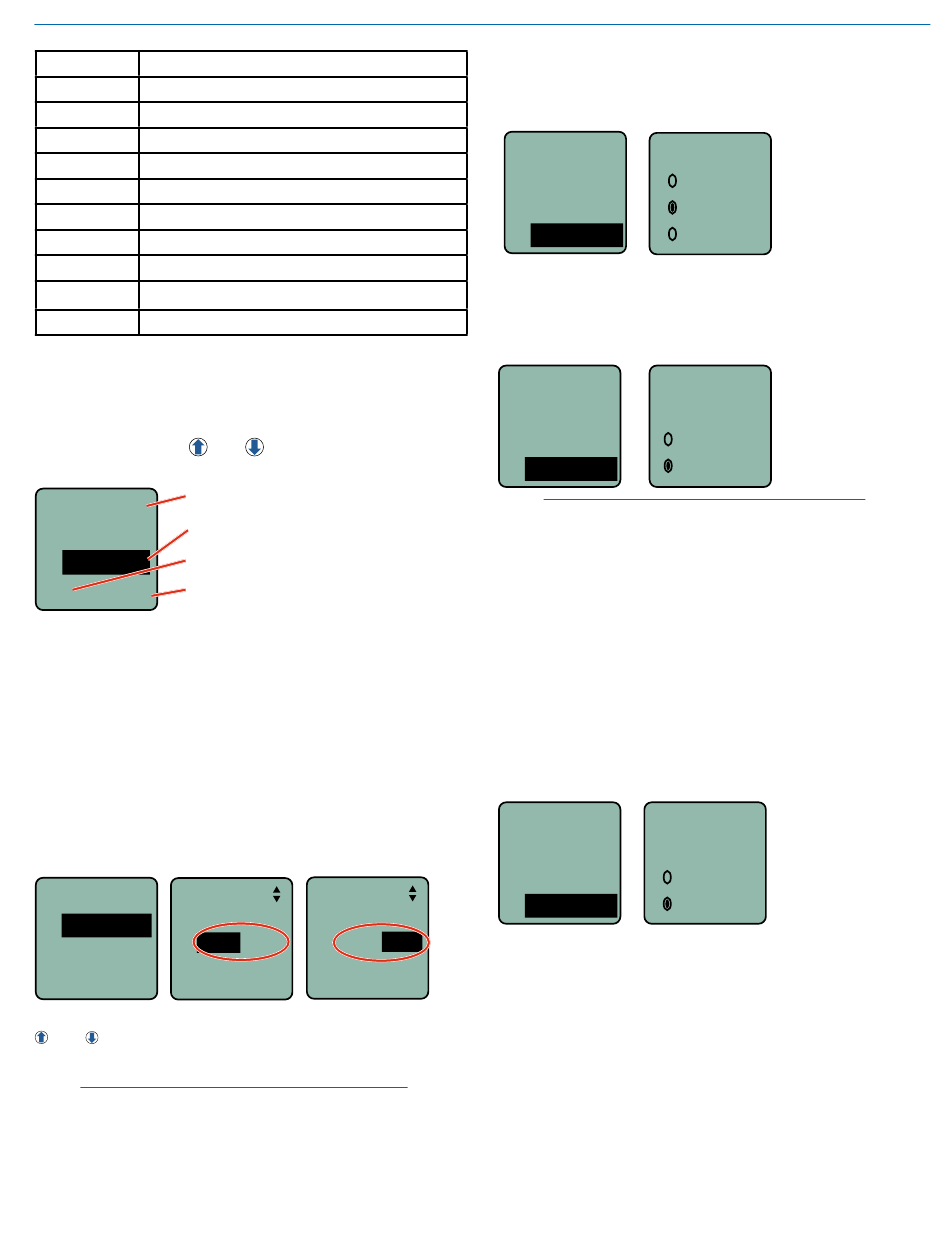

Xmit Menu; Selecting Frequency; Selecting Transmitter Output Power; Selecting Receiver Compatibility Mode - Lectrosonics duet DCHT Instruction Manual

TYPE DESC, BIAS, IMPEDANCE, POLARITY
Line In
Line level signals up to +24 dBu
Dynamic
Low-Z dynamic microphones
PSA
Point Source Audio lav microphones
DPA
DPA lavaliere; 4V, Mid-Z, (+)
B6
Countryman B6; 2V, Low-Z, (+)
COS-11
Sanken COS-11; 4V, Low-Z, (–)
MKE 2*
Sennheiser MKE 2; 4V, Low-Z, (+)
M152*
Lectrosonics M152; 4V, Low-Z, (+)
Oth Lav*
Other lavaliere; 4V, Low-Z, (+)
Custom
Manually configurable microphone level
* Separate listings for these microphones are included for
convenience, however, they are all the same configura-
tion.
The Custom option opens a setup screen that provides a
variety of settings. Press SEL to select the custom setup
item, then press the and
the setting.
Channel select
InpCfg2
Input impedance
Custom
Bias voltage
MicLoZ
Audio polarity
0V Neg
Available settings:
• Input impedance (Z): LOW, MID, HIGH
• Bias voltage: 0V, 2V, 4V
• Audio polarity: + (pos.), – (neg.)

Xmit Menu

Selecting Frequency

The setup screen for frequency selection offers multiple
ways to browse the available frequencies.
Freq.
Xmit...
Freq
494.500
TxPower
Rf On?
Gr p 4
Press the MENU/SEL button to select each field. Use the
and arrow buttons to adjust the frequency. Each field
will step through the available frequencies in a different
increment, or select the Frequency Group.
NOTE: When the frequency is highlighted, hold
down the MENU/SEL button to increase or
decrease frequency in higher increments.
Rio Rancho, NM
arrow buttons to adjust
Freq.
494.500
Gr p 4

Selecting Transmitter Output Power

The output power can be set to 10 mW, 25 mW
or 50 mW.
Xmit...
TxPower
TxPower
Compat
Rf On?

Turning Rf On/Off

Turn Rf off to preserve battery power while setting other
transmitter functions. Turn it back on to begin transmit-
ting.
Xmit... Rf On?
TxPower
Compat
Rf On?
NOTE: When transmitter is off, a brief press of
the Power Button will turn the transmitter on
with Rf off. Use this function to turn Rf on when
ready to transmit.
Compatibility Mode

Selecting Receiver Compatibility Mode

The transmitter can be set to operate with different re-
ceivers:
Duet: M2R digital IEM/IFB receiver
DCHX: DCHR and M2R-X encrypted (FW v3.x)
TopMenu Compat
Input
Duet
Xmit
DCHX
Compat
Digital Transmitter
10 mW
25 mW
50 mW
Yes
No
