Instruction Manual
Q
uick
S
tart
G
uide

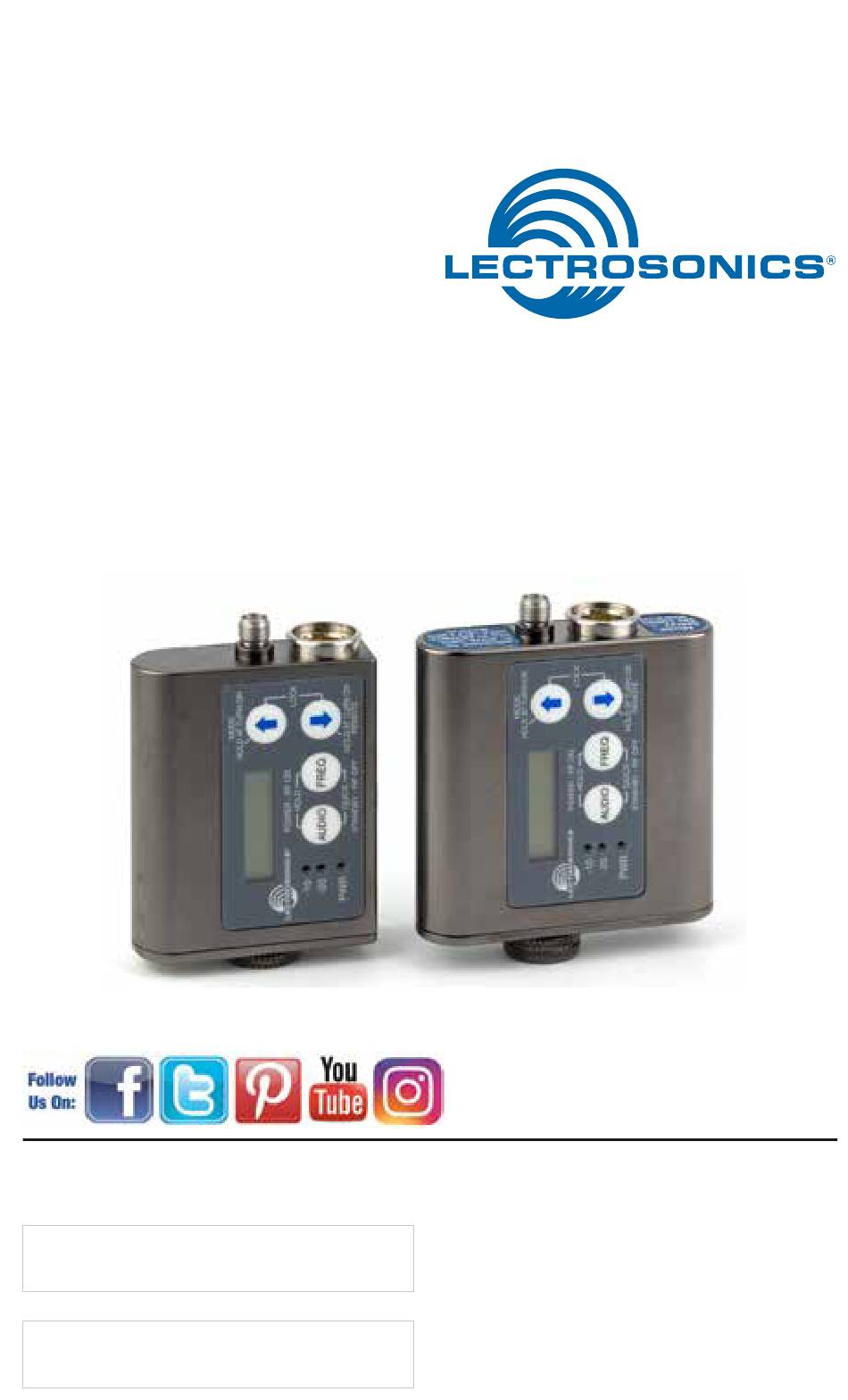

SMV-941 Series Transmitters
Digital Hybrid Wireless
For FCC Part 74 licensed operators
SMV-941
Fill in for your records:
Serial Number:
Purchase Date:
US Patent 7,225,135
®
SMQV-941
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com
30 November 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lectrosonics SMV-941 Series
Summary of Contents for Lectrosonics SMV-941 Series
- Page 1 SMV-941 Series Transmitters Digital Hybrid Wireless US Patent 7,225,135 ® For FCC Part 74 licensed operators SMV-941 SMQV-941 Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product.
-
Page 2: Controls And Functions
A weak battery will sometimes cause the PWR LED to glow green immediate- ly after the transmitter is turned on, but will soon discharge to the point where the LED will turn red or the unit will turn off completely. LECTROSONICS, INC. -
Page 3: Audio Input Jack
The UP and DOWN arrow buttons are used to select the values on the vari- ous setup screens and to lock out the control panel. Antenna The transmitter uses a whip antenna with a flexible woven, galvanized steel mesh cable and a standard SMA connector. www.lectrosonics.com... -
Page 4: Battery And Battery Eliminator Installation
(SMQV) To install the battery eliminator, loosen the thumbscrew completely and remove the battery door. Insert the battery eliminator and tighten the thumbscrew. Install plastic cap on dual battery model to cover the open battery compartment. LECTROSONICS, INC. -
Page 5: Attaching And Removing The Microphone
Pull on the connector to make sure it is firmly latched. Release button To remove the connector, pull the sleeve back to expose the black release button. Press the button to unlatch the plug. www.lectrosonics.com... -
Page 6: Power Up And Boot Sequence
The screen displays “rf OFF” to remind the user that the unit is not transmitting. While the unit is in the standby mode, access the setup screens using the AUDIO and FREQ buttons and make adjustments using the UP and DOWN arrows. LECTROSONICS, INC. -
Page 7: Hold Up Arrow At Turn On
Allows the transmitter to be used with 941 Series receivers or IFB systems in the 941 MHz band. new hybrid mode (ETSI compliant) Lectrosonics IFB systems NOTE: The nHb compatibility mode is the same as the NU HYBR mode in the SRc-941 receiver. -
Page 8: Hold Down Arrow At Turn On
(remote control with mobile app) Allows the transmitter to respond to remote control “dweedle” tones from a mobile device, or from tones generated by the Lectrosonics RM and RM2 devices. Enables the remote function. - Page 9 4) If the unit was set up in Standby Mode, it will be necessary to turn the transmitter off, then power it up again in normal operation so the RF output will be on. Then the other components in the sound or recording system can be adjusted. www.lectrosonics.com...
-
Page 10: Freq Button
Remove the batteries to unlock the control panel. Important: Once the transmitter is locked, it cannot be unlocked or powered off using the buttons. The only ways to unlock a locked transmitter are to remove the battery or unlock it via the RM remote control. LECTROSONICS, INC. -
Page 11: Remote Control Operation
Remote Control Operation The transmitter can be controlled by signals from audio “dweedle” tones generated by a mobile phone, or with the Lectrosonics RM and RM2 devices. The remote function is enabled in the UP arrow Remote Control Screens power on options (see previous section). If a remote control signal is detected but the function is no enabled, the message rc oFF will be displayed briefly on the transmitter’s LCD.
