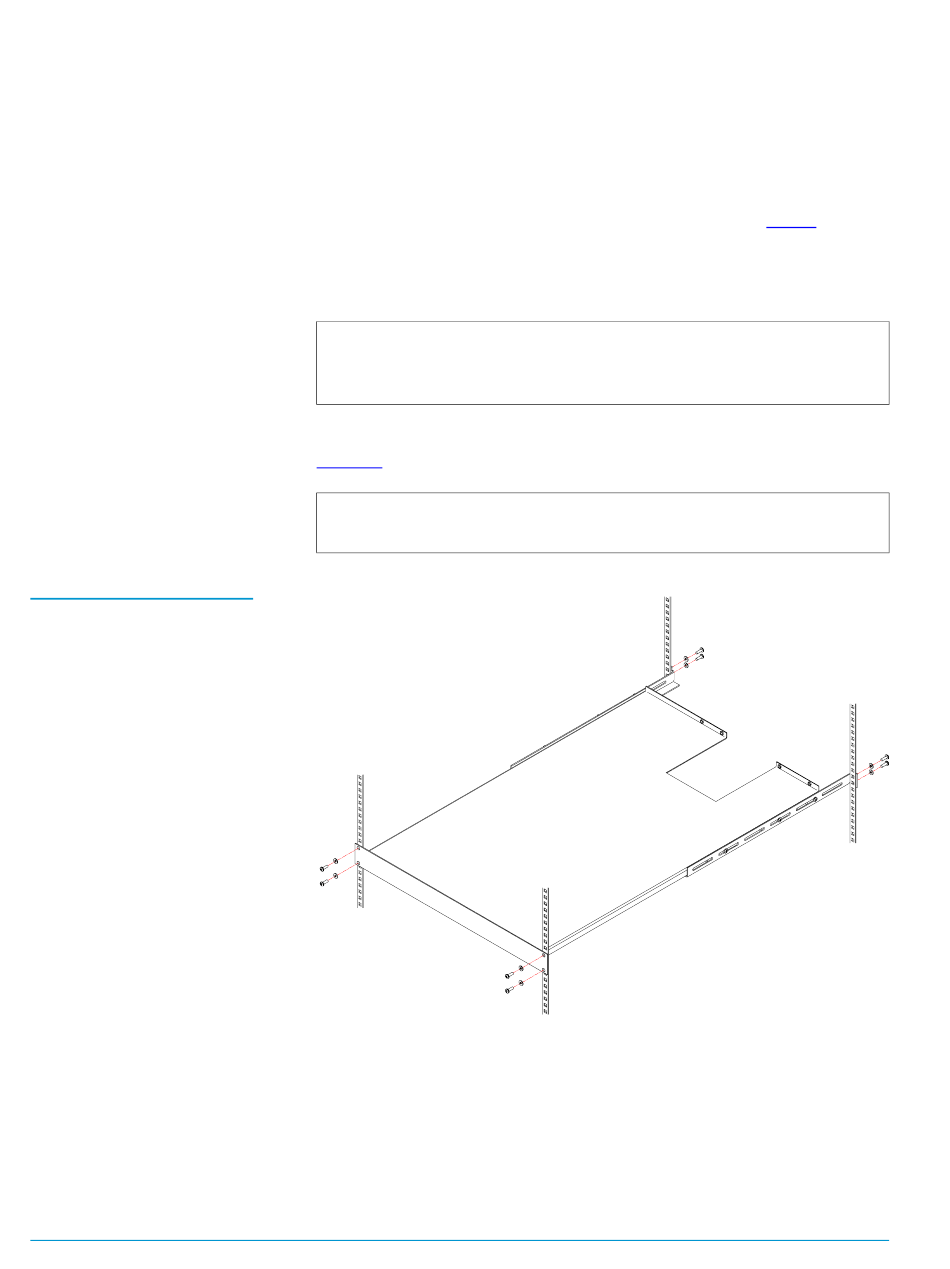

Figure 4 Securing the Top
Mounting Tray Assembly to
the Rack
8
Adjust the position of the rear support arms on the top mounting
2
tray until the distance between the front and rear flanges is
approximately the same as the distance between the front and rear
mounting strips in the rack.
Replace the six screws and washers you removed in
3
finger-tighten them. Position the front and rear screws as far apart
as the slots allow. Position the third screw approximately in the
middle slot.
Do not over-tighten the screws. You need to be able to
Note:
extend or retract the rear support arms slightly as you
install the top mounting tray assembly.
Position the top mounting tray assembly in the rack, referring to
4
figure 4 for the correct orientation.
Position the front and rear flanges on the top mounting
Note:
tray outside of the rack rails.
FRONT
Installing the Top Mounting Tray Assembly
step 1 and
REAR
