Interlibrary (Control
Bus) Cabling

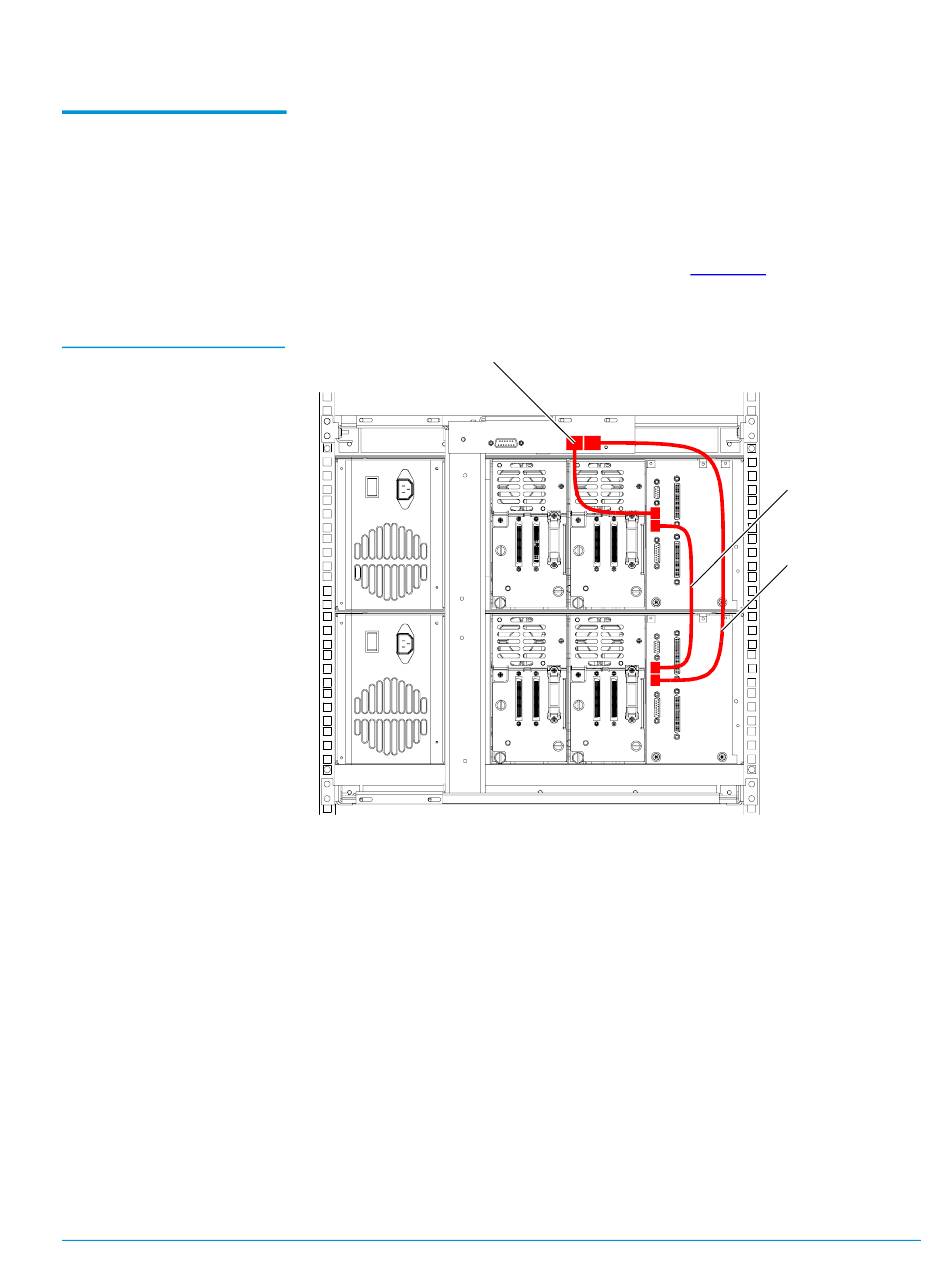

Figure 15 Library Control
and StackLink Power
Cabling
The intelligent control bus allows the individual libraries in the rack to
0
communicate. To connect this bus:
Connect the top M1500 module in the rack to the terminator on the
1
front of the motor assembly, using one of the library control bus
cables provided (PN AS3642).
Daisy chain the control bus as shown in
2
control bus cables provided (PN AS3642).
Library control bus terminator
Connect the bottom M1500 module in the rack to the I
3
terminator board:
• On a 2-high stack, use library control bus cable PN AS2642.
• On a 5-high or 10-high stack, use library control bus cable
PN AS2643.
Quantum|ATL StackLink™ Installation Instructions
Cabling the Library
Document 6421009-03, Ver. 3, Rel. 0
November 2001
figure 15, using the library
Library control
bus (daisy
chained)
This cable
completes a loop
back to the I
terminator board
2
C
2
C
