Installing the Carriage/counterweight Assembly

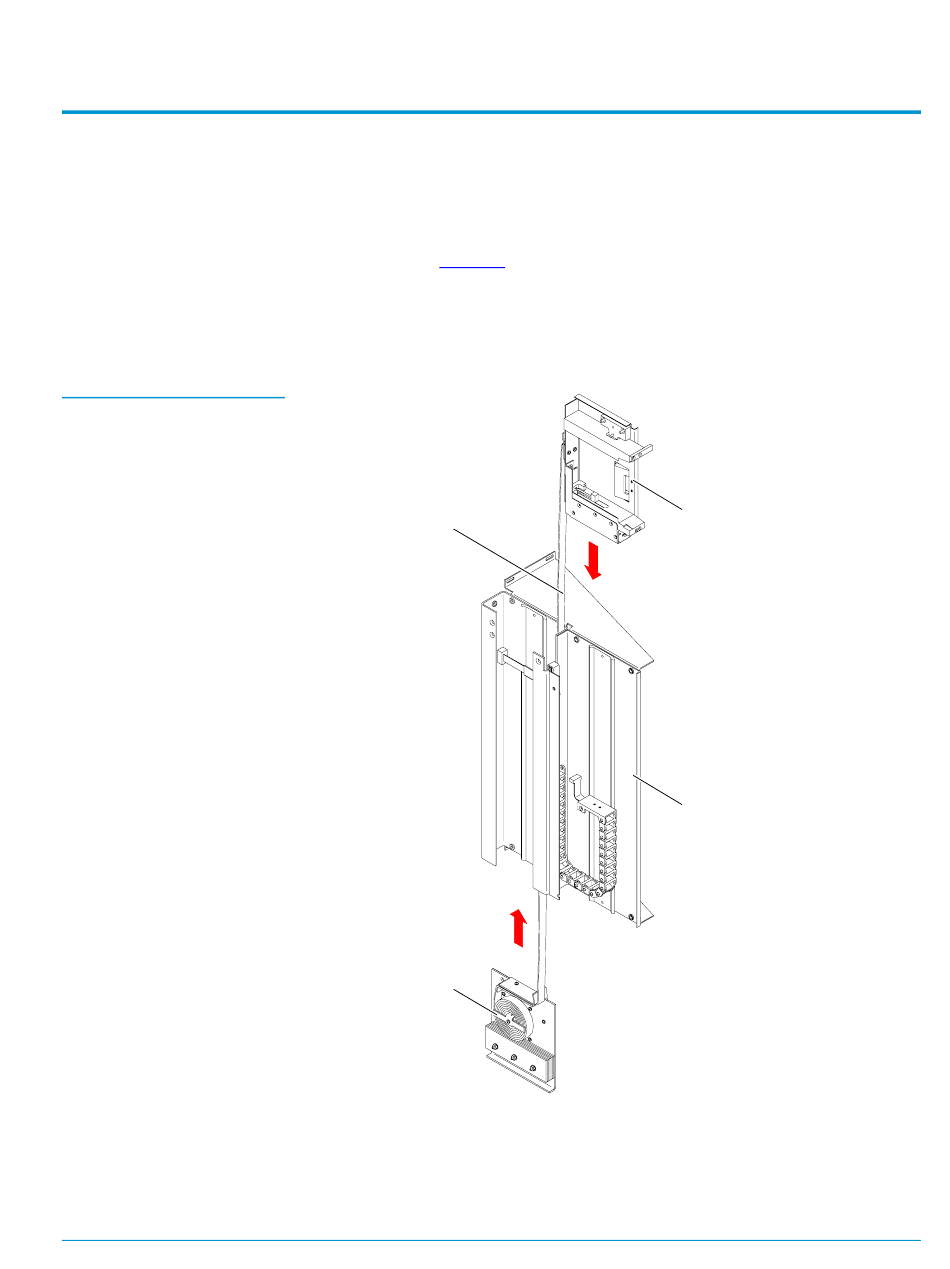

Figure 7 Installing the
Carriage/counterweight
Assembly
Now that the top and bottom mounting tray assemblies are installed,
install the carriage/counterweight assembly on the vertical shuttle
assembly (see figure 7):
Slide the counterweight onto the bottom of the vertical shuttle
1
assembly, engaging the guide wheels of the counterweight with
the vertical rails.
Belt
Counterweight
Route the belt connecting the counterweight and carriage up and
2
over the top of the vertical shuttle assembly, making sure not to
twist the belt.
Installing the Carriage/counterweight Assembly
Quantum|ATL StackLink™ Installation Instructions
Document 6421009-03, Ver. 3, Rel. 0
Carriage
Shuttle extrusion
