Attaching the Shuttle Assembly to the Top and Bottom
Mounting Tray Assemblies

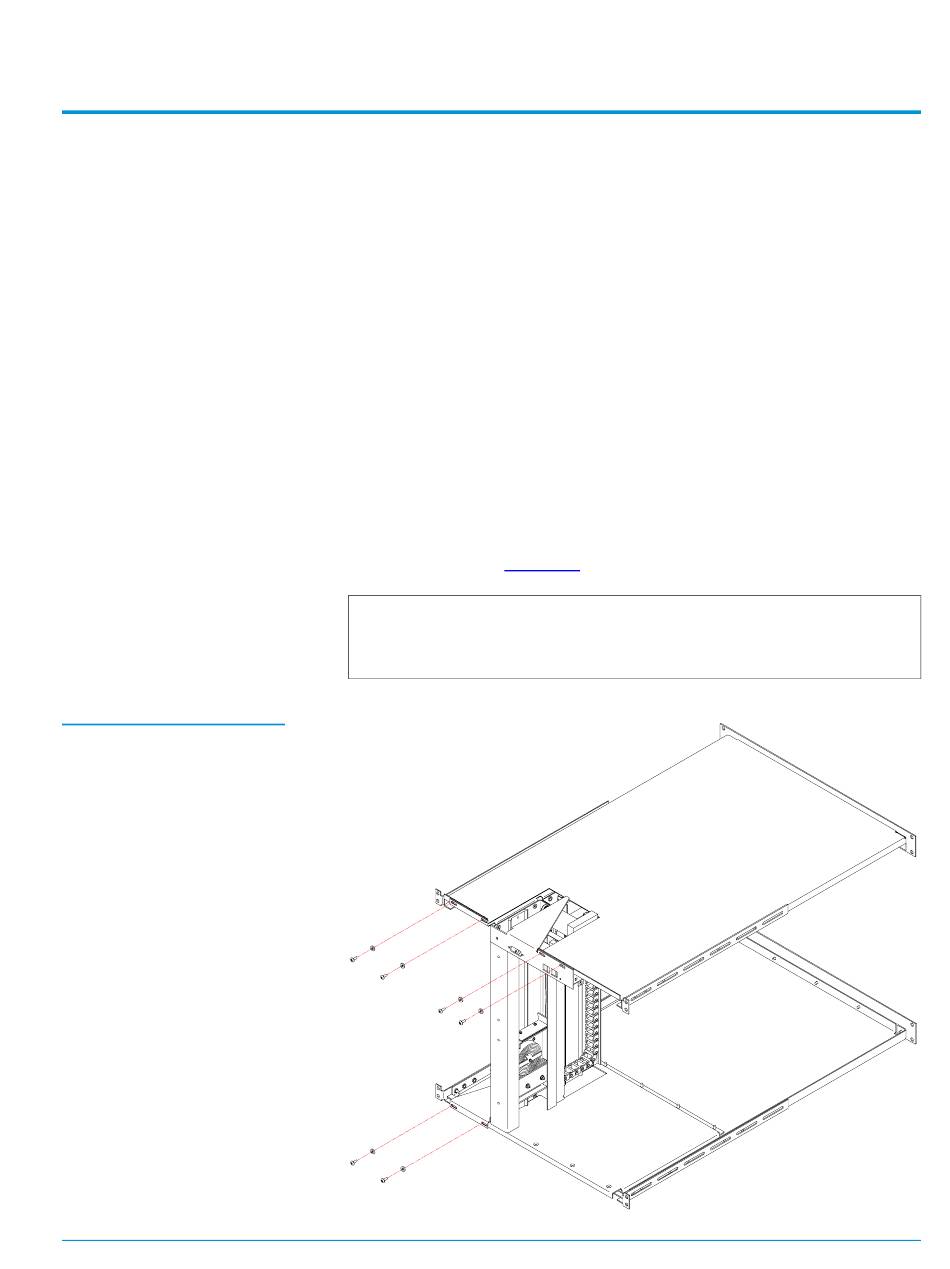

Figure 13 Installing the
Shuttle Assembly
Attaching the Shuttle Assembly to the Top and Bottom Mounting Tray Assemblies
To attach the shuttle assembly to the top and bottom mounting tray
assemblies:
At the rear of the rack, lift the shuttle assembly and position it so
1
the carriage faces forward into the rack.
Rest the lower end of the shuttle assembly on top of the bottom
2
mounting tray assembly.
Ensure that the motor at the top of the shuttle assembly is aligned
3
with the cutout in the top mounting tray assembly.
Slide the shuttle assembly fully into the rack.
4
Secure the shuttle assembly to the upper and lower mounting trays
5
using six screws (YS40097) and washers (YS40402) provided in the
StackLink kit (see
Tighten these screw to finger-tightness only. You will
Note:
finish securing the StackLink after you have installed
libraries in the rack.
(SHOWN OUTSIDE OF RACK)
REAR
Quantum|ATL StackLink™ Installation Instructions
Document 6421009-03, Ver. 3, Rel. 0
figure 13).
November 2001
0
FRONT
