Quantum|ATL StackLink™ Installation Instructions
Document 6421009-03, Ver. 3, Rel. 0
November 2001

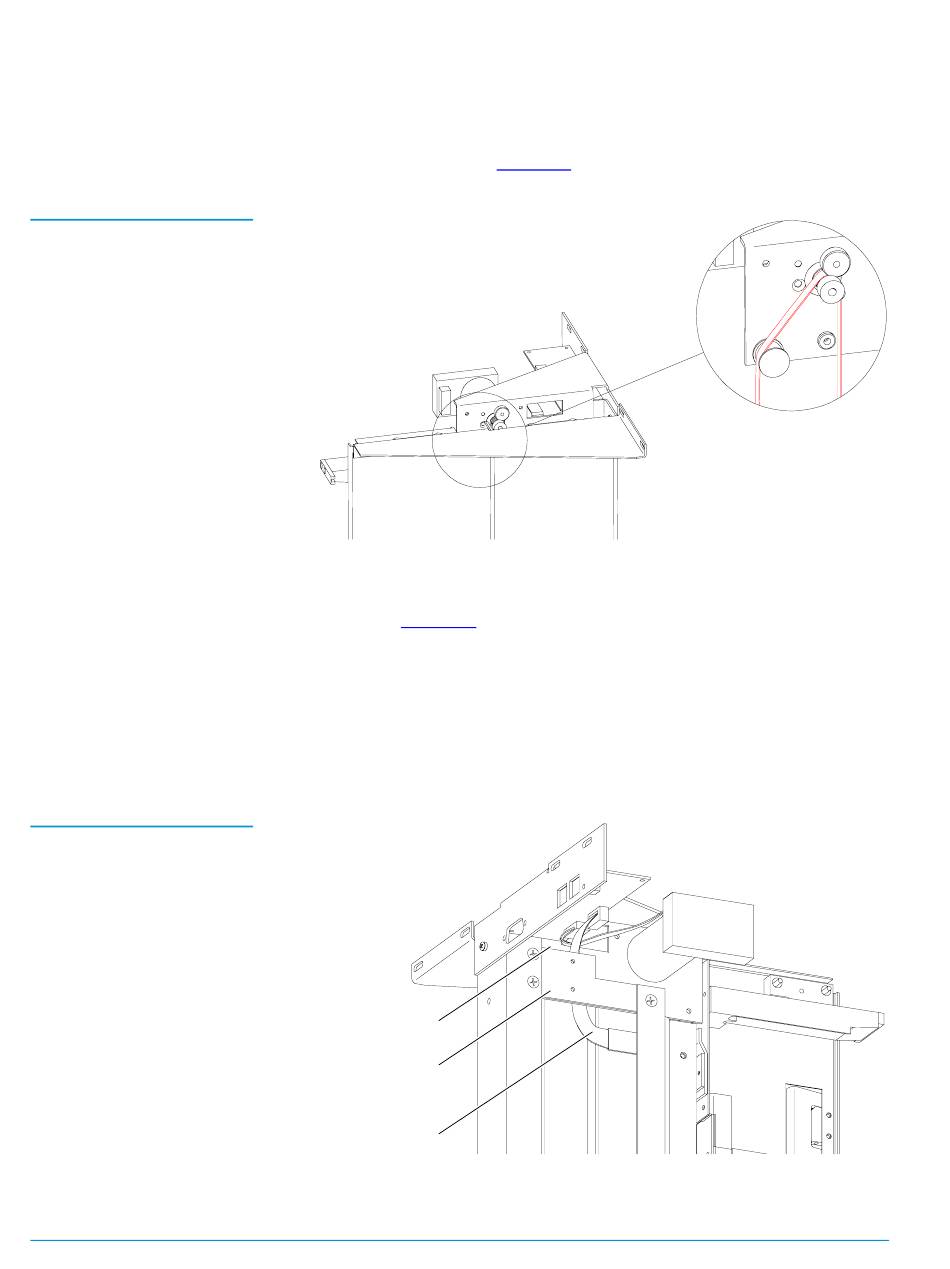

Figure 11 Routing the Belt
Figure 12 Connecting the
Ribbon Cable
14
Route the belt connecting the counterweight and the carriage over
3
the guide roller and past the motor/pulley belt retainer on the
motor assembly (see
Connect the ribbon cable from the vertical shuttle assembly to the
4
socket on the control board at the rear of the motor assembly as
shown in figure 12:
Route the ribbon cable behind the motor plate.
a
Insert the ribbon cable connector through the rectangular hole
b
at the top of the motor plate.
Connect the ribbon cable connector to the socket on the control
c
board.
Rectangular hole
Motor plate
Ribbon cable
Installing the Motor Assembly
figure 11).
