AX10445 Module Series User's Manual
C h a p t e r 1
Introduction
1.1 General Description

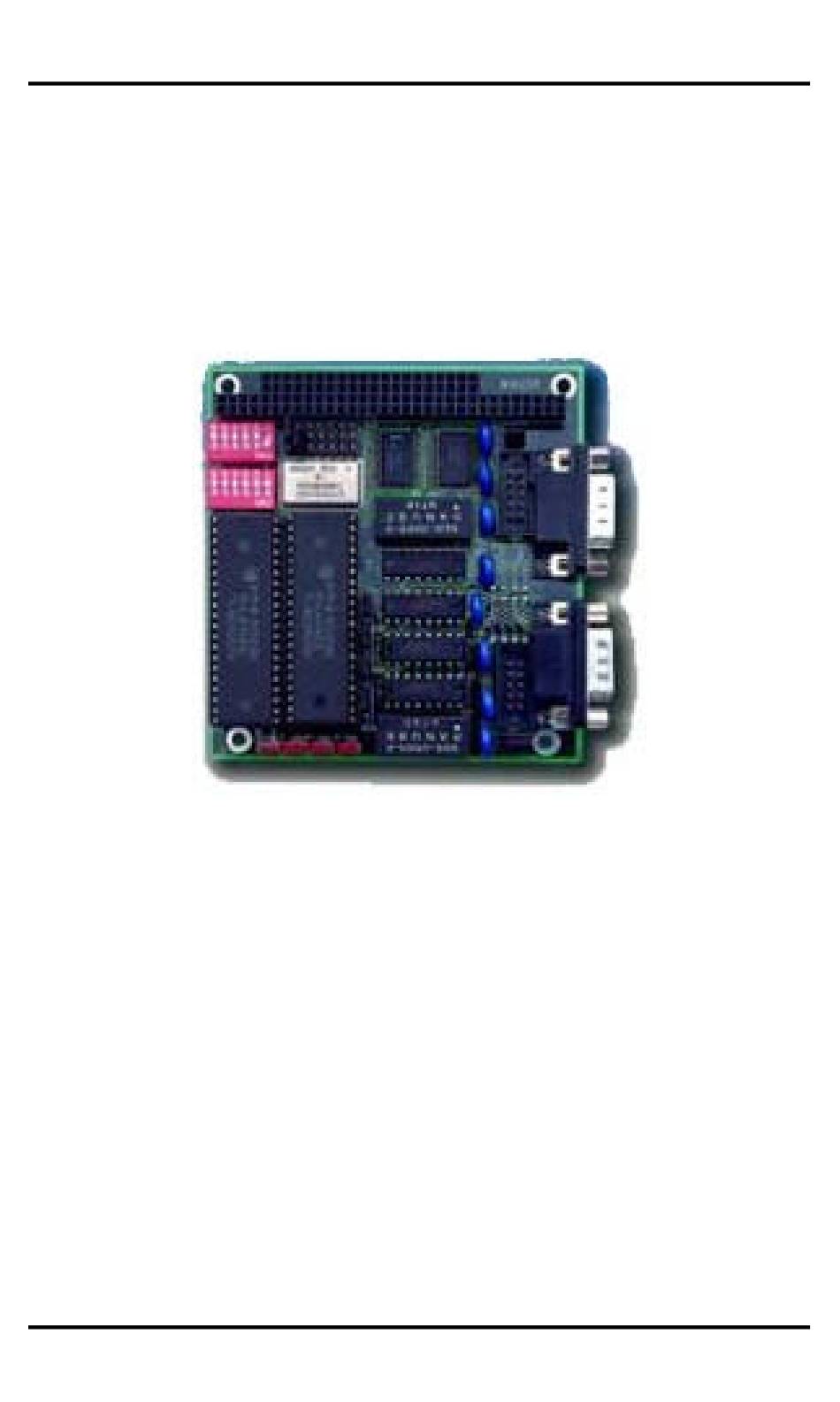

The AX10445, a dual channel asynchronous serial
communication with two RS -422/485 serial interfaces, is a
PC/104 form-factor universal PC/104 bus module that plugs
directly into PC/104 carrier module. The AX10445 Series
permits higher data rates and longer cable lengths of
asynchronous communications than RS -232 do. Complete
with this AX10445, your PC can communicate with other
computers or devices having the same communication
parameters and interface (through the two 9-pin D-type
connectors on the right edge of this module). For protection
against electrical surges, at both channels, there are onboard
varistors connected between each of the differential
communication wire lines.
Introduction
1
