Connector
Connector
Description
CN1
Ethernet 1 Connector
CN2
Ethernet 2 Connector
Ethernet Connectors (CN1 and CN2)
Pin
Signal
Pin
Signal
1
100_LAN_LED
9
MDI1-
2
1000_LAN_LED
10
MDI1+
3
NC
11
GND
4
MDI3-
12
MDI0-
5
MDI3+
13
MDI0+
6
GND
14
NC
LINK_AC
7
MDI2-
15
T
8
MDI2+
16
VDD3

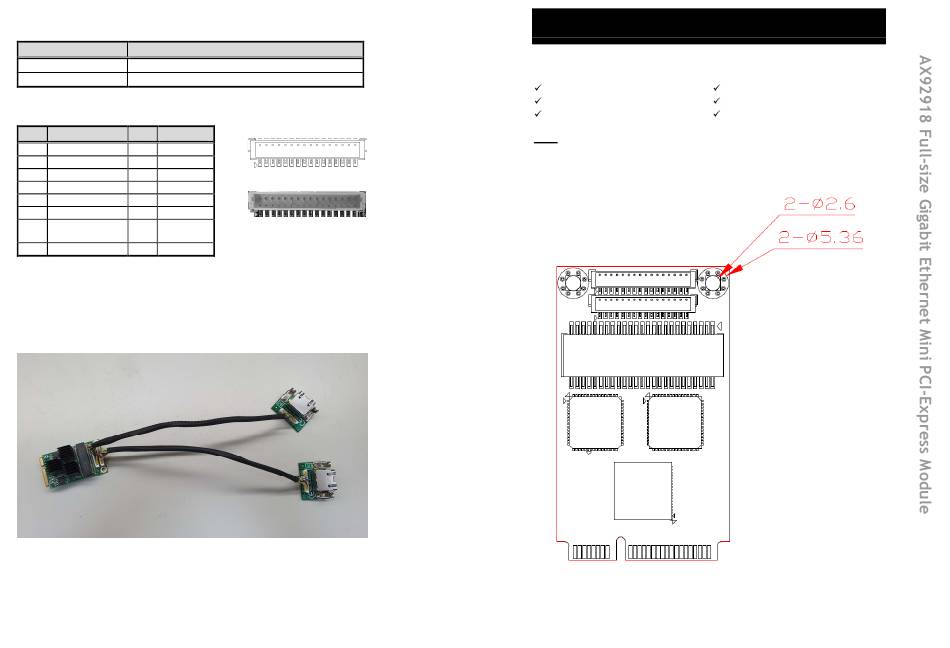

Wiring Connection
Before proceeding with connecting AX92918 with AX93287 board(s),
please make sure the system power is completely off. The AX93287 and
any LAN cable in the accessories pack can be connected to CN1 and CN2
of AX92918 as shown in below image.
AX92918
+ Heatsink
LAN cable
4
1
16
AX93287
AX93287
94192918000E
©
Copyright 2020 Axiomtek Co., Ltd.
Version A1 May 2020
Printed in Taiwan
AX92918 Series Quick Installation Guide
Checklist
AX92918 Board x1
AX93287 Board x2
LAN Cable x2
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Dimensions and Fixing Holes
Top View
94192918000E
©
Copyright 2020 Axiomtek Co., Ltd.
Version A1 May 2020
Printed in Taiwan
Heatsink x3
M2 Screw x2
M3 Screw x4
1
