94193274010E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 July 2014
Printed in Taiwan
AX93274 Quick Installation Guide
Checklist
I/O board x1
Power cable x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Connectors
Connector
Description
CN1
Ethernet Connector
CN2
12V DC Power Out Connector
CN3
5V DC Power Out Connector
LAN1
RJ-45 Ethernet Port

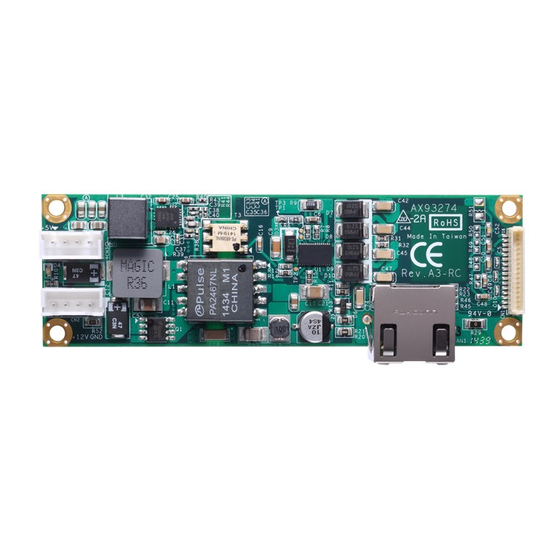

Board Layout
Top View
Side View
94193274010E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 July 2014
Printed in Taiwan
LAN cable x1
Thermal module
x1
1
Advertisement
Related Manuals for AXIOMTEK AX93274
Summary of Contents for AXIOMTEK AX93274
- Page 1 AX93274 Quick Installation Guide Checklist I/O board x1 LAN cable x1 Power cable x1 Thermal module Note: Please contact your local vendors if any damaged or missing items. DO NOT apply power to the board if there is any damaged component.
- Page 2 Assembly Drawing Quick Start AX93274 is suggested to be assembled with Pico-ITX PICOxx1 series. The procedures required to power on PICOXX1 with AX93274 installed: Require a PSE which complies with IEEE802.3at standard. Connect Ethernet Connector CN1 & DC Power out connector CN2/3 to PICOXX1 series via cables.
