AX10445 Module Series User's Manual
A p p e n d i x F

PC/104 Mechanical Specifications

General Description

While the PC and PC/AT architectures have become
extremely popular in both general purpose (desktop) and
dedicated (non-desktop) applications, its use in embedded
microcomputer applications has been limited due to the large
size of standard PC and PC/AT motherboards and ex pansion
cards.
This document supplies the mechanical and electrical
specifications for a compact version of the PC/AT bus,
optimized for the unique requirements of embedded systems
applications. The specification is herein referred to as
"PC/104", based on the 104 signal contacts on the two bus
connectors (64 pins on CN10 plus 40 pins on CN11).

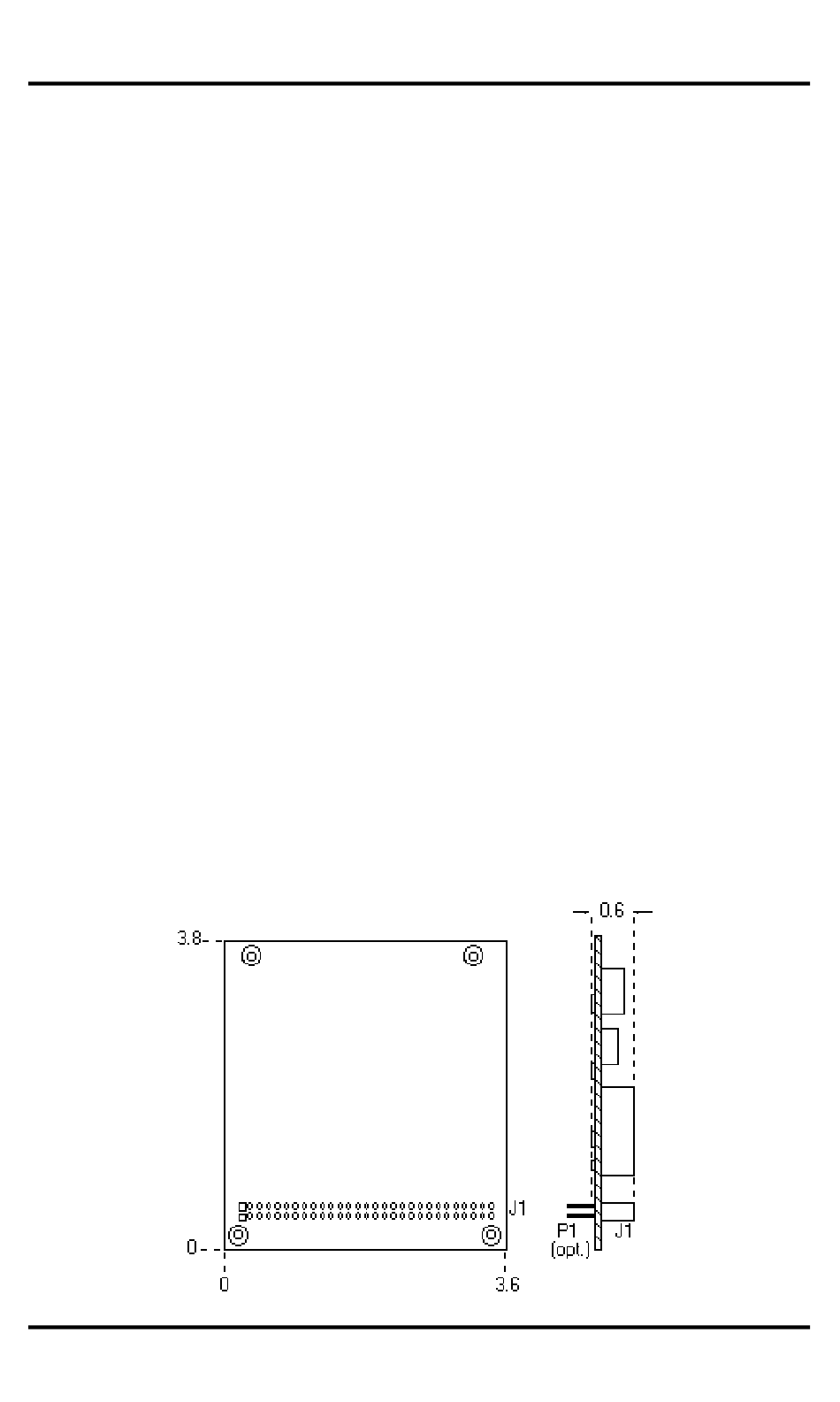

Module Dimensions

PC/104 modules can be of two bus types, 8-bit and 16-bit.
These correspond to the PC and PC/AT buses, respectively.
The AX10445 A+/B+ is a 16-bit PC/104 module.
PC/104 Mechanical Specifications
45
