AXIOMTEK AX93295 Quick Installation Manual

Zio module

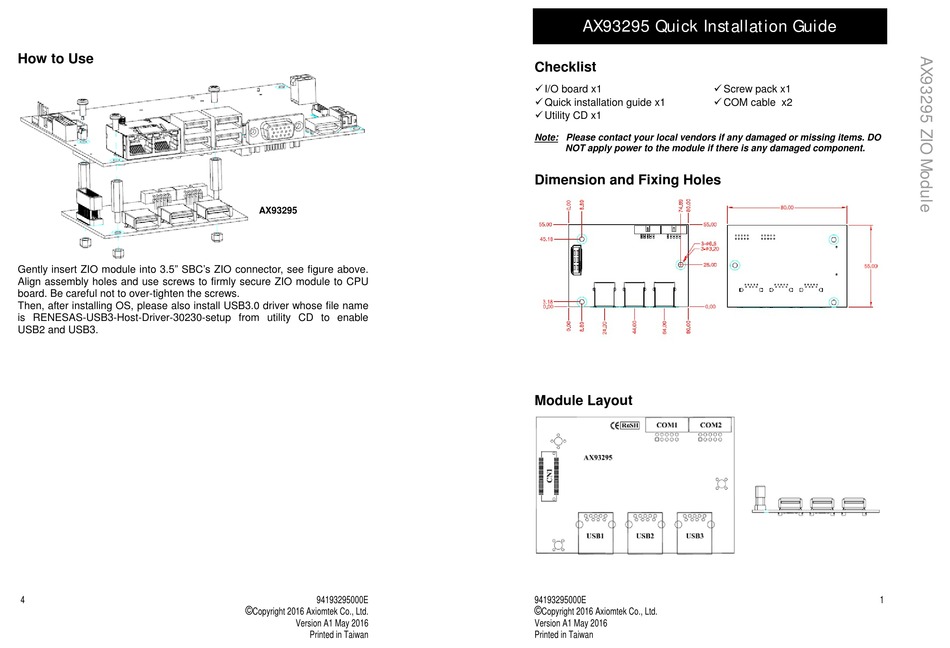

How to Use

Gently insert ZIO module into 3.5" SBC's ZIO connector, see figure above.

Align assembly holes and use screws to firmly secure ZIO module to CPU

board. Be careful not to over-tighten the screws.

Then, after installing OS, please also install USB3.0 driver whose file name

is RENESAS-USB3-Host-Driver-30230-setup from utility CD to enable

USB2 and USB3.

AX93295

94193295000E

Version A1 May 2016

Printed in Taiwan

AX93295 Quick Installation Guide

 I/O board x1

 Screw pack x1

 Quick installation guide x1

 COM cable x2

 Utility CD x1

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the module if there is any damaged component.

94193295000E

Version A1 May 2016

Printed in Taiwan

Table of Contents

Do you have a question about the AX93295 and is the answer not in the manual?

Page 1 AX93295 Quick Installation Guide How to Use Checklist  I/O board x1  Screw pack x1  Quick installation guide x1  COM cable x2  Utility CD x1 Note: Please contact your local vendors if any damaged or missing items. DO NOT apply power to the module if there is any damaged component.
Page 2 No Use USB_Data0+ No Use No Use No Use SSRX0- SSRX0+ SSTX0- SSTX0+ 94193295000E 94193295000E © © Copyright 2016 Axiomtek Co., Ltd. Copyright 2016 Axiomtek Co., Ltd. Version A1 May 2016 Version A1 May 2016 Printed in Taiwan Printed in Taiwan...
