SIM5218E Hardware Design

6.5 View of the SIM5218E

6.6 PIN assignment of board-to-board connector of SIM5218E

Table 40 : Connection diagrams
Pin No Define
1 VBAT
2 VBAT
3 VBAT
4 GND
5 GND
6 UART_TXD
7 UART_CTS
8 UART_DCD
9 USB_VBUS
10 GPIO1
11 VRTC
12 USIM_CLK
13 USIM_RESET
14 CAM_D0
15 CAM_D2
16 CAM_D4
17 CAM_D6
18 CAM_D8
19 CAM_HSYNC
20 GND
SIM5218E_HD_V1.03
Top View

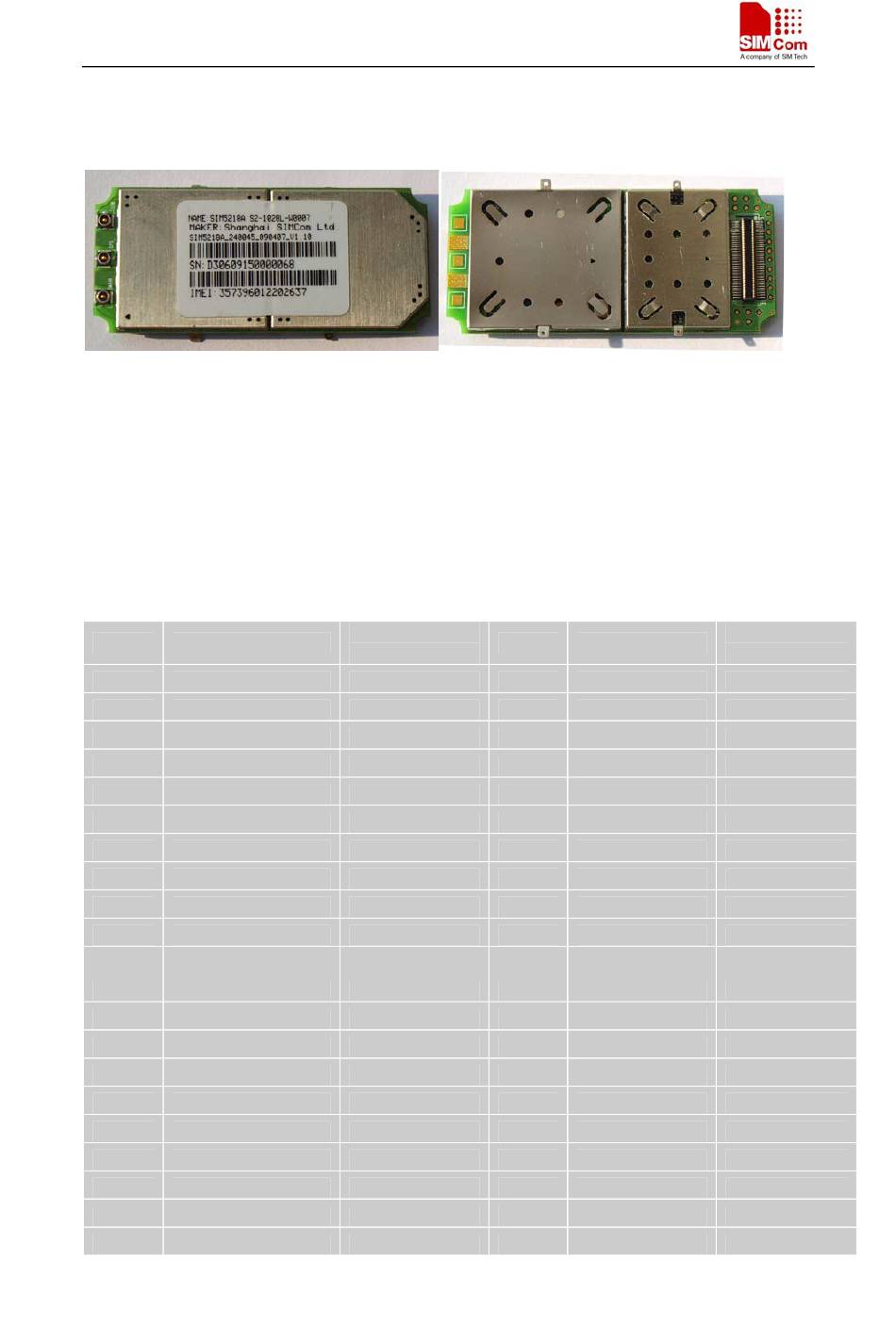

Figure 42: Top and Bottom View of SIM5218E
Measure
without usage
VBAT
VBAT
VBAT
GND
GND
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
GND
64
Bottom View
Pin No Define
70 VBAT
69 VBAT
68 VBAT
67 GND
66 GND
65 GPIO0
64 UART_RXD
63 UART_RTS
62 UART_DTR
61 UART_RI
60 USB_D_P
59 USB_D_M
58 GND
57 V_USIM
56 USIM_DATA
55 CAM_D1
54 CAM_D3
53 CAM_D5
52 CAM_D7
51 CAM_D9
Measure
without usage
VBAT
VBAT
VBAT
GND
GND
NC
NC(See Note)
NC
NC
NC
NC
NC
GND
NC
NC(See Note)
NC
NC
NC
NC
NC
