SIM5218E Hardware Design

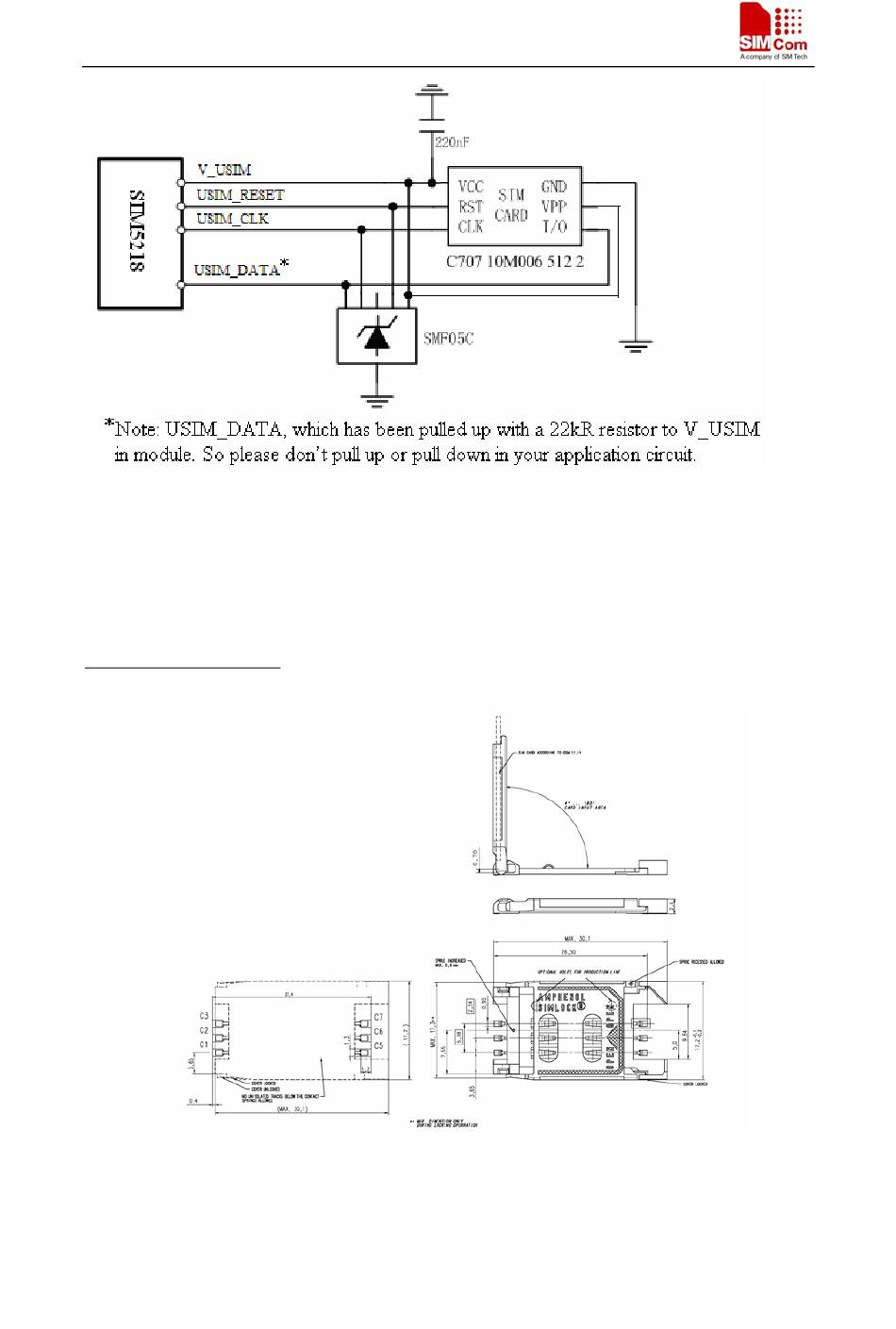

Figure 20: USIM interface reference circuit with 6 pins USIM card
3.9.2 Design considerations for USIM card holder
For 6 pins USIM card, we recommend to use Amphenol C707 10M006 512 2 .You can visit
http://www.amphenol.com for more information about the holder.
Figure 21: Amphenol C707 10M006 512 2 SIM card holder
39
SIM5218E_HD_V1.03
11.06.2009
