6.4 RF connector and adapter cable

The RF connector in module side is Murata Company RF Connectors MM9329-2700, it makes a
pair with Murata Company RF cable MXTK88TK2000. It has high performance with wide
frequency range, surface mountable and reflow solderable. Following is parameter. Certainly you
can visit http://www.murata.com/ for more information.

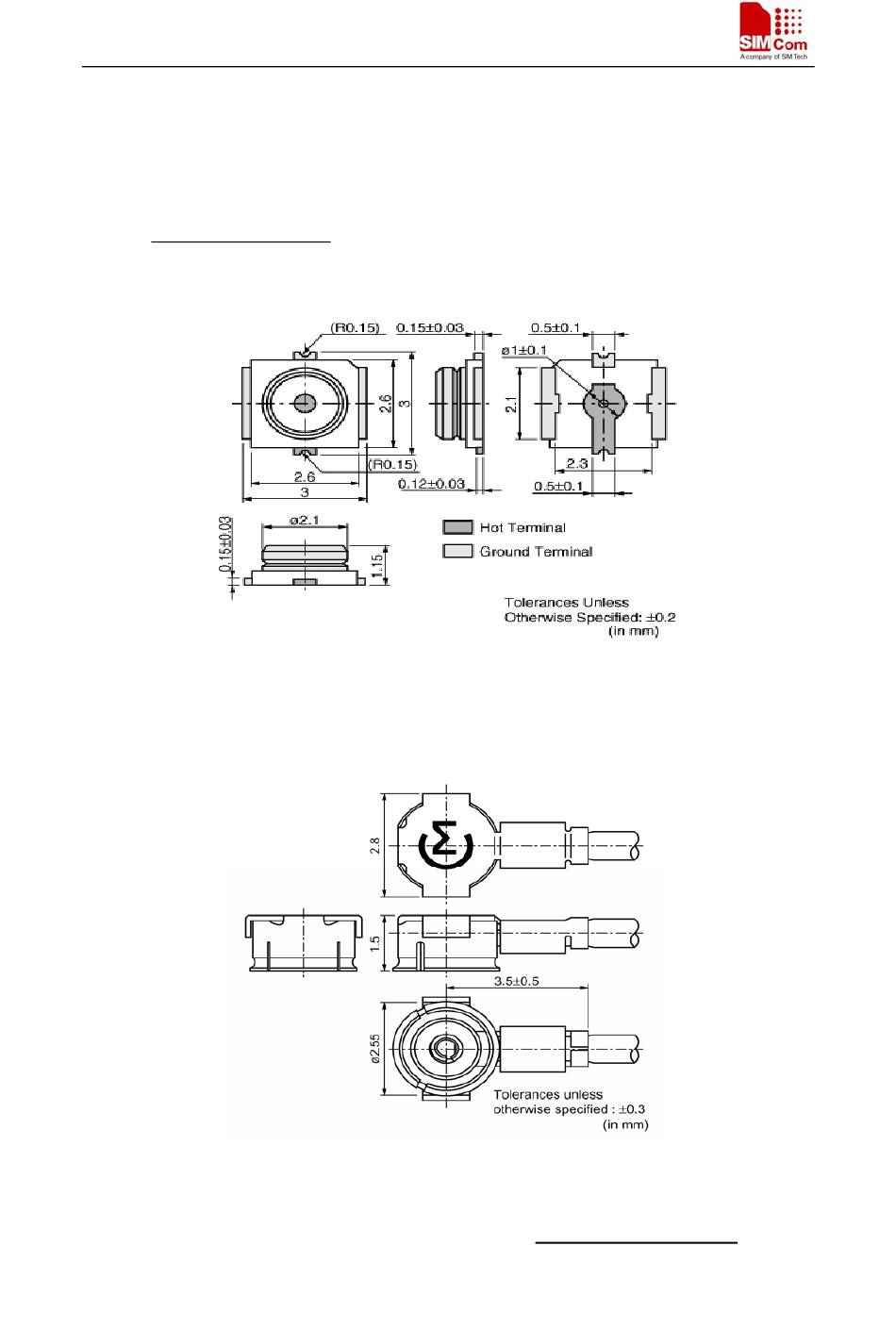

Figure 40: RF connector MM9329-2700
Figure 41: RF adapter cable MXTK88TK2000
For more information about the connector, please visit http://www.murata.com/
