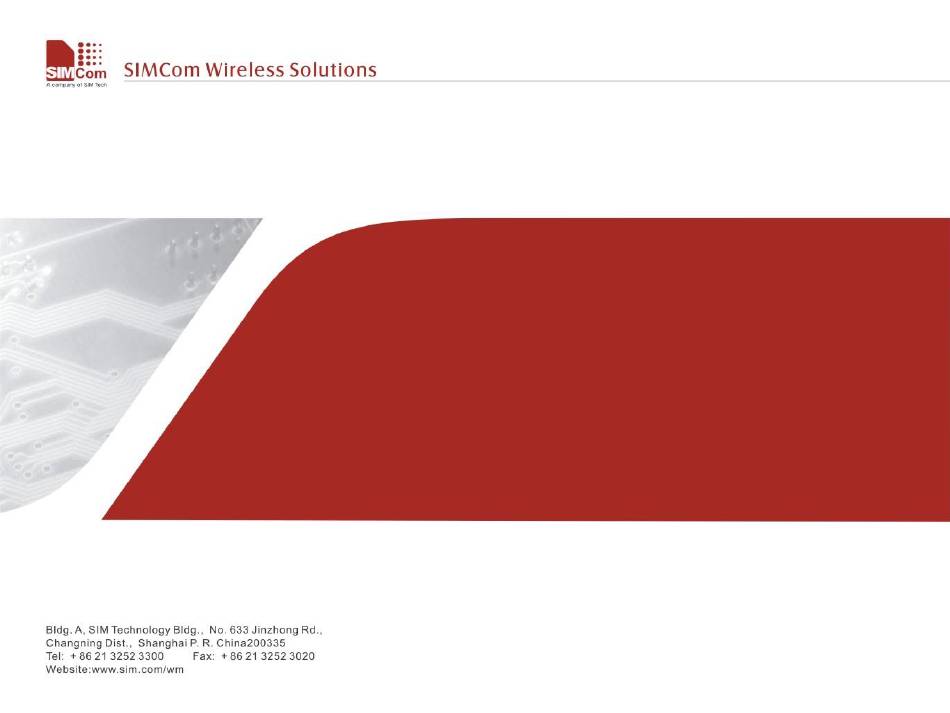

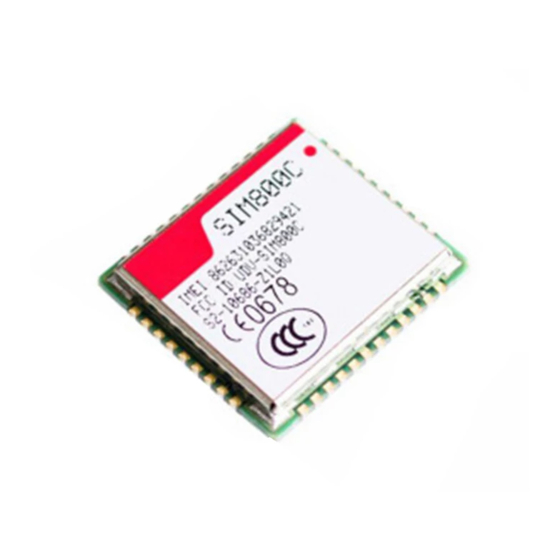

- Page 1 SIM800 series Bluetooth Application Guide...
- Page 2 SIM800 series Bluetooth Specifications Bluetooth Version: 3.0 + EDR Channel Spacing: 1MHz Number of RF channels: 79 Power Class: 1.5 Operation Mode (Rx/Tx): Time Division multiplex either transmit or receive frequency hopping after one Rx/Tx cycle ...
- Page 3 SIM800 series BT profile support Compliant with BT3.0+EDR Under Developing BT_FTC_Profile SIM800H BT_FTS_Profile BT_SIM_Profile BT_DIALER_Profile BT_PBAPC_Profile Supported BT profiles (B02_BT FW) BT_MAPC_Profile Serial Port Profile (SPP) BT_Audio_VIA_SCO Hands-Free Profile (HFP) BT_FM_RADIO_VIA_SCO Advanced Audio Distribution Profile (A2DP) Object Push Profile (OPP)
- Page 4 1. Pair an BT device AT+BTPOWER=1 AT+BTPAIR=0,1 //Active pair one BT device AT+BTHOST? +BTPAIRING: "MK-ZHANGKUN",00:1a:7d:da:71:0e,674048 +BTHOST: Antony SIM800H,31:03:bc:17:62:60 AT+BTPAIR=1,1 AT+BTSTATUS? +BTPAIR: 1,"MK-ZHANGKUN",00:1a:7d:da:71:0e +BTSTATUS: 5 AT+BTSTATUS? +BTSTATUS: 5 AT+BTSCAN=1,20 P: 1,"MK-ZHANGKUN",00:1a:7d:da:71:0e +BTPAIRING: "Coolpad 7295",00:16:6d:e1:ae:ae,478391 +BTSCAN: 0,1,"MK-ZHANGKUN",00:1a:7d:da:71:0e AT+BTPAIR=1,1 //Passive pair one BT device +BTSCAN: 0,2,"MK-DONGBINGQUAN",00:1a:7d:da:71:10 +BTSCAN: 0,3,"MK-SHENJIANGUO",c0:18:85:db:32:0d +BTPAIR: 2,"Coolpad 7295",00:16:6d:e1:ae:ae...
- Page 5 2. Get the supported BT profiles of paired device AT+BTSTATUS? +BTSTATUS: 5 P: 1,"MK-ZHANGKUN",00:1a:7d:da:71:0e P: 2,"Coolpad 7295",00:16:6d:e1:ae:ae C: 1,"Coolpad 7295",00:16:6d:e1:ae:ae,"HFP(AG)" C: 2,"Coolpad 7295",00:16:6d:e1:ae:ae,"A2DP" C: 3,"Coolpad 7295",00:16:6d:e1:ae:ae,"AVRCP" //Get BT device 1’s profiles AT+BTGETPROF=1 +BTGETPROF: 1,"A2DP(Source)" +BTGETPROF: 2,"HFP(AG)" +BTGETPROF: 8,"AVRCP(Target)" +BTGETPROF: 3,"A2DP" +BTGETPROF: 4,"SPP"...
- Page 6 3. Connect service base on available BT profiles AT+BTSTATUS? +BTSTATUS: 5 P: 1,"MK-ZHANGKUN",00:1a:7d:da:71:0e P: 2,"Coolpad 7295",00:16:6d:e1:ae:ae C: 1,"Coolpad 7295",00:16:6d:e1:ae:ae,"HFP(AG)" C: 2,"Coolpad 7295",00:16:6d:e1:ae:ae,"A2DP" C: 3,"Coolpad 7295",00:16:6d:e1:ae:ae,"AVRCP" AT+BTSTATUS? +BTSTATUS: 5 AT+BTGETPROF=1 P: 1,"MK-ZHANGKUN",00:1a:7d:da:71:0e P: 2,"Coolpad 7295",00:16:6d:e1:ae:ae +BTGETPROF: 1,"A2DP(Source)" C: 1,"Coolpad 7295",00:16:6d:e1:ae:ae,"HFP(AG)" +BTGETPROF: 2,"HFP(AG)" C: 2,"Coolpad 7295",00:16:6d:e1:ae:ae,"A2DP"...
- Page 7 4. SIM800(H) acts as BT earphone to originate/answer voice call_HFP(AG) AT+BTCLCC? AT+BTSTATUS? +BTSTATUS: 5 P: 1,"MK-ZHANGKUN",00:1a:7d:da:71:0e +BTCLCC: 1,0,0,0,0,"18516118168",129 P: 2,"Coolpad 7295",00:16:6d:e1:ae:ae C: 1,"Coolpad 7295",00:16:6d:e1:ae:ae,"A2DP" +BTCIND: 1,1,0,0,0,5,0,4 C: 2,"Coolpad 7295",00:16:6d:e1:ae:ae,"AVRCP" C: 3,"Coolpad 7295",00:16:6d:e1:ae:ae,"HFP(AG)" +BTCIND: 1,1,0,1,0,5,0,4 BTRING AT+BTATD=18516118168 //Originate a voice call BTRING AT+BTCIND=1 BTRING...
- Page 8 5. SIM800(H) acts as BT earphone for media playing_A2DP AT+BTSTATUS? +BTSTATUS: 5 P: 1,"MK-ZHANGKUN",00:1a:7d:da:71:0e P: 2,"Coolpad 7295",00:16:6d:e1:ae:ae C: 1,"Coolpad 7295",00:16:6d:e1:ae:ae,"A2DP" C: 2,"Coolpad 7295",00:16:6d:e1:ae:ae,"AVRCP" After this, user can paly music at the device “Coolpad7295” side, and user can hear the music at the module handset side...
- Page 9 6. SIM800(H) acts as BT earphone for media playing control_AVRCP AT+BTSTATUS? +BTSTATUS: 5 P: 1,"MK-ZHANGKUN",00:1a:7d:da:71:0e P: 2,"Coolpad 7295",00:16:6d:e1:ae:ae C: 1,"Coolpad 7295",00:16:6d:e1:ae:ae,"A2DP" C: 2,"Coolpad 7295",00:16:6d:e1:ae:ae,"AVRCP" After this, user can play music at the device “Coolpad7295” side, and user can hear the music at the module handset side Note: AVRCP is base on A2DP AT+BTAVRCOP=0 //Stop playing music...
- Page 10 7. SIM800(H) acts as BT Mobile phone connected to a BT earphone_A2DP AT+BTSTATUS? +BTSTATUS: 5 P: 1,"LBH505",50:5b:0b:0a:10:32 C: 1,"LBH505",50:5b:0b:0a:10:32,"A2DP“ //Start to record audio in “.amr” format, file “id” is 1 AT+CREC=1,1,0 AT+CREC=2 //Stop recording +CREC: 2,1,0,8,13382 AT+FSLS=C:\ //List C directory files User\ REC\ //Found the recorded “.amr”...
- Page 11 8. AT Channel Mode between two SIM800(H)_SPP AT+BTSTATUS? +BTSTATUS: 5 AT+BTSPPGET=0 P: 1,"SIM800H_ZHANGPING",2d:bf:00:a9:62:60 Note: AT+BTSPPSEND AT+BTGETPROF=1 If the first data packet sent from BT client is not “SIMCOMSPPFORAPP”, the SPP > AT+CREG? +BTGETPROF: 10,"PBAP" connection is called “AT Channel Mode”. +BTGETPROF: 1,"A2DP(Source)"...
- Page 12 9. Data Exchang Mode_SPP AT+BTSTATUS? AT+BTSTATUS? +BTSTATUS: 5 P: 1,"SIM800H_ZHANGPING",2d:bf:00:a9:62:60 +BTSTATUS: 5 C: 1,"SIM800H_ZHANGPING",2d:bf:00:a9:62:60,"SPP" P: 1,"SIM800H_Yanfeng",30:5a:72:1f:62:60 C: 1,"SIM800H_Yanfeng",30:5a:72:1f:62:60,"SPP" AT+BTSPPSEND +BTSPPDATA: 1,17,SIMCOMSPPFORAPP > SIMCOMSPPFORAPP SEND OK +BTSPPDATA: 1,10,HELLOSERVER AT+BTSPPSEND=11 AT+BTSPPSEND=11 > HELLOSERVER > HELLOCLIENT SEND OK SEND OK +BTSPPDATA: 1,11,HELLOCLIENT...
- Page 13 10. Send/Receive file to/from another BT device +BTOPPPUSHING: "SIM800H_2","2.txt" AT+BTSTATUS? AT+BTOPPACPT=1 +BTSTATUS: 5 P: 1,"SIM800H_1",0e:c5:35:4d:62:60 +BTOPPPUSH: 1 AT+FSLS=C:\user\btreceived\ AT+FSLS=C:\ 2.txt User\ Dup(01)2.txt @pbap\ Dup(02)2.txt @bt\ 2.txt AT+BTOPPPUSH=1,C:\2.txt +BTOPPPUSH: 1...
- Page 14 11. Sync remote Phonebook_PBAP AT+BTSTATUS? AT+FSLS=C:\USER\ +BTSTATUS: 5 P: 1,"SIM800H_Jimmy",3c:fd:5c:48:62:60 P: 2,"Jumping",22:61:d0:df:62:60 C: 1,"SIM800H_Jimmy",3c:fd:5c:48:62:60,"PBAP(C)" AT+FSLS=C:\USER\BT\ remotePb6.txt AT+BTPBSYNC=0,1,0 remotePb1.txt AT+BTPBSYNC=1,6,0,1,1 +BTPBSYNC: 0,1 AT+BTPBSYNC=0,6,0 +BTPBSYNC: 1,0,2,0 AT+CPBS=“ME" +BTPBSYNC: 0,0,11367 AT+BTPBSYNC=0,1,0 AT+CPBS? +CPBS: "ME",2,100 +BTPBSYNC: 0,0,113 AT+FSLS=C:\ User\ AT+CPBR=1,10 @pbap\ @bt\ +CPBR: 1,"13621682958",129,"ANTONY" TEST.TXT +CPBR: 2,"13917476267",129,"LIGHT"...
