SIM5218E Hardware Design
When you use a YUV output sensor, you should connect the output data0~data7 to SIM5218E out
PIN CAM_D2~CAM_D9.
The camera module interface consists of the following:
■ 10 bit data bus for the pixel data information
■ Horizontal and vertical synchronization signals
■ 2 wire I2C bus as a control path between the SIM5218E module device and the camera
module

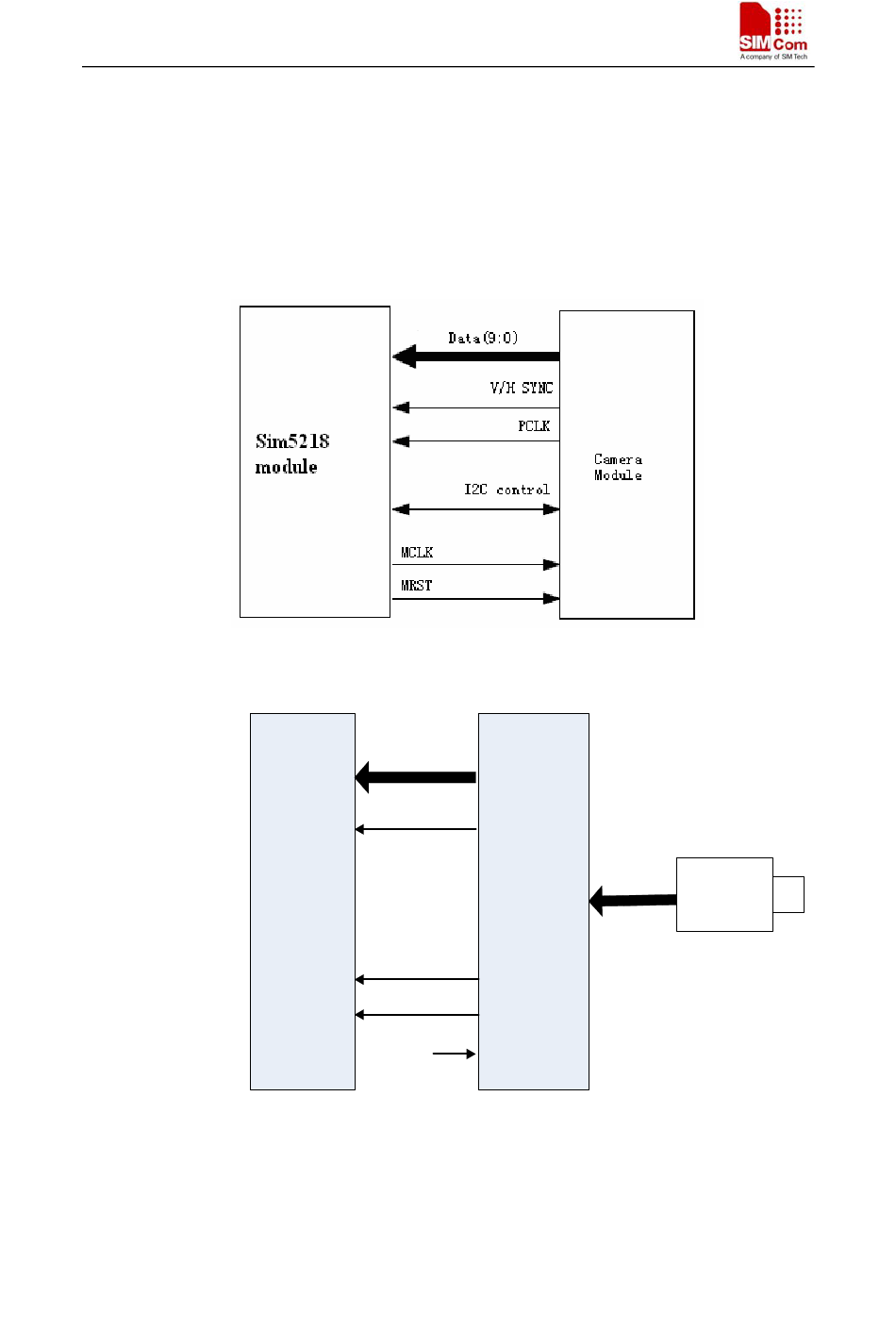

Figure 25： Camera module interface
Figure 26： Camera module interface with analog sensor
The following table is the pin definition.
