Charging the Battery Pack

You can charge the battery pack while it is installed in the DT-X400 using the optional USB
cradle, Ethernet cradle or multiple battery charger. Check charging status LED to confi rm
DT-X400 charging status.
You can also use the USB cradle, Ethernet cradle or dual battery charger to charge the battery pack.

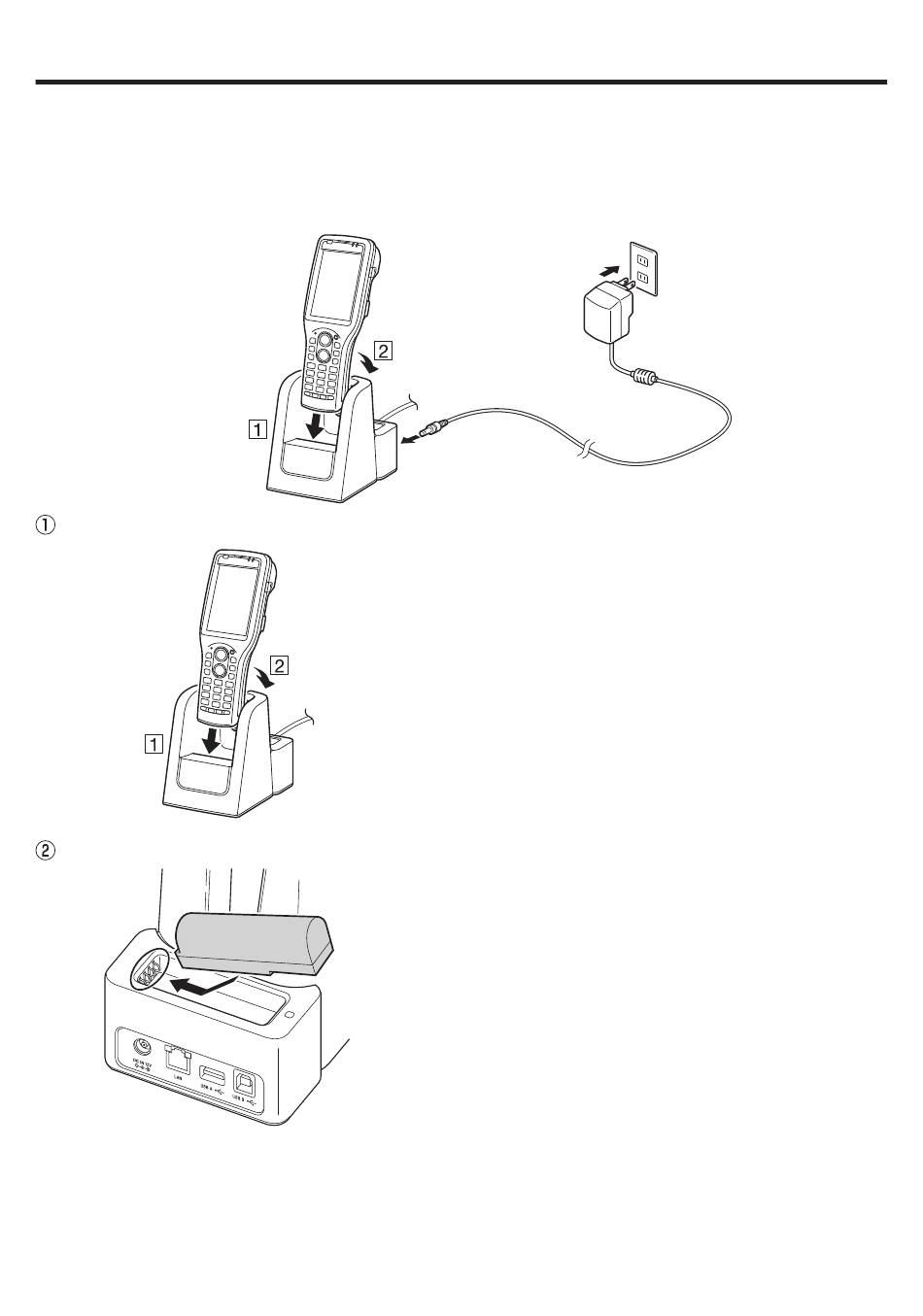

USB Cradle, Ethernet Cradle
Charging the battery pack installed in the DT-X400
Charging the battery pack
Align
Precautions for Use
• Take care not to trap objects such as the strap in the cradle.
• The power/data communication terminal and the battery pack power contacts
should be cleaned periodically using an implement such as a dry cotton bud.
Soiling or dust buildup could cause connection problems.
E-20
AC Adapter
 AD-S50400A
DT-X400 Charging status LED display
Orange:
Charging
Green:
Charging complete
Red:
Standby due to battery pack error or
because the ambient temperature is
outside the charging temperature range.
(Charging begins when the temperature
returns to the charging temperature range.)
Orange fl ashing: Charging (DT-X400 cannot start up
because the charge remaining in the
battery pack is too low. Wait until the
charging status LED stops fl ashing and
lights orange.)
• Slide the battery pack into the recess in the cradle
and so that the battery pack terminals are aligned
with the battery pack power contacts.
Cradle charging status LED display
Red:
Green:
Red/green alternate fl ashing: Standby because the battery
Charging
Charging complete
pack is faulty, is installed
incorrectly or is outside the
charging temperature range
(Charging begins when
temperature returns to the
charging temperature range)
