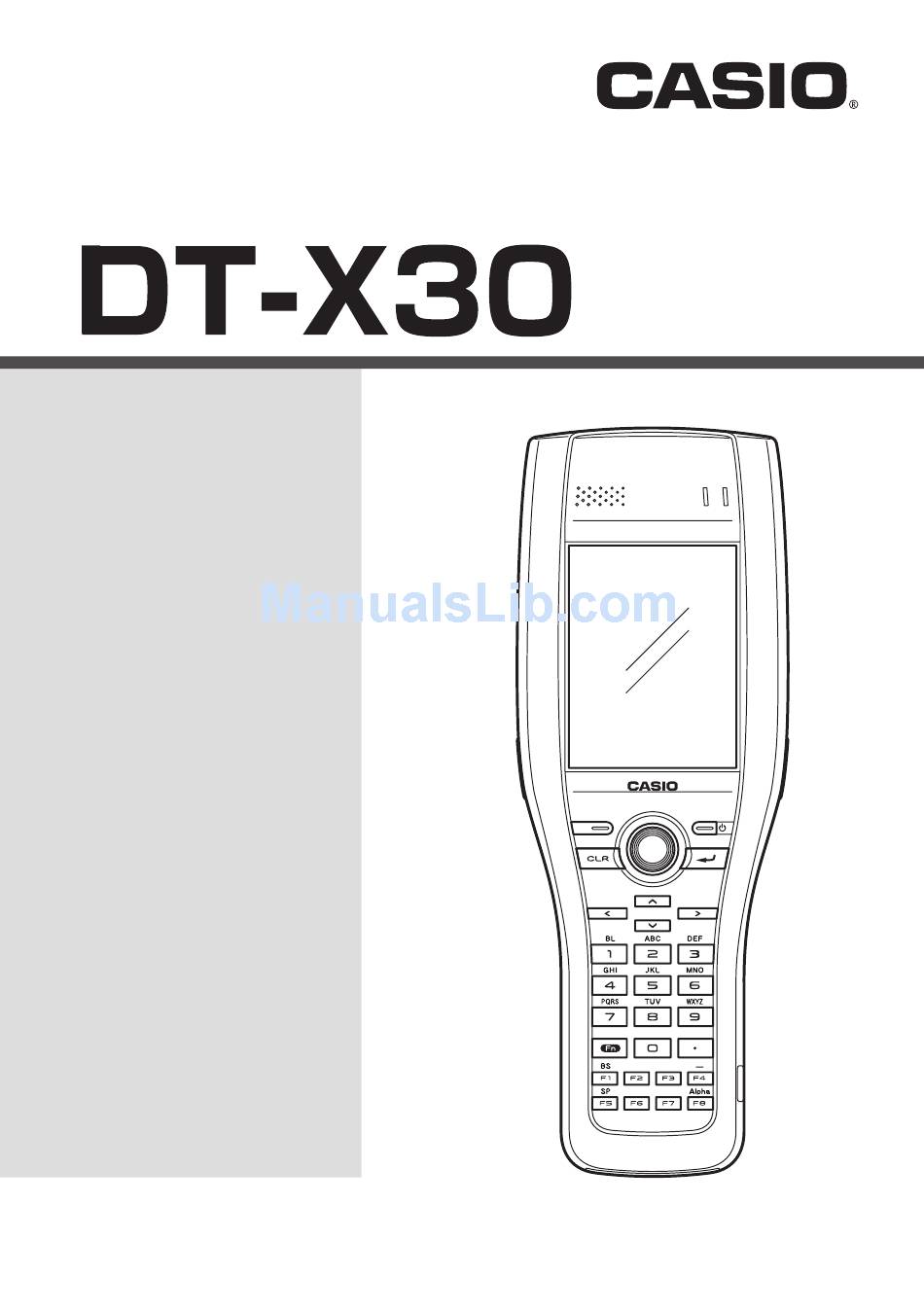

Casio DT-X30 Series User Manual

Handheld terminal.
Hide thumbs

Advertisement

E
Handheld Terminal
Series
User's Guide
Be sure to read "Safety
Precautions" inside this
guide before trying to use
your Handheld Terminal.

Advertisement

   Summary of Contents for Casio DT-X30 Series

  • Page 1

    Handheld Terminal Series User’s Guide Be sure to read “Safety Precautions” inside this guide before trying to use your Handheld Terminal.

  • Page 2

    Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Information in this document is subject to change without advance notice. CASIO Computer Co., Ltd. makes no representations or warranties with respect to the contents or use of this manual and specifi...

  • Page 3: Table Of Contents

    Contents Safety Precautions ..................E-3 Operating Precautions ..................E-9 Important ......................E-9 After Service ......................E-9 Regulatory Information ................E-10 Handheld Terminal System Confi guration ..........E-13 General Guide ....................E-15 Loading and Removing the Battery Pack ..........E-18 Loading ......................E-19 Removing ......................E-20 Charging the Battery Pack .................E-21 USB Cradle/Ethernet Cradle/Cradle-type Battery Charger .......

  • Page 4

    Resetting the Handheld Terminal ...............E-37 DT-X30 Specifi cations .................E-38 Using the USB Cradle (HA-G60IO) .............E-42 General Guide ....................E-42 Specifi cations .....................E-44 Using the Ethernet Cradle (HA-G62IO) ............E-45 General Guide ....................E-45 Specifi cations ..................... E-47 Using the Cradle-type Battery Charger (HA-G30CHG) ......E-48 General Guide ....................

  • Page 5: Safety Precautions

    Safety Precautions Congratulations upon your selection of this CASIO product. Be sure to read the following Safety Precautions before trying to use it for the fi rst time. Your neglect or avoidance of the warning and caution statements in the subsequent pages causes the danger of fi...

  • Page 6: Lcd Screen

    Warning Dust and Moisture Though the Handheld Terminal is dust and water splash resistant, its options including the battery pack are not. Keep loose metal objects and containers fi lled with liquid away from your Handheld Terminal and the options. Also, never handle the Handheld Terminal and the options while your hands are wet.

  • Page 7

    Warning Avoiding Traffi c Accidents Never use your Car Mounted-type Battery Charger while operating a motor vehicle. Park your vehicle in a safe place before performing any operation. Never locate the Car Mounted-type Battery Charger where it might interfere with proper operation of the vehicle. Locate connecting cables as instructed by the manual, avoiding locations that can interfere with driving operations.

  • Page 8

    Immediately rinse it off with clean tap water and then consult a physician. Caution Replace only with the same type of battery pack recommended by CASIO. Dispose of used battery packs according to the local regulation. Keep the battery pack out of the reach of small children.

  • Page 9

    Power Supply / AC Adaptor Warning Do not use the Handheld Terminal at a voltage other than the specifi ed voltage. Also, do not connect the Handheld Terminal to a multi-plug power strip. Never modify, sharply bend, twist, or pull on the power cord. Never use a detergent to clean AC adaptor and its power cable, especially on the plug and the jack.

  • Page 10

    Backup Copies of All Important Data Caution Note that CASIO Computer Co., Ltd. shall not be held liable to you or any third party for any damages or loss caused by deletion or corruption of data due to use of the Handheld Terminal, malfunction or repair of the Handheld Terminal or its peripherals, or due to the batteries going dead.

  • Page 11: Operating Precautions

    Operating Precautions Your Handheld Terminal and its options are precision. Improper operation or rough handling can cause problems with data storage and other problems. Note and observe the following precautions to ensure proper operation. Do not leave dead battery pack in the Handheld Terminal for a long period. Dead battery pack can leak, leading to malfunction and damage to the Handheld Terminal.

  • Page 12: Regulatory Information

    Model Number: HA-G60IO, HA-G62IO Trade Name: CASIO Responsible party: Casio America, Inc. Industrial Handheld Division Address: 10710 Baxter Avenue, Los Altos, California 94024 USA Telephone number: 408-738-8220 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 13: Declaration Of Conformity

    RF fi eld in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada's website at http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/99ehd-dhm237/index_e.html Europe DECLARATION OF CONFORMITY We, the under signed, CASIO Europe GmbH, hereby declare that the following equipment: Product: Handheld Terminal Models: DT-X30G, DT-X30GR, DT-X30E and DT-X30R Brand: CASIO...

  • Page 14

    6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan Representative within the European Union: CASIO EUROPE GmbH Casio-Platz 1, 22848 Norderstedt, Germany The CASIO DT-X30 models are designed, tested and found to meet the relevant regulatory standards described below. DT-X30R DT-X30GR International standards:...

  • Page 15: Handheld Terminal System Confi Guration

    Handheld Terminal System Confi guration Bundled Items Please check the contents in the box before using the Handheld Terminal for the fi rst time. DT-X30 Series DT-X30 Series Handheld Terminal Hand Belt Stylus The stylus is attached to the Handheld Terminal.

  • Page 16

    Options Battery Pack HA-G20BAT (Battery Pack) Soft Case Dual Battery Charger HA-G32DCHG AC Adaptor for USB Cradle/Ethernet Cradle/ Dual Battery Charger AD-S42120B-N Power Cord for Europe AC-CORD-EU Power Cord for North America AC-CORD-US Power Cord for Taiwan AC-CORD-TW Power Cord for Korea AC-CORD-KR Power Cord for Australia AC-CORD-AU...

  • Page 17: General Guide

    General Guide Left Front Right Back Bottom Battery compartment Speaker Generates audio and buzzer tones. Indicator 1 Orange: Charging Green: Charging complete Red: Battery pack error or the surrounding temperature is out of the charging temperature range. Indicator 2 Flashes blue when operating via Bluetooth or orange when operating via W-LAN, GPS or W-WAN.

  • Page 18

    Screen Displays text and operating instructions. In addition, operations can be performed and data can be input using the stylus provided. Microphone Used for audio input (including voice). Power Key Turns the power on and off. CLR Key Used to clear one letter to the left of the cursor. Center Trigger Key Used to perform bar code reading.

  • Page 19

    F7: Lowers sound volume. F8: Not assigned. Fn + F8: Selects text entry mode. (The mode changes in order of Numeric ➝ Uppercase letter ➝ Lowercase letter.) 14 Hand Belt Holes Used to attach the hand belt. 15 L Trigger Key Used to perform bar code reading.

  • Page 20: Loading And Removing The Battery Pack

    Loading and Removing the Battery Pack Your Handheld Terminal uses two types of battery: a battery pack and a memory backup battery. The battery pack is used to power normal operations and to store data, while the memory backup battery (built-in) provides the power required to maintain memory contents when the battery pack power is unable to supply power for some reason.

  • Page 21: Loading

    Loading 1. Turn over the Handheld Terminal. 2. Remove the battery pack cover as follows: Slide the left and right lock switches for the battery pack cover to the “FREE” position. Hook your fi ngertips into the notches in the Handheld Terminal and lift the battery pack cover up in the direction indicated by the arrow.

  • Page 22: Removing

    Removing 1. Make sure that the Handheld Terminal is turned off. If the power is on, press the power key to turn it off. 2. Turn over the Handheld Terminal. 3. Refer to “Loading” on the previous page and remove the battery pack cover. 4.

  • Page 23: Charging The Battery Pack

    Charging the Battery Pack To charge the battery pack, use one of the cradles and the battery chargers following the procedure described below. Be sure to use the separately sold AC adaptor (AD- S42120B-N) to power the cradle or charger. Or, if you use the Car Mounted-type Battery Charger in a vehicle, use the accompanied Car Power Cable to power the charger.

  • Page 24: Car Mounted-type Battery Charger

    Red Flashing: Battery pack problem Green: Charging complete Green Flashing: Standby due to the surrounding temperature being beyond the specifi ed temperature range (Approximately 0°- 40°C) (charging resumes when the temperature reaches the range.) Car Mounted-type Battery Charger Plug in the Car Power Cable accompanied in the box to the Car Mounted-type Battery Charger as illustrated below and the other end to the cigarette lighter socket in vehicle.

  • Page 25: Attaching The Hand Belt

    Attaching the Hand Belt The hand belt can be used to prevent the Handheld Terminal from dropping when carrying it around. Attach the hand belt according to the procedure described below. To attach the hand belt 1. Thread the belt through the hand belt hole as shown in the fi gure. Then fold it back and secure using the hook-loop fastener.

  • Page 26: Confi Guring Handheld Terminal Settings

    Confi guring Handheld Terminal Settings Calibrating Touch Screen Alignment Whenever the response of the touch screen is poor, or the operations being executed do not match with the location you are tapping on the touch screen, please recalibrate the alignment of the touch screen using the following method. Press the “Fn”...

  • Page 27: Using The Laser Scanner (laser Models

    Using the Laser Scanner (Laser Models) 1. After turning on the power, position the laser scanner close to a bar code and then press the trigger key. 2. The laser emits light and scans the bar code. If scanning is completed normally, Indicator 2 displays a green light.

  • Page 28: Using The C-mos Imager (imager Models

    Using the C-MOS Imager (Imager Models) 1. Turn on the Handheld Terminal, position its C-MOS Imager reader port near the bar code or 2D code, and then press the Trigger Key. 2. The Handheld Terminal reads the code by emitting laser and red lights. Indicator 2 (read operation indicator lamp) lights in green when the reading is successful.

  • Page 29: Warning Label

    Warning Label Laser Beam This label is a warning and caution label for Class 2 laser products that comply with IEC60825-1:1993+A1:1997+A2:2001. Although Class 2 laser light is only emitted momentarily, never look directly into the beam light. The laser light emitted by this laser scanner has a maximum output of less than 1 mW and a wavelength of 650 nm.

  • Page 30: Adjusting The Laser Light Emission Width

    Adjusting the Laser Light Emission Width The emission width of the laser light emitted by the Handheld Terminal can be adjusted. Adjust the emission width when it has been changed. 1. Tap the menus in the following sequence: Windows CE models: Start Settings Control Panel Windows Mobile models: Start...

  • Page 31

    4. Tap the [Calibration] button. The display appears as shown at right. 5. Press the Trigger Key to emit laser light, and align the light with the barcode for adjusting emission width. Align the laser light with the narrow bars on both sides. The message appears as shown at right when adjustment is completed.

  • Page 32: Performing Communications

    Performing Communications IR Communication IR communication can be used to transfer data between two Handheld Terminals. When performing IR communication, orient the IR ports of both Handheld Terminals so they are pointing directly at each other. The ports can be in direct contact with each other, or they can be separated by up to 30cm ( ) (up to 20cm (7 ) for communication between units).

  • Page 33: Bluetooth Communication

    ® Bluetooth Communication ® Bluetooth interface can also be used to transfer data between two Handheld Terminals. ® With Bluetooth the two Handheld Terminals should be located within about three meters ) from each other, as long as there is nothing blocking the path between them. '10 "...

  • Page 34: Gsm Communication

    GSM Communication To use the GSM functions, you must receive service from a wireless service provider. Available GSM functions may be dependent on the service provider to which you connect. Please consult your service provider for details about network service. If you use GSM and WLAN at the same time, the communication speed of WLAN may be reduced, or the reception of WLAN signals may be disconnected, due to the operational state of GSM.

  • Page 35: Handling Microsd Cards

    Handling microSD Cards The Handheld Terminal supports microSD card. Since the microSD card slot is located inside the battery pack compartment, fi rst remove the battery pack when installing or removing a microSD card. Refer to pages 18 to 20 for information on “Loading and Removing the battery pack”. Install (or replace) a microSD card according to the procedure described below.

  • Page 36: Removing

    Removing 1. Check that the power is turned off. If the power is on, always make sure to turn it off by pressing the Power Key. 2. Remove the battery pack. 3. Push in the card. Slowly remove the card after it slightly pops out. 4.

  • Page 37: Handling Sim Cards

    Handling SIM Cards The Handheld Terminal supports SIM card. Since the SIM card slot is located inside the battery pack compartment, fi rst remove the battery pack when installing or removing a SIM card. Refer to pages 18 to 20 for information on “Loading and Removing the battery pack”. Install (or replace) a SIM card according to the procedure described below.

  • Page 38: Removing

    Removing 1. Check that the power is turned off. If the power is on, always make sure to turn it off by pressing the Power Key. 2. Remove the battery pack. 3. Pressing down on the stopper ( ), slide the SIM card in the direction of the arrow ) and remove.

  • Page 39: Resetting The Handheld Terminal

    Resetting the Handheld Terminal Resetting the Handheld Terminal is the same as resetting a PC. Performing a reset causes all unsaved inputs and edits to be lost, but data that is already stored in the memory as well as all settings should be unaffected. Use reset to restore normal operation whenever the Handheld Terminal operates abnormally due to misoperation or some other reason.

  • Page 40: Dt-x30 Specifi Cations

    DT-X30 Specifi cations Model: DT-X30R-10/R-30/R-15/R-35 DT-X30GR-10/GR-10C/GR-30/GR-30C/GR-15/GR-15C/GR-35/ GR-35C/G-35U/G-35UC ® CPU: Marvell PXA320 624MHz Memory: 128MB RAM, 128MB Flash ROM (user defi ned: 80MB) ® ® Microsoft Windows CE6.0R2 operating system, English Version (DT-X30R-10/R-30/GR-10/GR-10C/GR-30/GR-30C) ® ® Microsoft Windows Mobile 6.1 operating system, English Version (DT-X30R-15/R-35/GR-15/GR-15C/GR-35/GR-35C/G-35U/G-35UC) Display: 3.5-inch, 320 240-dot 2-Way TFT color LCD...

  • Page 41

    WLAN (DT-X30R-10/R-30/R-15/R-35/GR-10/GR-10C/GR-30/GR-30C/GR-15/GR-15C/GR-35/GR-35C): Standards: IEEE 802.11b/g Diffusion Modulation: DS: 802.11b DS/OFDM: 802.11g Frequency: 802.11b/g: 2.400-2.4835 GHz Transmission Rate: 802.11b: Max. 11 Mbps 802.11g: Max. 54 Mbps Communication Range: 50 m indoors, 150 m outdoors (varies according to usage environment and transmission rate) GSM (DT-X30GR-10/GR-10C/GR-30/GR-30C/GR-15/GR-15C/GR-35/GR-35C/G-35U/G-35UC): Standard: GSM release 99...

  • Page 42

    GPS (DT-X30GR-10/GR-10C/GR-30/GR-30C/GR-15/GR-15C/GR-35/GR-35C/G-35U/G-35UC): General specifi cations: 16-channel receiver, L1 1575.42 MHz, C/A code Protocol: NMEA-0183 Sensitivity: Acquisition sensitivity: -141 dBm Tracking sensitivity: -158 dBm SIM card: Standard: ISO 7816 IC Card standard General specifi cations: Support for 3 V and 1.8 V SIM cards Camera (DT-X30GR-10C/GR-30C/GR-15C/GR-35C/G-35UC): Approx.

  • Page 43

    Dimensional Drawing Approx. Approx. 49 mm (1 ") 87 mm (3 ") Approx. Approx. 59 mm (2 ") 46 mm (1 ") E-41...

  • Page 44: Using The Usb Cradle (ha-g60io

    Using the USB Cradle (HA-G60IO) The optionally available USB Cradle (HA-G60IO) makes it possible to transmit system data and fi le data between the Handheld Terminal and a PC via a USB connection (download or upload). You can also use the USB Cradle to charge the battery pack installed in the Handheld Terminal.

  • Page 45

    USB Client Port This port is used to transmit system data and fi le data (download, upload) by connecting the Cradle to a PC using a USB cable (DT-380USB). A dedicated driver must be installed in the PC before connecting the Cradle to the PC. USB Host Port This port is used to connect a corresponding USB peripheral device.

  • Page 46: Specifi Cations

    Specifi cations 1. USB Protocol: USB Ver1.1 Standard Transfer Rate: 12Mbps (max.) 2. Charging Charging Method: Constant current/voltage Charge Period: Approximately 5 hours 3. Power Supply Power Source: AC adaptor (AD-S42120B) Consumption Current: 12V DC approximately 3.0A Output to Handheld Terminal: 9.5V DC 2.7A (max.) USB Host Output: 5V DC 0.5A (max.) 4.

  • Page 47: Using The Ethernet Cradle (ha-g62io

    Using the Ethernet Cradle (HA-G62IO) The optionally available Enthernet Cradle (HA-G62IO) makes it possible to transmit system data and fi le data between the Handheld Terminal and a PC via a USB or LAN connection (download or upload). You can also use the Ethernet Cradle to charge the battery pack installed in the Handheld Terminal.

  • Page 48

    USB Client Port This port is used to transmit system data and fi le data (download, upload) by connecting the Ethernet Cradle to a PC using a USB cable (DT-380USB). The dedicated driver must be installed in the PC before connecting the Ethernet Cradle to the PC. USB Host Port This port is used to connect a corresponding USB peripheral device.

  • Page 49: Specifi Cations

    Do not subject the Handheld Terminal and Ethernet Cradle to vibration or impact during communication. This can cause communication to be interrupted. When placing the DT-X30 into the cradle, make sure that it is seated properly and that the power LED at the front of the Ethernet Cradle is lit in green. Charging and communication will not proceed properly if the Handheld Terminal is not seated properly.

  • Page 50: Using The Cradle-type Battery Charger (ha-g30chg

    Using the Cradle-type Battery Charger (HA-G30CHG) The optionally available Cradle-type Battery Charger (HA-G30CHG) lets you charge the Handheld Terminal’s battery simply by placing the Handheld Terminal onto the charger. General Guide Front Back AC Adaptor Jack Connect the AC adaptor (sold separately) here. Terminal Detect This switch detects when the DT-X30 is mounted correctly on the Switch...

  • Page 51: Specifi Cations

    Important ! Never short out the power contacts of the Cradle-type Battery Charger. This can damage the Cradle-type Battery Charger. Allowing the power contacts become wet can cause an electric shock or fi re. In addition, if the contacts become soiled, contact may be impaired resulting in poor charging.

  • Page 52: Using The Car Mounted-type Battery Charger (ha-g35chg

    Using the Car Mounted-type Battery Charger (HA-G35CHG) The optionally available Car Mounted-type Battery Charger (HA-G35CHG) can be used to charge the battery installed in the Handheld Terminal using power from the cigarette lighter in your car. General Guide Left Front Back AC Adaptor Jack Connect the Car Power Cable (bundled) here.

  • Page 53: Specifi Cations

    Regarding the installation of HA-G35CHG in your car, no technical advice is available from CASIO. Consult with automotive parts store or specialized store regarding the installation method and mounting strength of the products installed in your car.

  • Page 54: Using The Dual Battery Charger (ha-g32dchg

    Using the Dual Battery Charger (HA-G32DCHG) The optionally available Dual Battery Charger (HA-G32DCHG) can be used to simultaneously charge two battery packs. General Guide Left Right Bottom Bundled Items Connection Bracket 2 screws E-52...

  • Page 55

    Charge Indicator This LED indicates the charge status of the battery pack(s). Off: Not charging Red: Charging Red Flashing: Battery pack problem Green Flashing: Standby Green: Charging complete Power Contacts Power is supplied to the Handheld Terminal via these contacts. AC Adaptor Jack This is used to supply power by connecting the AC adaptor (sold separately).

  • Page 56: Connecting Multiple Dual Battery Chargers

    Connecting Multiple Dual Battery Chargers You can connect up to three Dual Battery Chargers. Doing so makes it possible to supply power to all the Dual Battery Chargers using one dedicated AC adaptor. 1. As shown in the illustrations below, remove the connector covers of the Dual Battery Chargers you want to connect to each other.

  • Page 57: Specifi Cations

    Specifi cations 1. Charging Specifi cation Charging Method: Constant current/voltage Charge Period: Approx. 4 hours (1 standard battery pack, normal temperature) When charging two battery packs: Approx. 5.5 hours (2 standard battery packs, normal temperature) 2. Power Supply Power Source: AC adaptor (AD-S42120B*) Consumption Current: 12V DC 3.5A...

  • Page 58: Using Rechargeable Battery Pack

    Using Rechargeable Battery Pack HA-G20BAT Important! Store a battery pack in its special soft case whenever you are not using it. If the battery pack has been left over unused for a long period of time, the capacity remained decreases due to spontaneous discharge or chemical decomposition by the battery pack itself.

  • Page 59

    CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan...
