USB Cradle (HA-S60IO)

The USB cradle can be used to connect the DT-X400 to devices such as a computer or USB
device. It can also be used to supply power to the DT-X400 and to charge the battery pack.

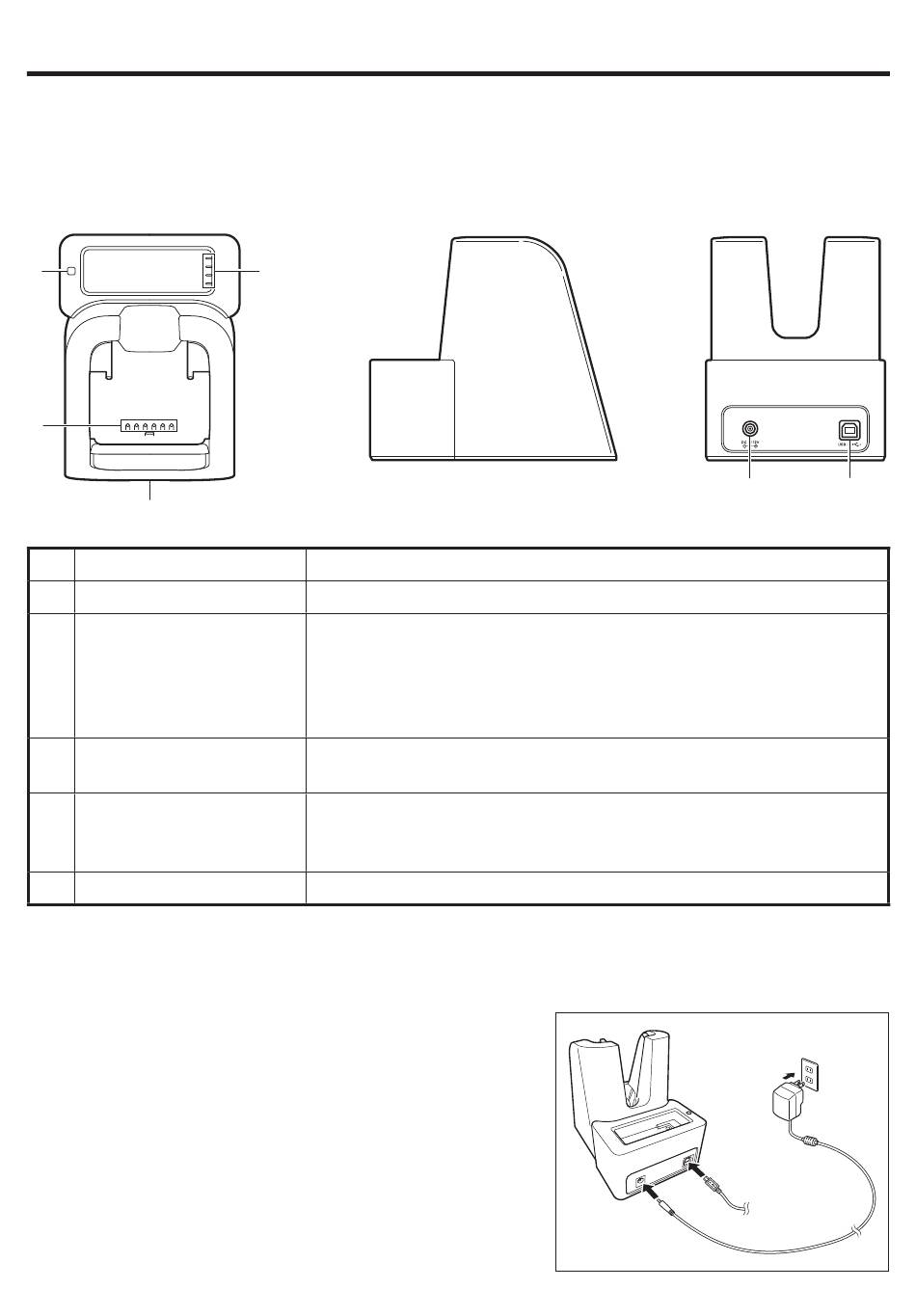

Part Names and Operation
<Top>
3
4
5
1
AC Adaptor Jack
2
USB Client Port
Charging Status LED
3
(Battery Pack)
Power Supply/Data
4
Communication Terminal
5
Power Supply LED
6
Battery Pack Contacts
Installing and Connecting the Power Supply
Use the optional AC adaptor(AD-S50400A) to supply power to the charger.
1. Plug the AC adapter into the AC adapter jack on
the back of the USB cradle.
2. Plug the AC adapter into a mains power outlet.
3. When connecting to a computer, plug the USB
cable into the USB client port.
E-44
6
Used to connect an AC adapter as a power supply.
Used to connect to a computer.
Shows the charging status.
Red: Charging
Green: Charging complete
Flashing alternately red/green: Battery pack fault or outside charging
temperature range
Used to supply power to the DT-X400 or for data communication.
Indicates the power status and the mounting status of the DT-X400.
Red: Power on, DT-X400 is not installed.
Green: Power on, DT-X400 mounted correctly.
Used to charge the battery pack.
