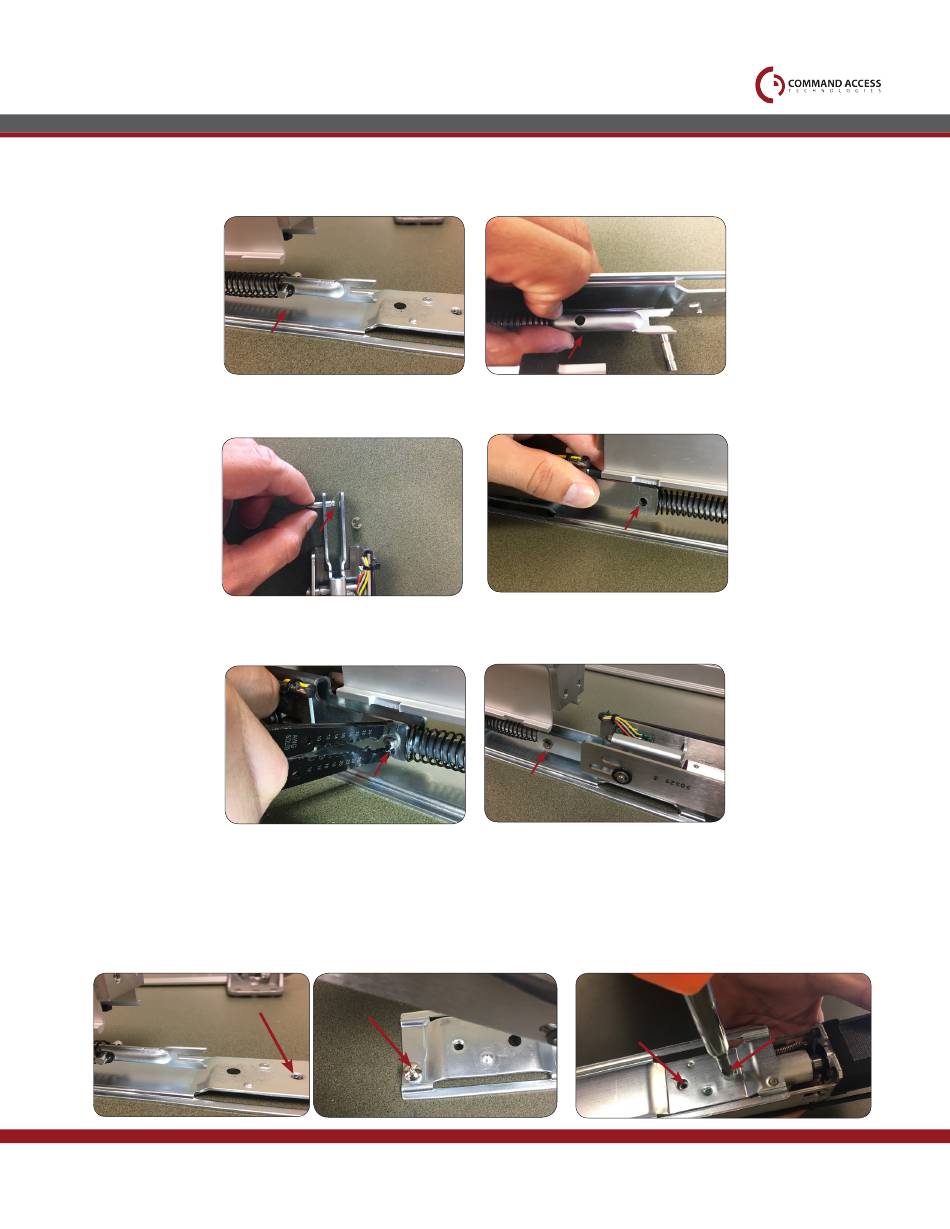

Remove roll pin from back of connecting rod by detaching "C" clip from either side.
6.
(1) Remove pin completely. (2)
Remove roll pin SUPPLIED WITH PD25 Kit (3) and line up holes on attaching
7.
bracket to device holes. (4)
Push roll pin through kit and device holes and attach "C" clips. (5) Once attached, attaching
8.
bracket is secure. (6)
Once the kit is secure with the pin, lift up and
9.
insert back screw into the bottom dogging hole.
Do not tighten until device is assembled.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
CONTINUED
1
3
5
Once the kit is secure with the pin, lift up
10.
and insert back screw into the
bottom dogging hole. Do not tighten
until device is assembled. Once kit is
connected, flip device over and put screws
back in dogging holes.
