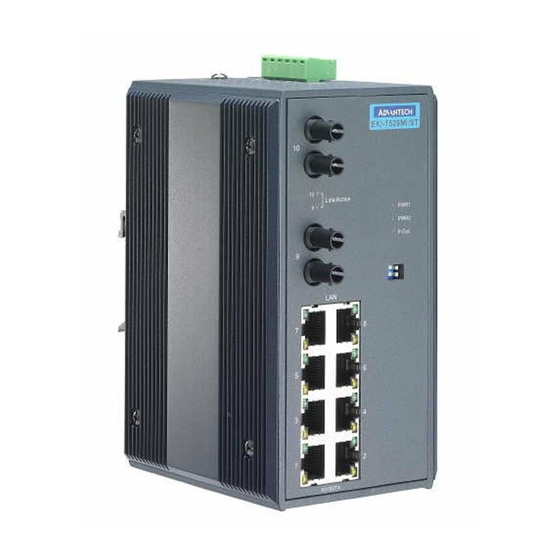

8+2 100 fx port unmanaged industrial ethernet switch

Advertisement

Quick Links

EKI-7529MI,
EKI-7529MI/ST
8+2 100 FX Port Unmanaged
Industrial Ethernet Switch

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EKI-7529MI and is the answer not in the manual?

Questions and answers

Summary of Contents for Advantech EKI-7529MI

  • Page 1: User Manual

    EKI-7529MI, EKI-7529MI/ST 8+2 100 FX Port Unmanaged Industrial Ethernet Switch User Manual...
  • Page 2 The documentation and the software included with this product are copyrighted 2009 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
  • Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 4 Step 2. Contact your distributor, sales representative, or Advantech’s customer service center for technical support if you need additional assistance. Please have the following information ready before you call: - Product name and serial number...
  • Page 5 Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User's Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 6 Safety Precaution - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage. 1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is 2.
  • Page 7: Table Of Contents

    Table 2.1: EKI-7529MI, EKI-7529MI/ST LED Definition...............8 Table 2.2: EKI-7529MI, EKI-7529MI/ST DIP Definition...............8 2.2 Dimensions (units: mm) ........9 Figure 2.1: Front View of EKI-7529MI, EKI- 7529MI/ST..............9 Figure 2.2: Side View of EKI-7529MI, EKI- 7529MI/ST..............10 Figure 2.3: Rear View of EKI-7529MI, EKI- 7529MI/ST..............11...
  • Page 8 EKI-7529MI_7529MIST_Manual_ed4 viii...
  • Page 9: Overview

    Overview Sections include: Introduction Features Specifications Packing List Safety Precaution Chapter1...
  • Page 10: Chapter 1 Overview

    1.1.5 Wide Operating Temperature The operating temperature of the EKI-7529MI, EKI-7529MI/ST is between -40 ~ 75 ℃. With such a wide range, you can use the EKI-7529MI, EKI-7529MI/ST in some of the harshest industrial environments that exist. 1.1.6 Easy Troubleshooting LED indicators make troubleshooting quick and easy.
  • Page 11: Features

    • Supports +12 ~ 48 V power input • Provides flexible mounting: DIN-rail, Wall Mounting • Supports Wide range operating temperature from -40 ~ 75 ℃ (EKI-7529MI, EKI- 7529MI/ST) • Provides Port 1 and port 2 work on 10Mbps transmission •...
  • Page 12: Specification

    1.3 Specification Communications IEEE 802.3, 802.3u, 802.3x Compatibility 10/100Base-TX, 100Base-FX Ethernet : Up to 100 m (Cat.5e, Cat.6 RJ-45 Transmission Distance cable suggested for Gigabit port) Fiber : Multi-mode: Up to 2Km Ethernet : Up to 100 Mbps Transmission Speed Fiber : Up to 100 Mbps Interface 8 x RJ-45...
  • Page 13 -40 ~ 75 ℃ Operating Temperature 5% ~ 95% (non-condensing) Operating Humidity -40 ~ 85 ℃ Storage Temperature 289518 hours(EKI-7529MI) MTBF 289329 hours(EKI-7529MI/ST) Certifications UL 508*, Class 1 Division 2* Safety U.S.A.: FCC Part 15 CISPR 22 EU: EN55011 EN55022...
  • Page 14: Packing List

    1.4 Packing List • 1 x EKI-7529MI, EKI-7529MI/ST 8+2 100FX Port Unmanaged Industrial Ethernet Switch • 1 x eAutomation Industrial Communication CD-ROM with User manual • 2 x Wall Mounting Bracket and Screws • 1 x DIN-rail Mounting Bracket and Screws •...
  • Page 15: Installation

    Installation Sections include: LED Indicators Dimensions Mounting Network Connection Fiber Optic Network Connection Power Connection Chapter2...
  • Page 16: Chapter 2 Installation

    Chapter 2 Installation In this chapter, you will be given an overview of the EKI-7529MI, EKI-7529MI/ST hardware installation procedures. 2.1 LED Indicators There are few LEDs display the power status and network status located on the front panel of EKI-7529MI, EKI-7529MI/ST, each of them has its own specific meaning as the table below.
  • Page 17: Dimensions (Units: Mm)

    2.2 Dimensions (units: mm) Figure 2.1: Front View of EKI-7529MI, EKI-7529MI/ST Chapter2...
  • Page 18: Figure 2.2: Side View Of Eki-7529Mi, Eki 7529Mi/St

    Figure 2.2: Side View of EKI-7529MI, EKI-7529MI/ST EKI-7529MI_7529MIST_Manual_ed4...
  • Page 19: Figure 2.3: Rear View Of Eki-7529Mi, Eki 7529Mi/St

    Figure 2.3: Rear View of EKI-7529MI, EKI-7529MI/ST Please refer to page 19 for pin assignment. Figure 2.4: Top View of EKI-7529MI, EKI-7529MI/ST Chapter2...
  • Page 20: 7529Mi/St

    Then, hang on the EKI-7529MI, EKI-7529MI/ST to the nails on the wall. First, use the screws included in the package to combine the EKI-7529MI, EKI- 7529MI/ST and metal mounting kit. And then you can install the device firmly via the components, please see Figure 2.5 as below.
  • Page 21: Din-Rail Mounting

    2.3.2 DIN-rail Mounting You can also mount EKI-7529MI, EKI-7529MI/ST on a standard DIN-rail by below steps. The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first.
  • Page 22: Figure 2.7: Installation To Din-Rail Step 2

    Then, let the device down straight to slide over the rail smoothly. See Figure 2.7 Figure 2.7: Installation to DIN-rail Step 2 EKI-7529MI_7529MIST_Manual_ed4...
  • Page 23: Network Connection

    2.4 Network Connection The EKI-7529MI, EKI-7529MI/ST has 8 x RJ-45 ports that support connection to 10 Mbps Ethernet, or 100 Mbps Fast Ethernet, and half or full duplex operation. EKI- 7529MI, EKI-7529MI/ST can be connected to other hubs or switches via a twisted-pair straight-through or crossover cable up to 100m long.
  • Page 24: Troubleshooting

    Troubleshooting EKI-7529MI_7529MIST_Manual_ed4...
  • Page 25: Chapter 3 Troubleshooting

    Chapter 3 Troubleshooting Power Input Verify that is using the right power cord/adapter 48 V , please don’t use the power adaptor with DC output voltage higher than 48V, or it will burn this converter down. Cable Select the proper UTP cable to construct user network. Please check that is using the right cable.
  • Page 26: Appendix A Pin Assignment & Wiring

    Pin Assignment & Wiring EKI-7529MI_7529MIST_Manual_ed4...
  • Page 27: Figure A.1: Rj-45 Pin Assignment

    Appendix A Pin Assignment & Wiring It is suggested to adopt ELA/TIA as the wiring of the RJ-45. Figure A.1: RJ-45 Pin Assignment Figure A.2: EIA/TIA-568B Figure A.2: EIA/TIA-568A...
