Linux Deployment
7.7

MiniGUI Example

The file system of Linux has provided Minigui test application to verify that the XGI, USB
mouse and USB keyboard can work well at COMX-P2020.
1. Insert USB mouse and USB keyboard to the COMX-P2020, this is a must for this
example.
2. Run the Minigui sample and check the output of VGA to verify that all devices can work
well at the board.
[root@COMX-P2020 root]# cd /usr/private/mg-samples-1.6.10/src
[root@COMX-P2020 src]# ./mywins

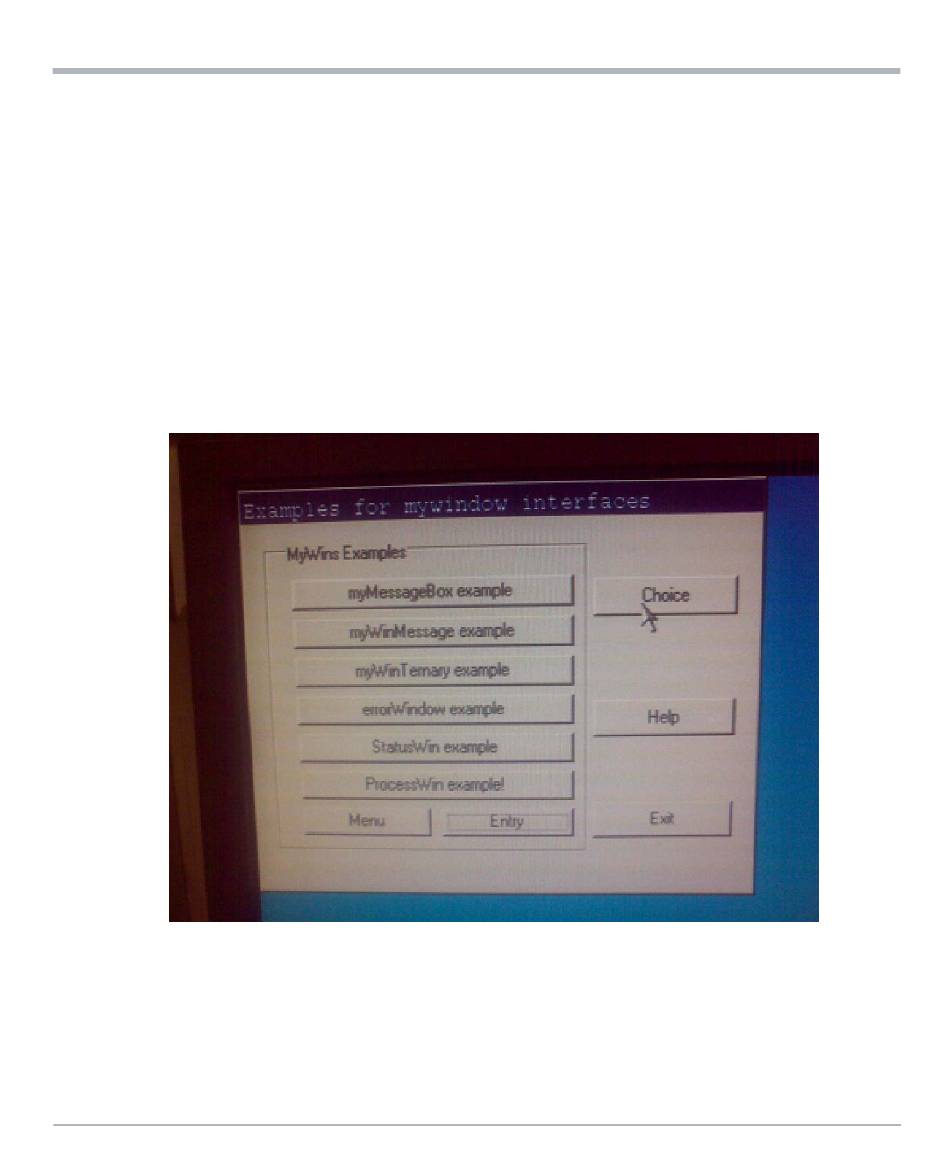

Figure 7-2 Output for MiniGUI Example

98 COMX-P2020 BSP User Guide (6806800L84C)
