U-boot Deployment

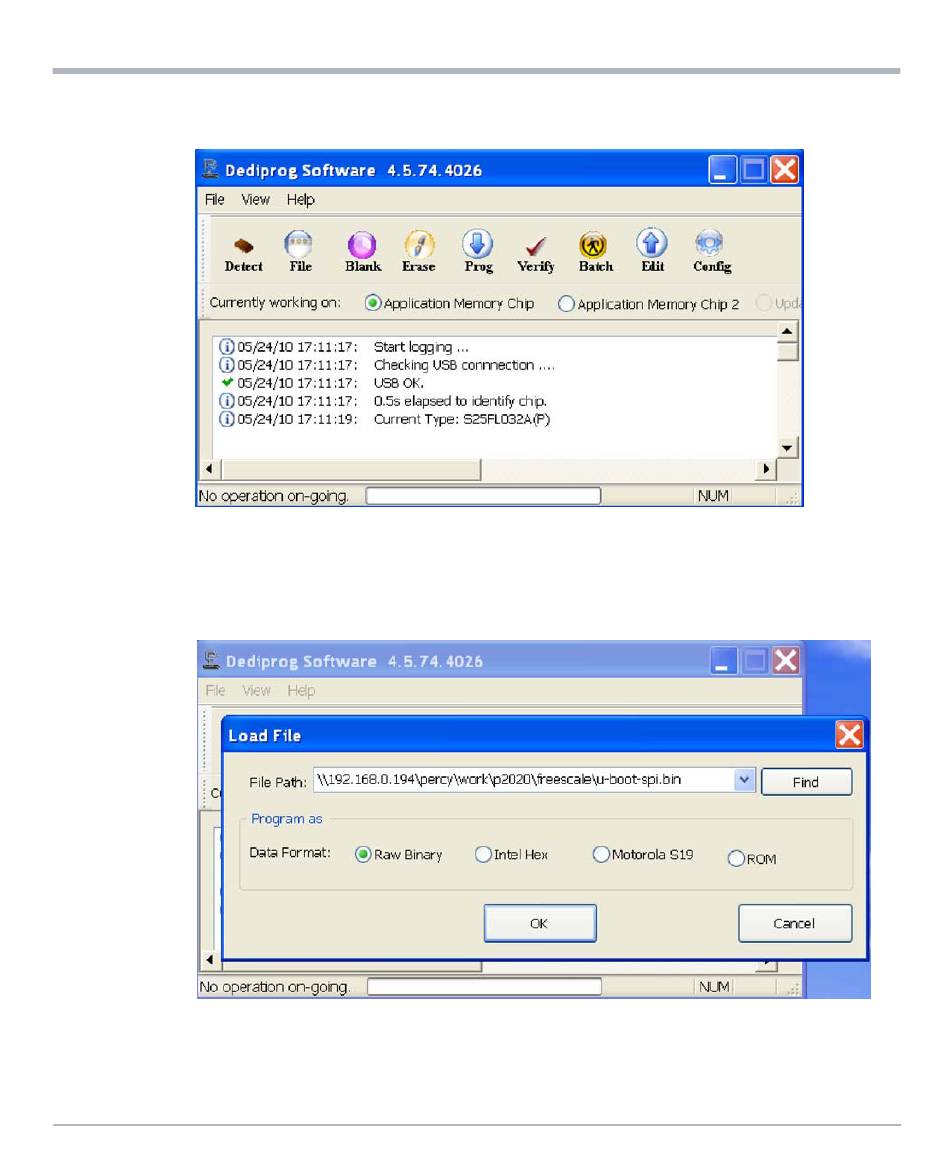

3. Run DediPro.exe:
If the driver and application for SF100 installs successfully, the Dediprog can find
the SPI Flash: S25FL032A(P) as above.
4. Load file by clicking the File and select the u-boot-spi.bin.Select "Raw Binary".
44
COMX-P2020 BSP User Guide (6806800L84C)
