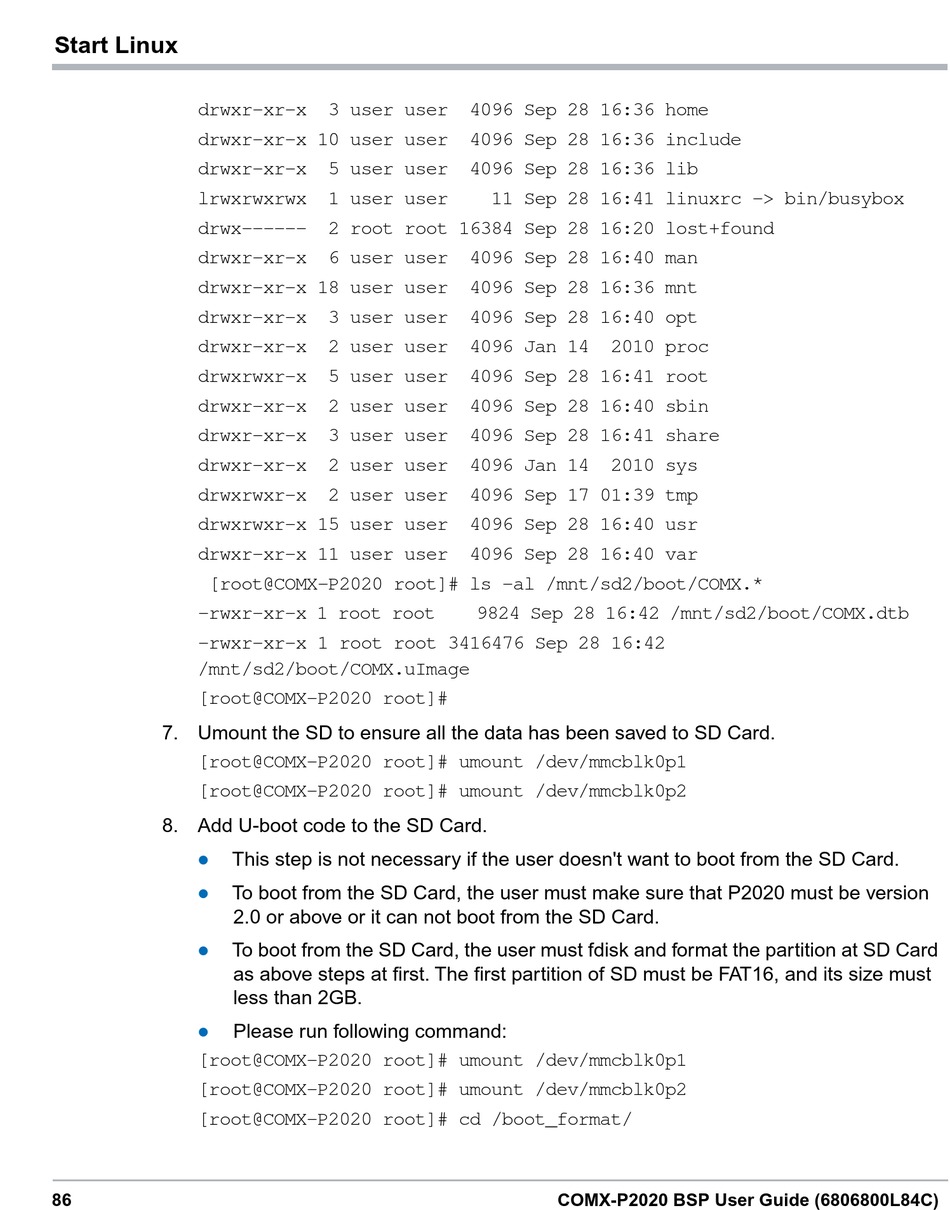

SMART Embedded Computing COMX-P2020 BSP User Manual page 86

Start Linux
drwxr-xr-x 3 user user 4096 Sep 28 16:36 home
drwxr-xr-x 10 user user 4096 Sep 28 16:36 include
drwxr-xr-x 5 user user 4096 Sep 28 16:36 lib
lrwxrwxrwx 1 user user
drwx------ 2 root root 16384 Sep 28 16:20 lost+found
drwxr-xr-x 6 user user 4096 Sep 28 16:40 man
drwxr-xr-x 18 user user 4096 Sep 28 16:36 mnt
drwxr-xr-x 3 user user 4096 Sep 28 16:40 opt
drwxr-xr-x 2 user user 4096 Jan 14
drwxrwxr-x 5 user user 4096 Sep 28 16:41 root
drwxr-xr-x 2 user user 4096 Sep 28 16:40 sbin
drwxr-xr-x 3 user user 4096 Sep 28 16:41 share
drwxr-xr-x 2 user user 4096 Jan 14
drwxrwxr-x 2 user user 4096 Sep 17 01:39 tmp
drwxrwxr-x 15 user user 4096 Sep 28 16:40 usr
drwxr-xr-x 11 user user 4096 Sep 28 16:40 var
[root@COMX-P2020 root]# ls -al /mnt/sd2/boot/COMX.*
-rwxr-xr-x 1 root root
-rwxr-xr-x 1 root root 3416476 Sep 28 16:42
/mnt/sd2/boot/COMX.uImage
[root@COMX-P2020 root]#
7. Umount the SD to ensure all the data has been saved to SD Card.
[root@COMX-P2020 root]# umount /dev/mmcblk0p1
[root@COMX-P2020 root]# umount /dev/mmcblk0p2
8. Add U-boot code to the SD Card.
 This step is not necessary if the user doesn't want to boot from the SD Card.
 To boot from the SD Card, the user must make sure that P2020 must be version
2.0 or above or it can not boot from the SD Card.
 To boot from the SD Card, the user must fdisk and format the partition at SD Card
as above steps at first. The first partition of SD must be FAT16, and its size must
less than 2GB.
 Please run following command:
[root@COMX-P2020 root]# umount /dev/mmcblk0p1
[root@COMX-P2020 root]# umount /dev/mmcblk0p2
[root@COMX-P2020 root]# cd /boot_format/
86
11 Sep 28 16:41 linuxrc -> bin/busybox
2010 proc
2010 sys
9824 Sep 28 16:42 /mnt/sd2/boot/COMX.dtb
COMX-P2020 BSP User Guide (6806800L84C)
Start Linux
