13-2
Networking

13.2 ISP200-R in Connection with the BTV20/30

The BTV20/30 is equipped with a Rexroth SIS interface, which permits
networking of a BTV20/30 with several ISP200-R. This interface can be
used to establish an RS485 bus system (see Fig. 13-3).

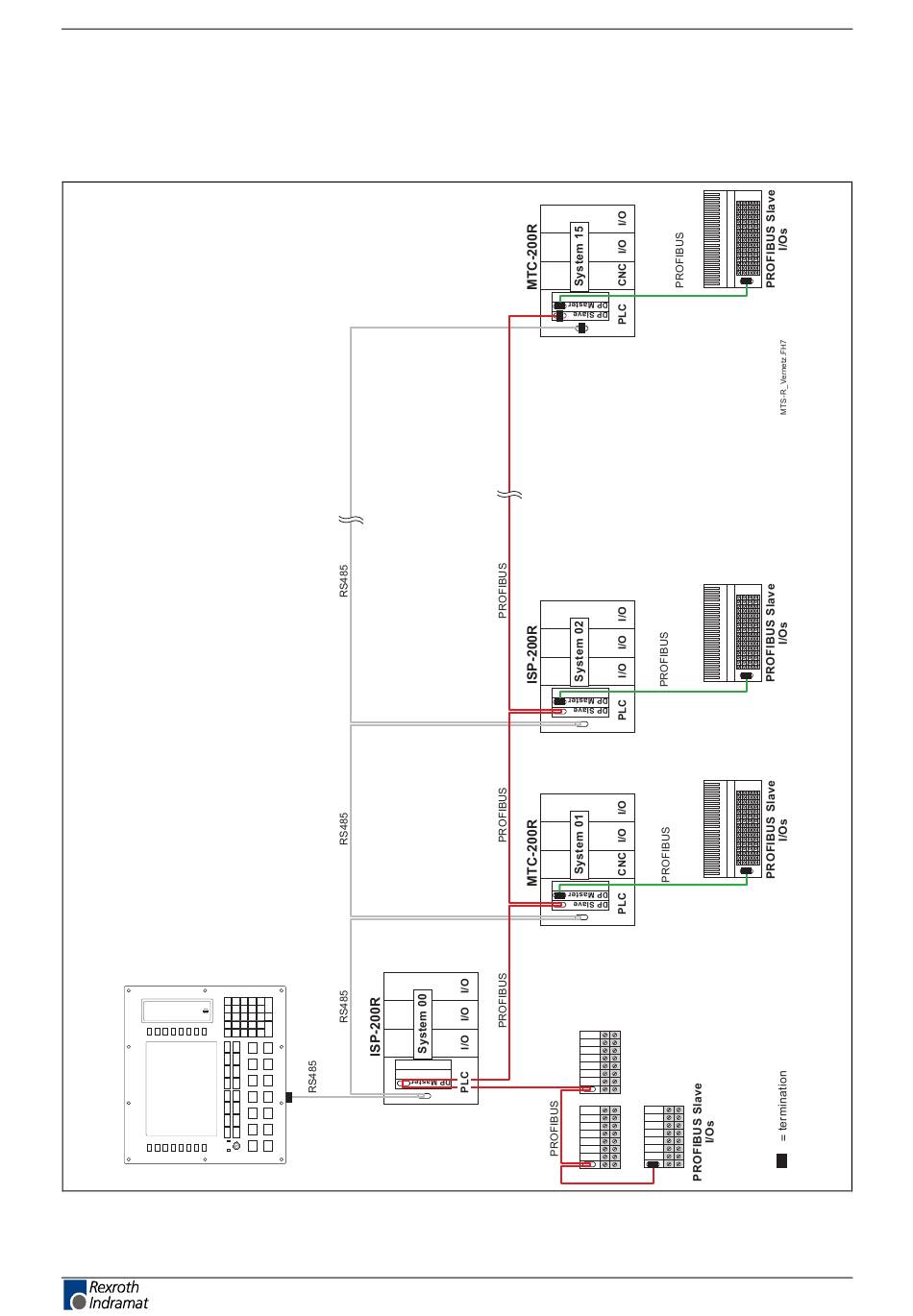

Fig. 13-3: ISP200-R networking with BTV20/30

RECO PLC ISP200-R/G2
DOK-CONTRL-MTS-R0*.2G2-PR01-EN-P
