INTERBUS Master Connection

9.1

Brief Description

Setting of the
I/O-Adresse
O
1
F
2
F
3
4
OFF ON
5
6
7
8
DOK-CONTRL-MTS-R0*.2G2-PR01-EN-P
S1
LK IBM 2
X8
X9
INTERBUS
module (B1)
6
1
X60
IBS-
MASTER
X64
1
6

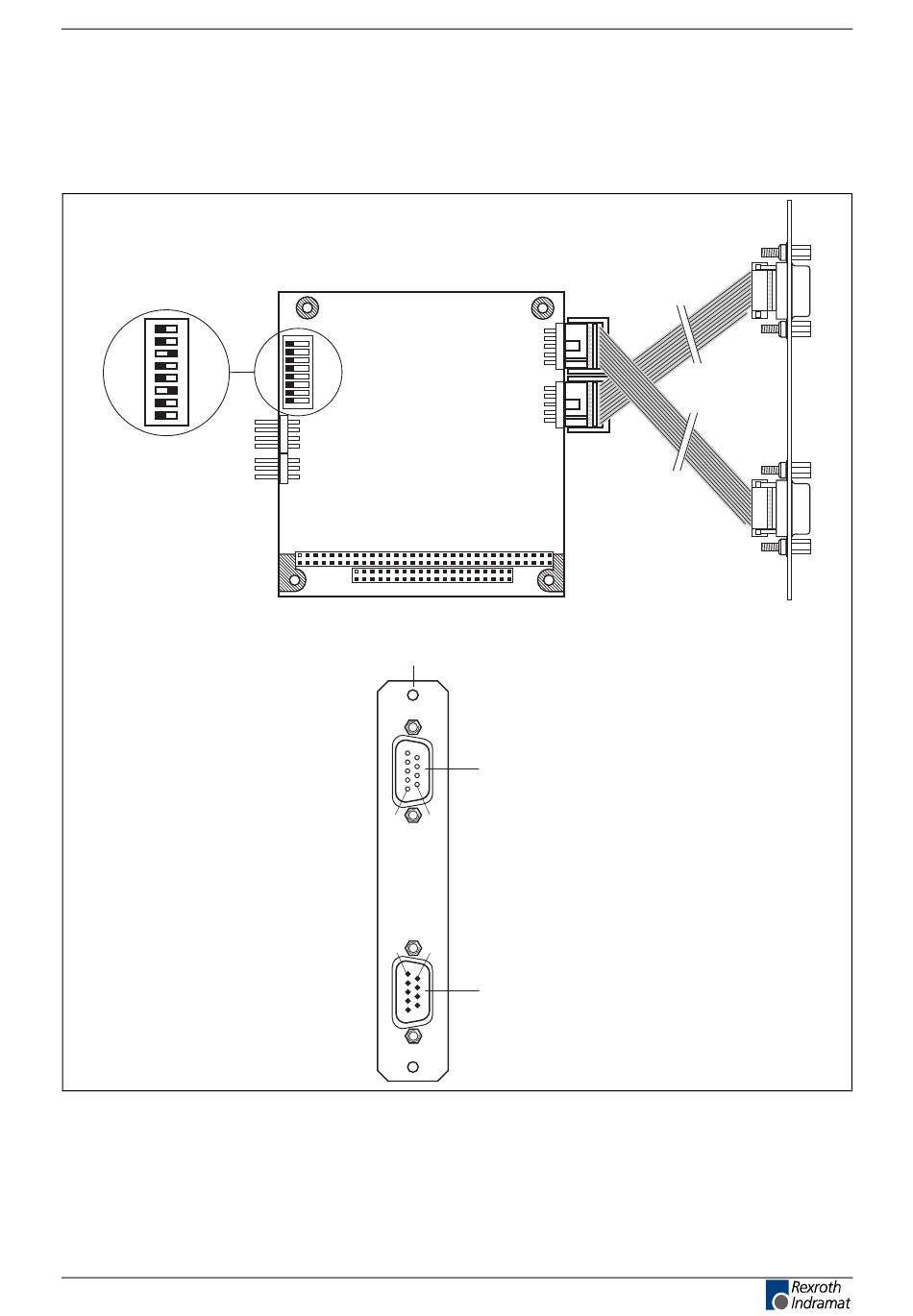

Fig. 9-1: P.C.B. LK IBM 2

The printed circuit board IBM 2 is an INTERBUS master connection of the
th
4 generation in PC104 format. It can be used for the connection of sim-
ple sensors and actuators as well as of intelligent field devices via the
INTERBUS. The INTERBUS permits bridging of distances of up to 12.8
km (from the connection point to the last connected remote bus user),
divided in segments of up to 400 m.
INTERBUS Master Connection
RS 232
INTERBUS
X60 INTERBUS interface
(remote bus)
X64 INTERBUS diagnoses
interface RS232 C
LK IBM2_Anschl.FH7
