RECO PLC ISP200-R/G2
RMB02.2-02
for taking up an
MTS-R01 + MTC-R01 or
a gateway module +
MTS-R01

Installation of Modules

DOK-CONTRL-MTS-R0*.2G2-PR01-EN-P
4x RMB02.2-04
with a total of 16 module spaces for
taking up various I/O modules

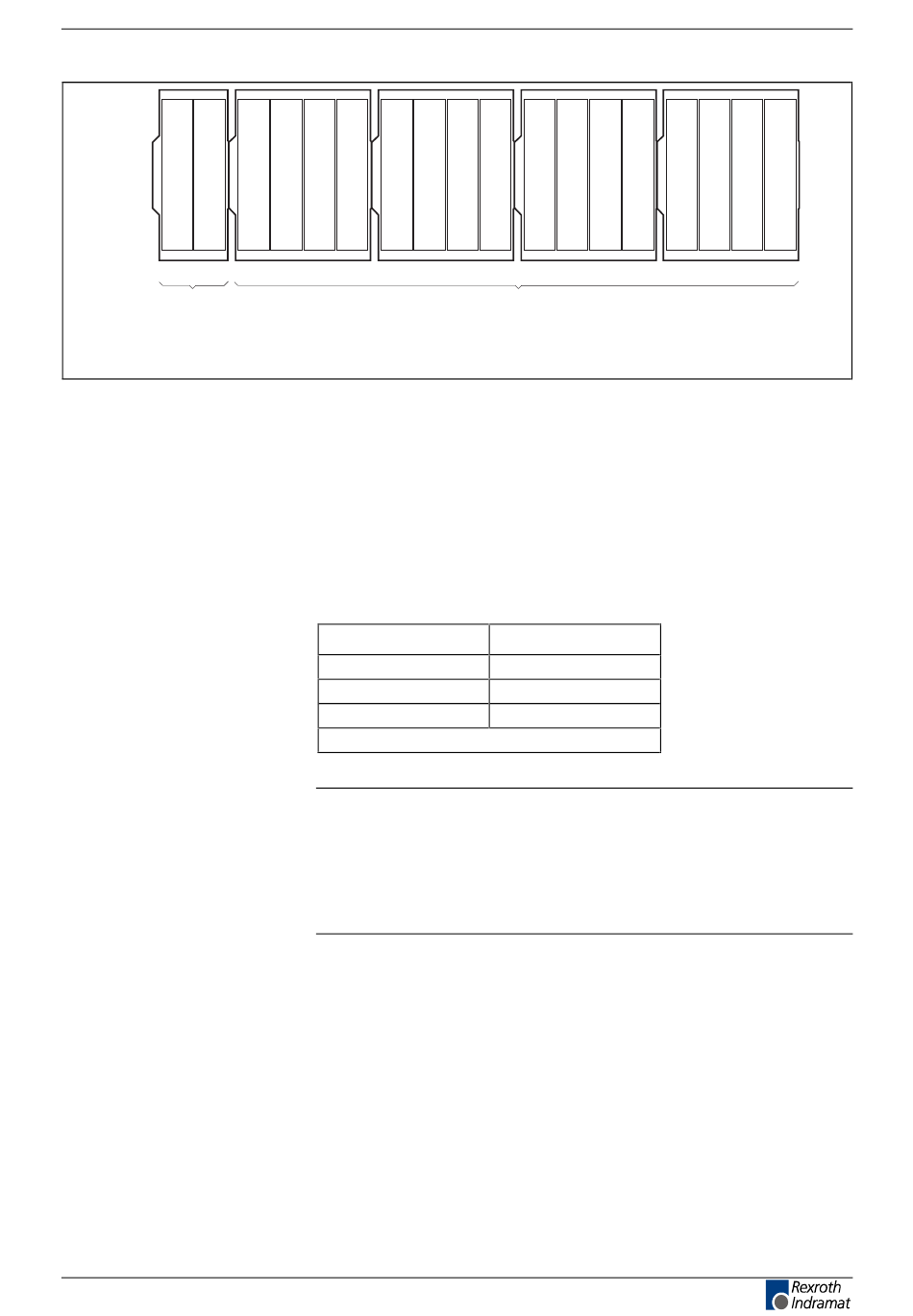

Fig. 6-3: Maximum number of RMB02.2-02 and RMB02.2-04 carriers fitted

Starting with an MTS-R in slot 0 (to the left), the modules must be fitted in
the RMB02.2-04 module carrier and fixed with 2 locking screws each. The
I/O modules (RECO02.2 modules) must be fitted in slots 1 to 15 (0 to 15 if
an RMB02.2-02 is used) to the right of the ISP200-R. When doing this,
gaps may be left so that additional modules may be fitted at a later point.
Contrary to the RMB02.2-04 module carrier, the modules must always be
aligned to the right if the RMB02.2-02 is used. Here, the following
combinations can be made:
Slot 1
MTS-R01.2
Gateway
Empty
MTS-R02.2

Fig. 6-4: Fitting variants for RMB02.2-02

Note: Before startup, the locking screws of the module carriers must
be tightened securely, so that the module carriers are
prevented from moving sideways and, thus, the connectors
between the module carriers from loosening (for the position of
the screws see Fig. 4-5)! In addition, the modules must be
screwed to the module carrier. Connectors and modules may
not be fitted or removed under tension!
RMB02.2-02_Anord.FH7
Slot 2
MTC-R01.1
MTS-R01.2
MTS-R01.2
6-3
Startup
