www.ti.com
1.2
Functional Block Diagram
The functional block diagram of the C5545 BoosterPack is shown in
1.3
Basic Operation
The C5545 BoosterPack is a full-featured development platform for the TMS320C5545 fixed-point DSP. It
supports a comprehensive suite of software including the Code Composer Studio™ v6 Integrated
Development Environment, C55x Chip Support Library, and an included out of box audio demo application
with source code to accelerate your time to market.
The out of box demo package includes an audio playback demo running on the C5545 BoosterPack and a
companion equalizer app for Android device. The audio demo supports either playback of wave (.WAV)
audio files included on the SD card or streaming of audio from LINE IN to HEADPHONE port of the C5545
BoosterPack. Audio playback can be controlled using on-board push buttons or voice commands with
menu options displayed on the OLED screen. Using the android app provides control for playback
equalizer parameters through a Bluetooth Low Energy interface provided by the CC2650. For more details
on the out of box demo, see the TMS320C5545 DSP BoosterPack Software User's Guide (SPRUI92) .
SPRUI90 – September 2016
Submit Documentation Feedback

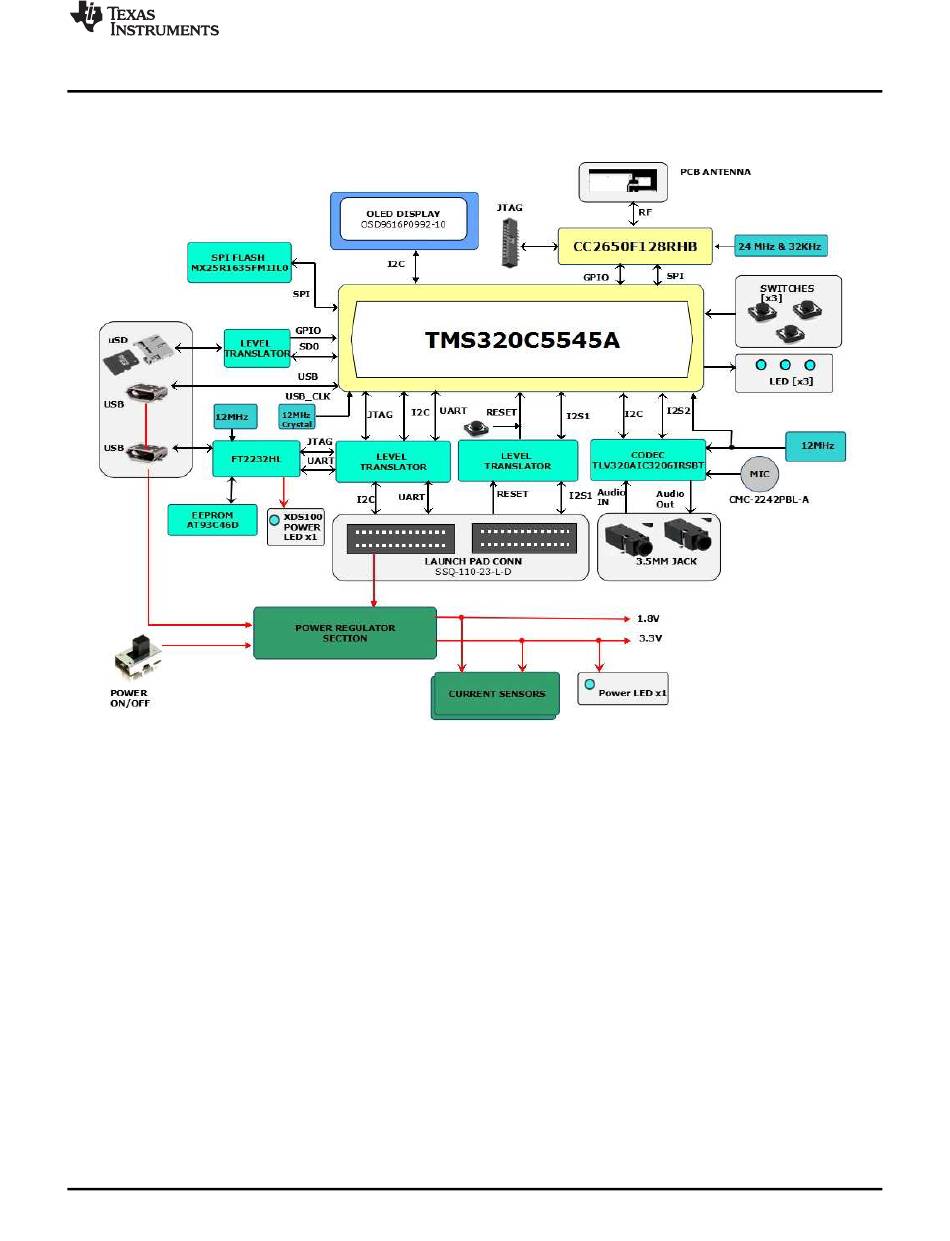

Figure 1. C5545 BoosterPack Functional Block Diagram
Copyright © 2016, Texas Instruments Incorporated
Figure
1.
TMS320C5545 BoosterPack Hardware
Overview
7
