System Power Requirements

4 System Power Requirements
This section describes the power supply design of the C5545 BoosterPack board. It contains:
•

Power Distribution Diagram

• Power Calculation
• Power-Up Sequence
4.1

Power Distribution Diagram

5V from Launch Pad
SPIFLASH
MXZSR1635FM1ILO
AUDIO CODEC
TLV320AIC3206IRSBT
Wireless MCU
CC2650F128RHB
Level Translators
5v from Micro USB Conn
38
TMS320C5545 BoosterPack Hardware
Header
TPS62161DSGT
USB_VDDOSC

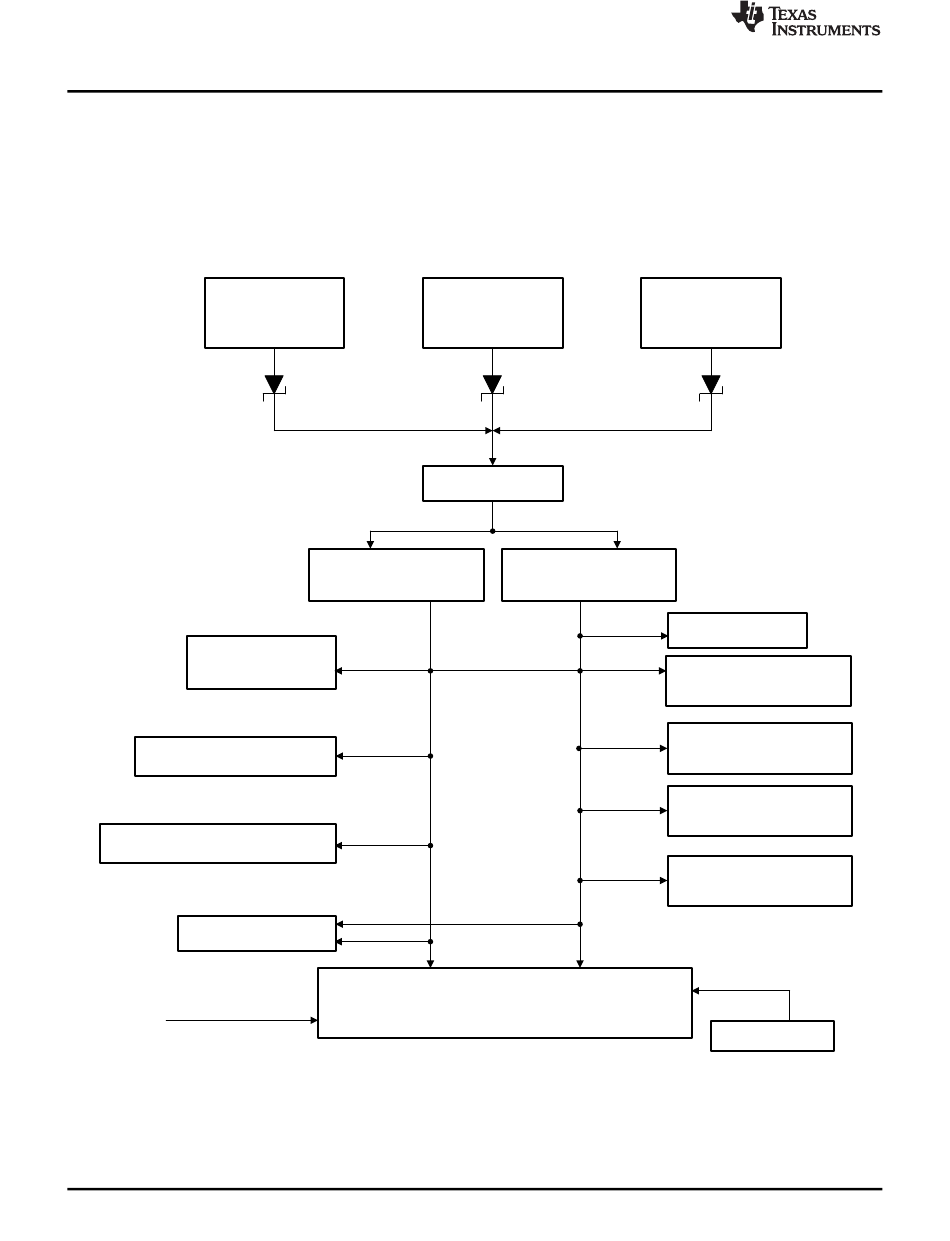

Figure 31. Power Distribution Diagram
