Overview
OLED DISPLAY
10
TMS320C5545 BoosterPack Hardware
ZIF CONN for
(J11)

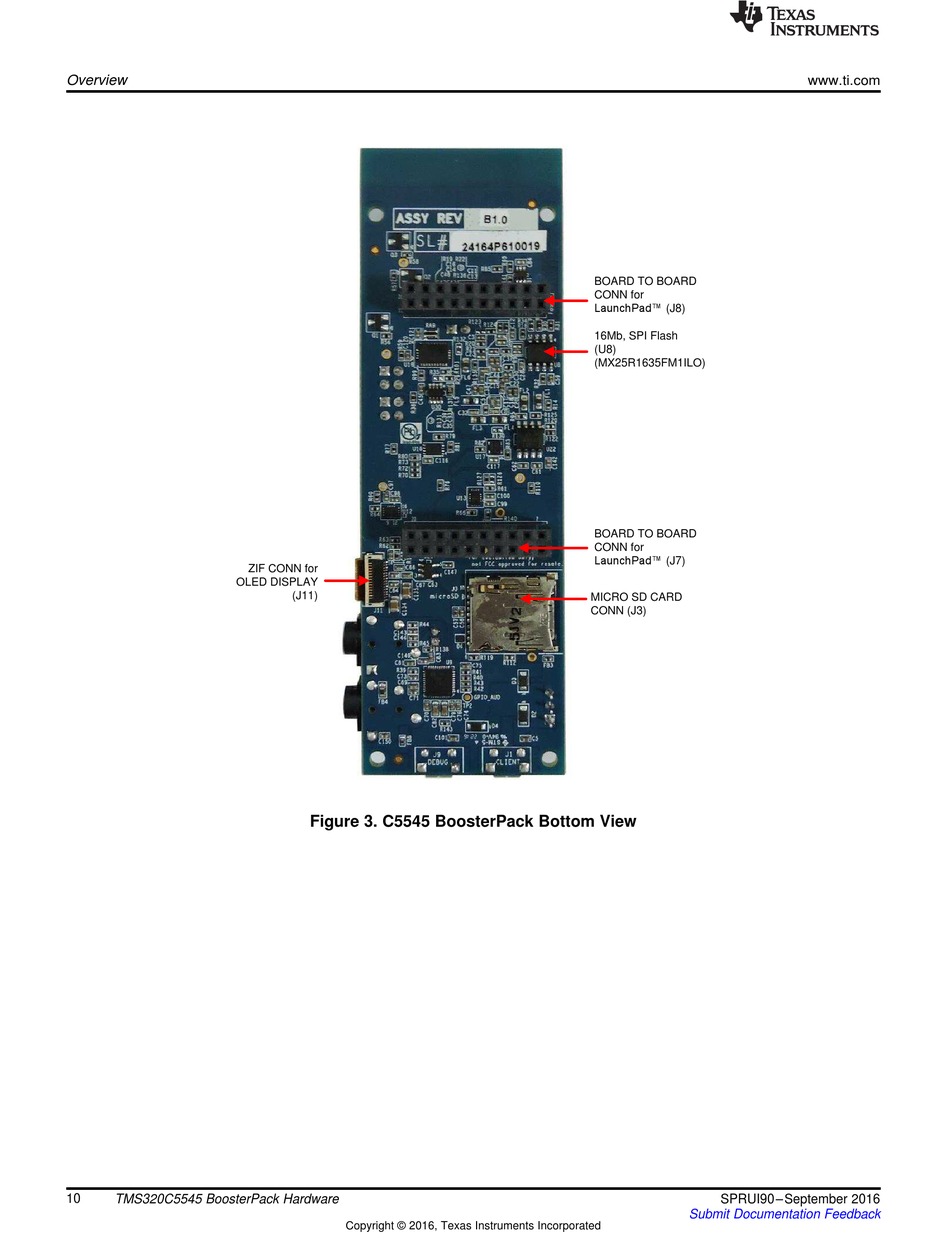

Figure 3. C5545 BoosterPack Bottom View
Copyright © 2016, Texas Instruments Incorporated
BOARD TO BOARD
CONN for
/DXQFK3DGΠ(J8)
16Mb, SPI Flash
(U8)
(MX25R1635FM1ILO)
BOARD TO BOARD
CONN for
/DXQFK3DGΠ(J7)
MICRO SD CARD
CONN (J3)
SPRUI90 – September 2016
Submit Documentation Feedback
www.ti.com
