2.4
SPI FLASH Interface
The C5545 BoosterPack includes a 2MB Serial Flash (MX25R1635FM1IL0 from Macronix) which is
interfaced to the C5545 DSP as shown in
and the CC2650, which is selected through chip select 0 and 2, respectively.
The Hold signal (to pause the serial communication without deselecting the device) is disabled with a pull-
up resistor. Pull up/pull down options are provided for the write protect signal, which is disabled in the
default configuration.
SPRUI90 – September 2016
Submit Documentation Feedback
Figure
7. The SPI port of the DSP is shared with the SPI Flash

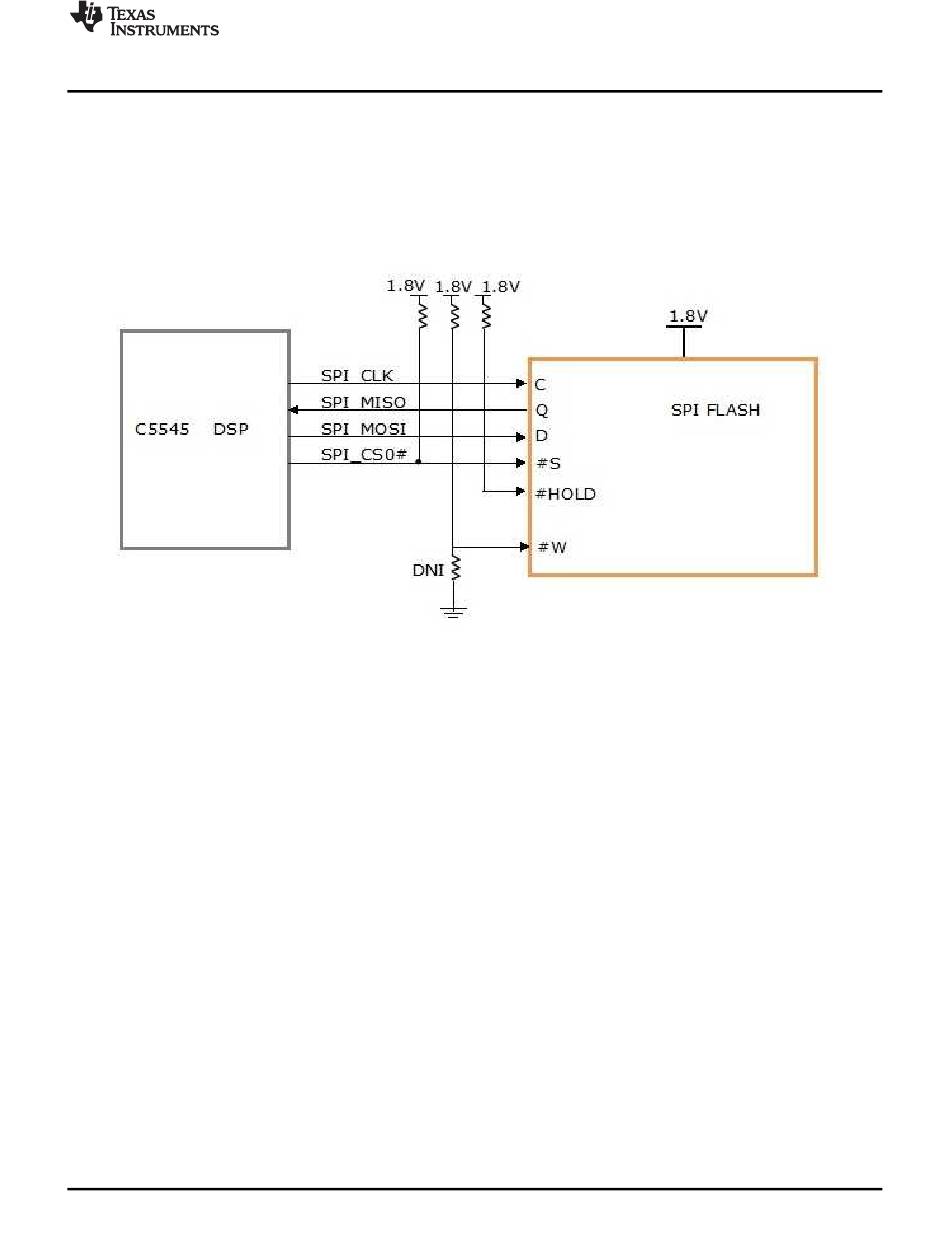

Figure 7. SPI FLASH Interface
Copyright © 2016, Texas Instruments Incorporated
Introduction to C5545 BoosterPack Board
TMS320C5545 BoosterPack Hardware
15
