System Power Requirements
4.3

Power-Up Sequence

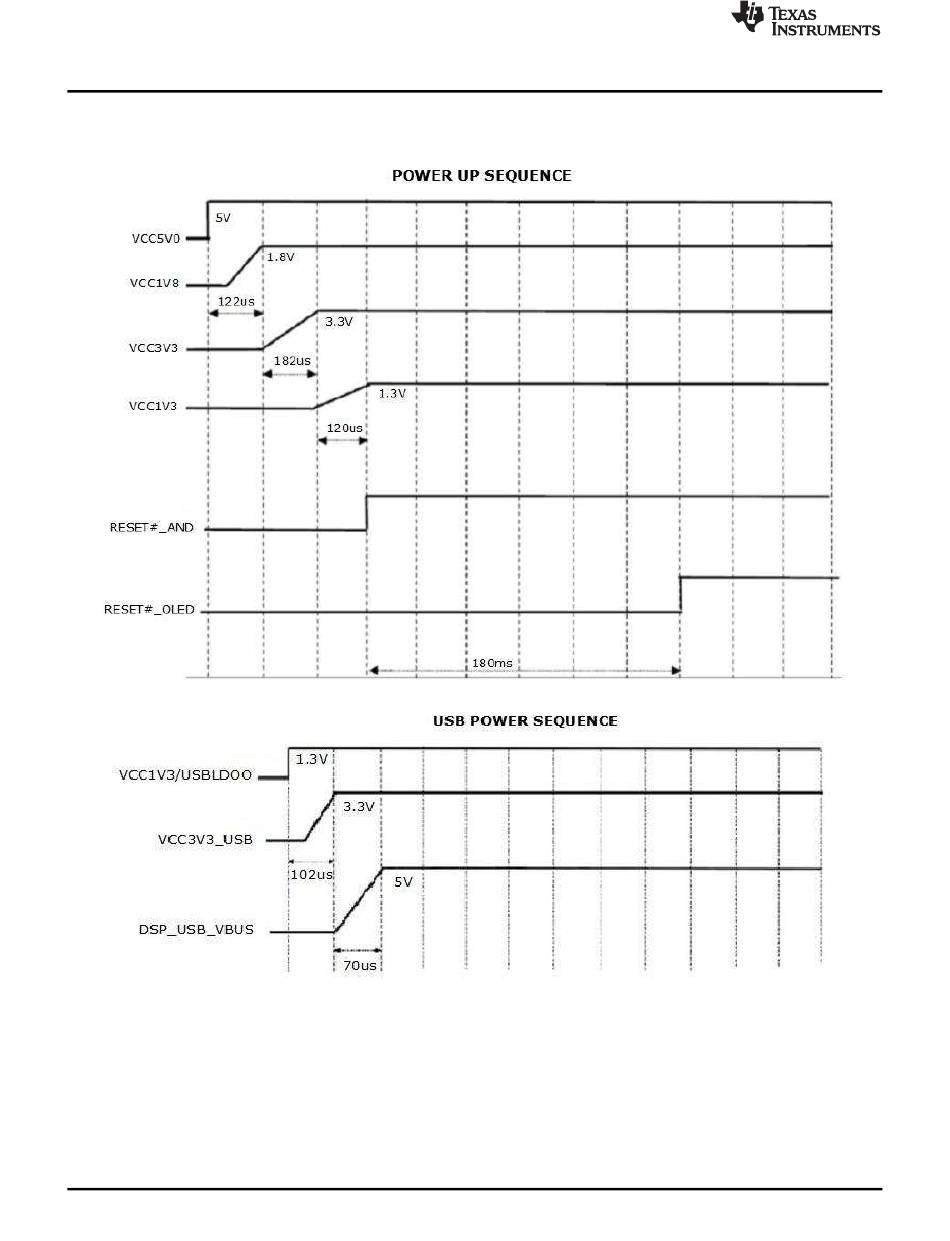

Figure 33 shows the power-up sequence required for the processor.
40
TMS320C5545 BoosterPack Hardware
Figure 33. Power-Up Sequencing
