www.ti.com
2.12.4
Connecting C5545 BoosterPack to MSP432P401R LaunchPad
Connect the C5545 BoosterPack to MSP432P401R LaunchPad as shown in
Insert the C5545 BoosterPack headers (J7 and J8) to the LaunchPad headers (J1-J4).
Press gently to avoid the PCB warping issues.

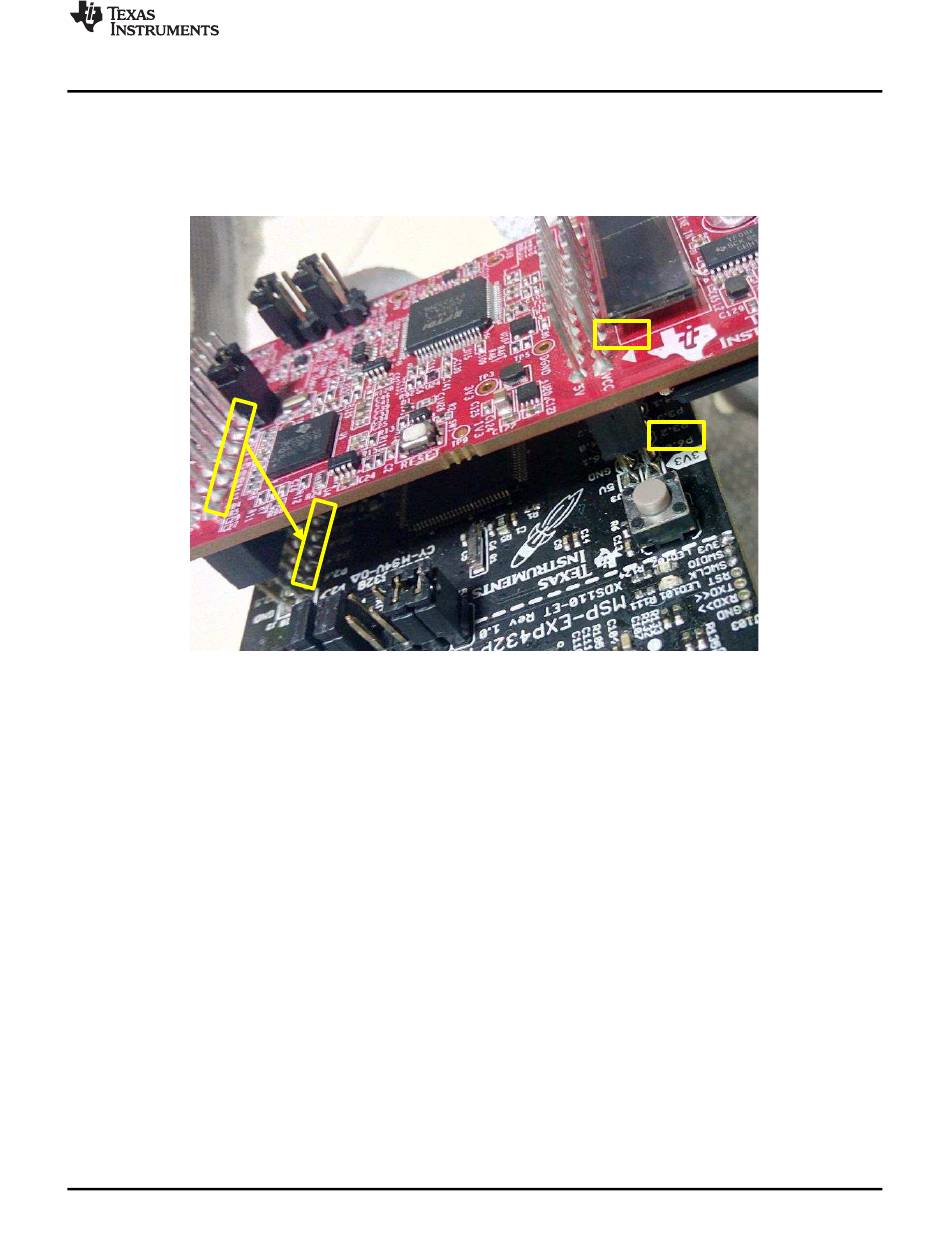

Figure 23. C5545 BoosterPack Connected With MSP432P401R LaunchPad
SPRUI90 – September 2016
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Introduction to C5545 BoosterPack Board
Figure
20.
TMS320C5545 BoosterPack Hardware
25
