C5545 BoosterPack Board Physical Specifications
3.2.1
JTAG-XDS100 Micro USB Connector (FT2232H)
Pin Number
1
2
3
4
5
6
7
8
9
32
TMS320C5545 BoosterPack Hardware

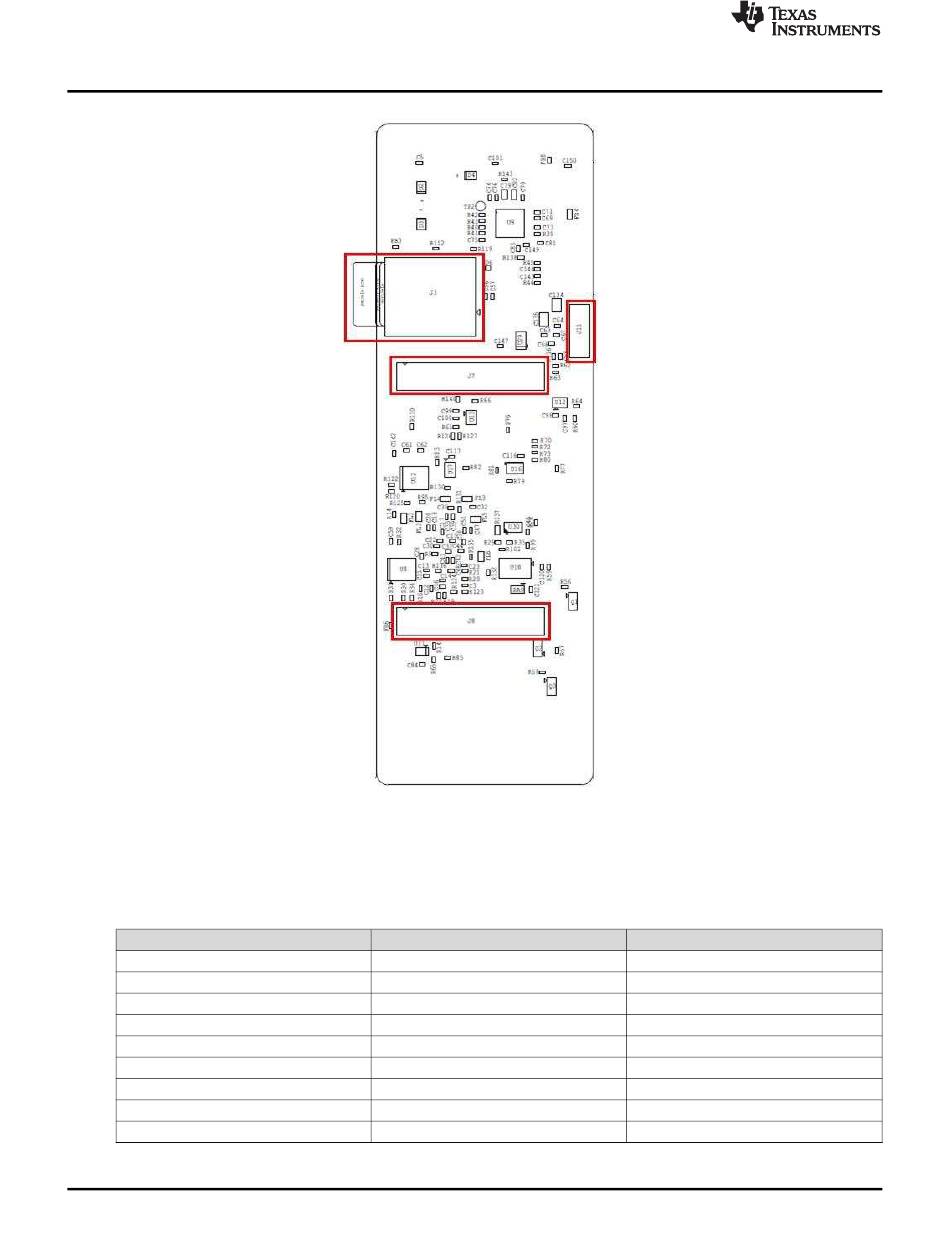

Figure 29. Connectors on C5545 BoosterPack - Bottom
Table 5. JTAG-XDS100 Micro USB Connector (FT2232H)
Copyright © 2016, Texas Instruments Incorporated
Pin Description
VBUS
DM
DP
ID
GND
SHLD1
SHLD2
SHLD3
SHLD4
www.ti.com
Remarks
USB power
Data -
Data +
Device configuration
Ground
Shield ground
Shield ground
Shield ground
Shield ground
SPRUI90 – September 2016
