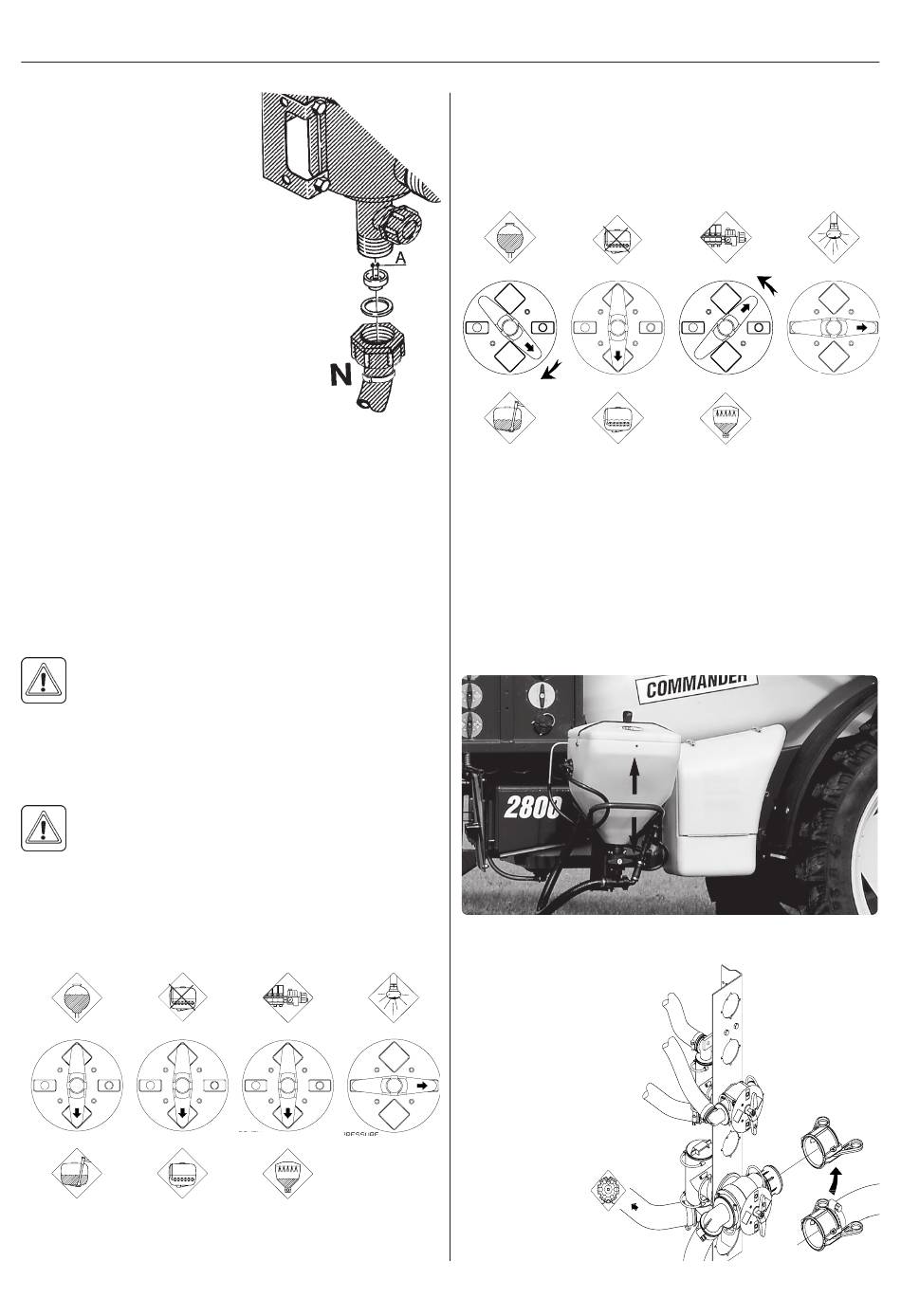

The hose N is demounted at the
self-cleaning filter, the restrictor
is put in the hose and the hose
is mounted again. If the re-
quired working pressure cannot
be obtained, the restrictor is too
large. Choose a smaller restrictor. Start
with a black one, then a white and finally a
red one.
When cleaning the filter remove hose N
and the hose at the safety valve, and
check there are no residue.
Standard filter size is 80 mesh. Sizes of
50 and 100 mesh are available and can
be changed by opening the filter top,
and replace the strainer.
Check the O-rings before reassembling the filter and
replace if damaged.
F F F F F illing of illing of illing of c c c c chemicals illing of illing of hemicals hemicals hemicals hemicals
Chemicals can be filled in the tank in two ways:
1. Through tank lid.
2. By means of HARDI FILLER chemical filling device.
WARNING! Always wear correct protective
clothing before handling chemicals!
1. F 1. F illing thr illing thr ough tank lid ough tank lid
1. F 1. F 1. Filling thr illing thr illing through tank lid ough tank lid ough tank lid
The chemicals are filled through the tank lid - Note
instructions on the chemical container!
WARNING! Be careful not to slip or splash
chemicals when carrying chemicals up to the tank
lid!
1. Make sure the EVC is switched off.
2. Set the MANIFOLD valves to correct position. Black
valve “Suction from main tank”, green valve towards
“Agitation”
Black
Green
3. Engage the pump and set P.T.O. revolutions to 540
r/min or 1000 r/min (depending on pump model).
40
Operation
T020-0020
Green Green
4. Add the chemicals through the main tank hole.
5. When the spray liquid is well mixed, turn handle on
the Pressure Manifold towards “Spraying” position.
Keep P.T.O. engaged so the spray liquid is continu-
ously agitated until it has been sprayed on the crop.
Black Green
2. F 2. F illing b illing b y HARDI FILLER c y HARDI FILLER c
2. F 2. F 2. Filling b illing b illing by HARDI FILLER c y HARDI FILLER chemical y HARDI FILLER c
inductor inductor inductor
inductor inductor
To get access to the HARDI FILLER, grab the handle
and drag the HARDI FILLER the whole way down. Due
to the spring loaded suspension, it will stay in this
position. After use, it is pushed the whole way up again.
T060-0119
Filling of Liquid
chemicals
1. Fill the main tank at
least / with
1
3
water (unless
something else
is stated on the
chemical
container
label). See
section “Filling
of water”.
2. Turn the handle
at the Suction Mani-
fold towards “Main tank” .
GB 08 04
Green Green
hemical hemical
hemical hemical
T042-0001
