When driving on public roads and other areas where the
highway code applies, or areas where there are special
rules and regulations for marking and lights on imple-
ments, observe these and equip implements accord-
ingly.
NOTE! Max. driving speed is 25 km/h for models without
brakes and 40 km/h for models equipped with brakes.
R R R R R ear lights (if ear lights (if f f f f fitted) ear lights (if ear lights (if itted) itted) itted)
ear lights (if itted)
Connect plug for rear lights to the tractor’s 7-pin socket,
and check function of rear lights, stop lights and direc-
tion indicators on both sides before driving.
The wiring is in accordance with ISO 1724. See section
on Technical specifica-
tions.
Before transport on
public roads the front
warning boards with
position lamps must be
folded out (fitted in
certain countries only).
Stop w Stop w Stop w Stop w Stop wedg edges (if edg edg edg es (if es (if es (if es (if f f f f fitted) itted) itted) itted) itted)
T021-0004
Sprayer setup
T T T T T r r r r r anspor anspor anspor ansport br anspor
The transport brackets can be set in different positions.
Thereby it is possible to obtain different transport heights
and suitable clearance above various tractor cabins.
When changing the setting of the transport brackets it is
done as a combination of adjusting the transport brack-
ets themselves (1) and adjusting the transport locks (2).
Always choose a transport height as low as possible.
(1)
T042-0003
T142-0032

2. Transport lock

To change position:
1. Lift and unfold inner sections till lock is disengaged.
2. Loosen and remove the two bolts, which keep the
parts A and B assembled.
3. Reassemble A and B according to desired hole
combination.
NOTE! Always use both bolts to assemble the lock. The
setting must be identical on both sides.
NOTE! The rear settings must correspond to the front
settings so the boom is resting on the front as well as
rear brackets.
GB 05 08 01 05

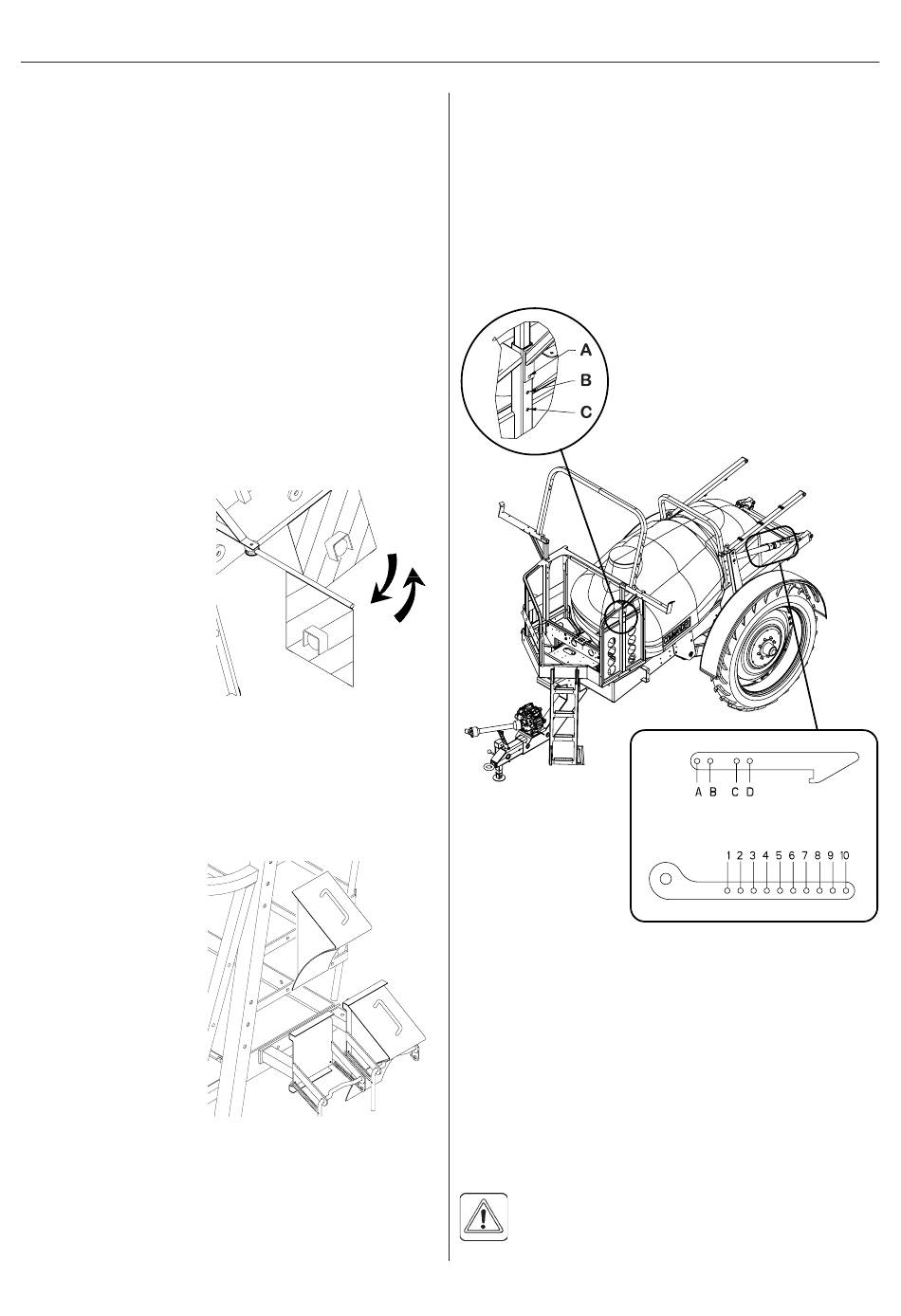

t br t br t brac t br ac ac ack k k k k ets ac ets ets, height setting ets ets , height setting , height setting , height setting , height setting
1. Transport brackets
The transport bracket can be
set at three different positions
A, B or C.
Loosen the bolt to change
position and replace it accord-
ing to new setting. The setting
must be identical on both
sides.
(2)
WARNING! The max. transport height must
never exceed 4.0 m (13.1 ft.). Always measure
the actual total height and choose settings not
exceeding 4.0 m.
23
