Fixed Drawbar; Steering Drawbar; Self Track For Commander 2200/2800; Auto Track - Hardi Commander Plus SPC Series Instruction Book

F F F F F ix ix ix ix ixed dr ed dr ed dr ed dr ed dra a a a a wbar wbar wbar wbar wbar

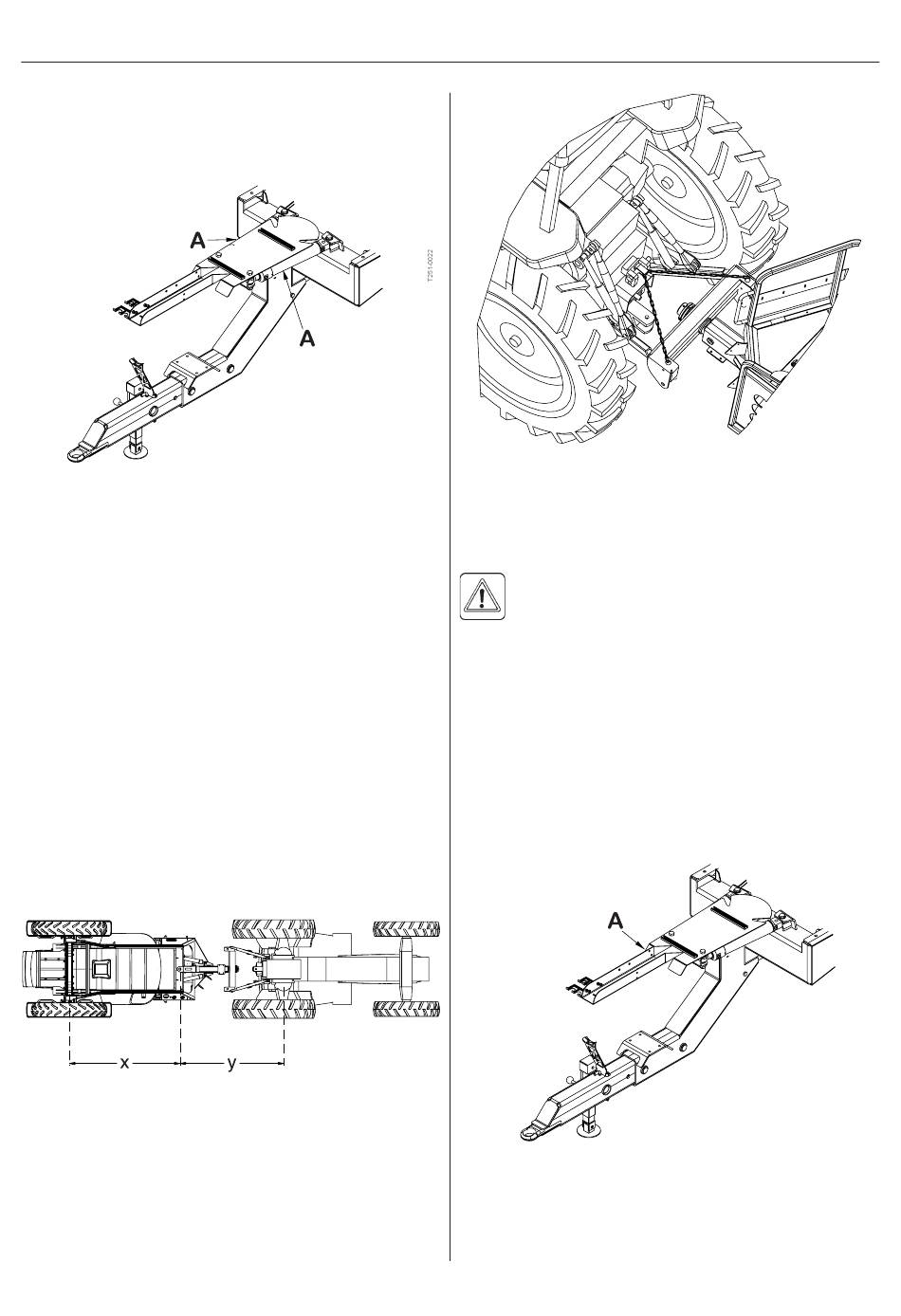

Make sure the drawbar points straight ahead from its
position on the trailer. If not, the two turn buckles A can
be adjusted till the drawbar is centred.
STEERING dr STEERING dra a a a a wbar STEERING dr wbar wbar
STEERING dr STEERING dr wbar wbar
Transport lock (if fitted)
The transport lock is a safeguard that will keep the
drawbar in a centred position in case of hydraulic leak-
age during transport on public roads.
The transport lock is fixed by linch pins.
If necessary, the transport lock can be adjusted by
turning the turnbuckle.
SELF TRA SELF TRA SELF TRA SELF TRACK f SELF TRA CK for COMMANDER 2200/2800 CK f CK f CK f or COMMANDER 2200/2800 or COMMANDER 2200/2800 or COMMANDER 2200/2800 or COMMANDER 2200/2800
SELF TRACK is connected as follows:
1. Attach the tractor lower links in the two mountings of
the SELF TRACK. Adjust the length of the drawbar if
necessary - to obtain the best tracking, choose the
setting where the distance X is equal to distance Y.
Secure with linch pins.
2. Attach safety chains to top link clevis. The chain will
prevent the transmission shaft from being damaged if
the lift arms are lowered too far. Adjust the chain
length so the chains are tight when the tractor P.T.O.
and pump shaft are in a horizontal line.
10
Sprayer setup
NOTE! If possible, lock the tractor hydraulic lever when
the lift arms are in the correct position to avoid the
sprayer weight resting on the stabiliser chains.
3. Tighten the lift arm stabiliser chains.
A A A A A UT UT UT UTO TRA
UT
Please refer to separate instruction book.
Hose pac Hose pack k k k k a a a a a g g g g g e suppor Hose pac
Hose pac Hose pac
To prevent hoses and wiring from being damaged by the
tractor wheels, all hoses, cables and wires are held by
the hose bracket A fitted to the drawbar.
T251-0015
T251-0023
Check that the length of the hoses and cables are
sufficient by tight turns.
GB 05 02 01
WARNING! Do not stand in the area around the
drawbar during manoeuvring.
O TRACK O TRA O TRA CK CK CK
O TRA CK
e support t t t t e suppor e suppor
e suppor
T251-0016
