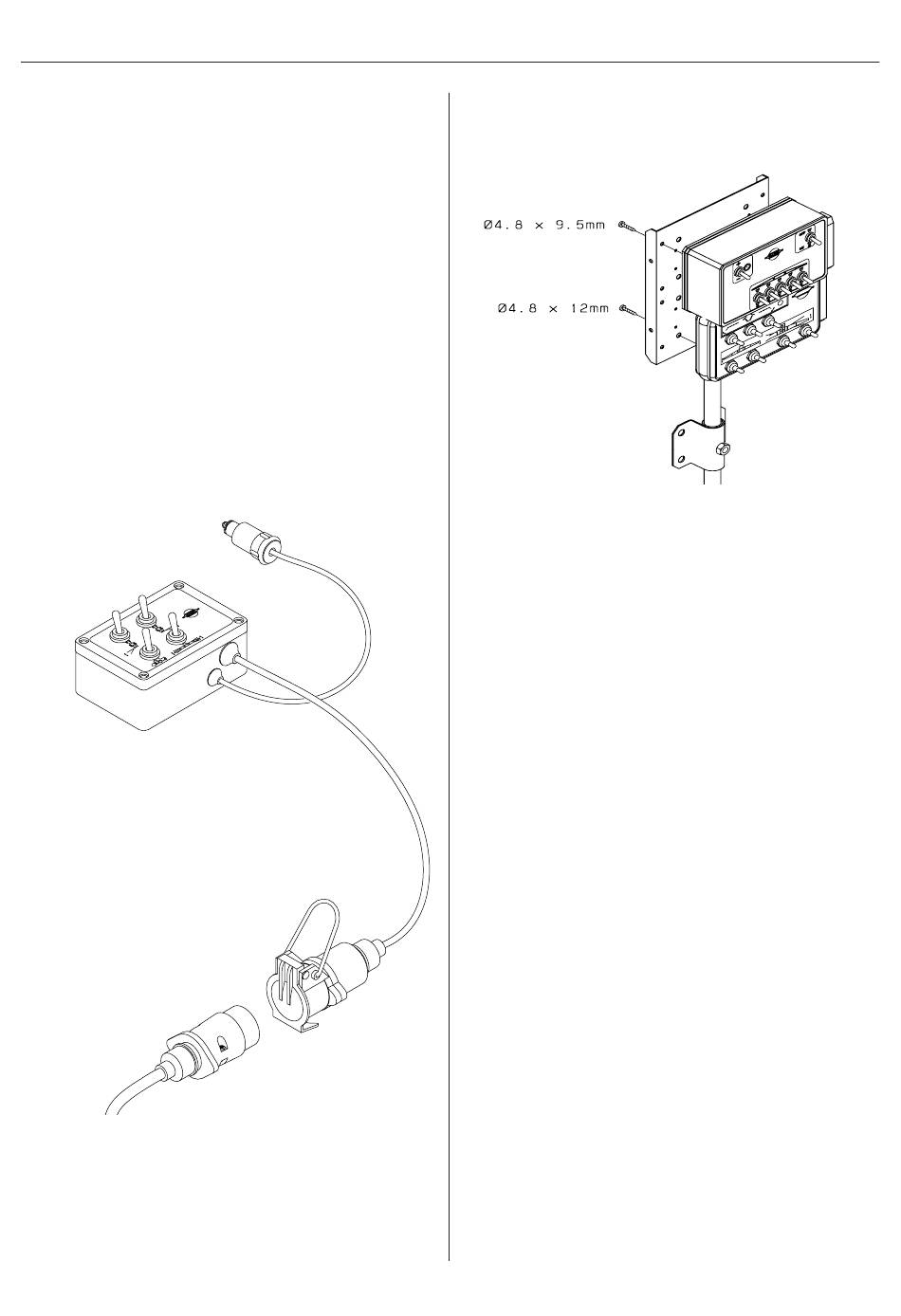

Installation of control box

1. Connect the plug A to the tractor’s 12V power system.
Try to hook-up the handle as close as possible to the
battery power supply. HARDI recommends using an
electric distribution box (ref. no. 817925) to ensure a
good power supply to various 12V attachments.
Note! Check with your dealer or tractor operator’s
manual for the best location to hook up the 12V system.
Note polarity: BROWN wire
BLUE wire
2. Route the cable, with the 7 pins, from the hydraulic
mount plate to the tractor.
3. Mount the hydraulic control box B in a suitable loca-
tion in the tractor cabin.
4. Connect the female 7 pin plug C from the switch box
to the 7 pin male plug D from the sprayer.
B B B B B
T045-0010
Sprayer setup
ol box (type Z only) ol bo ol bo ol bo x (type Z only) x (type Z only) x (type Z only) x (type Z only)
= Positive (+)
= Negative (-)
A A A A A
C C C C C
D D D D D
Control bo Contr Contr Contr Contr ol bo ol bo ol bo ol box - EV x - EV x - EVC oper x - EV x - EV
The control boxes for EVC-operating unit is fitted in the
tractor cabin at a convenient place. Tapping screws can
be used for mounting.
Power requirement is 12V DC.
Note Polarity:
The wires must have a cross sectional area of at least
4.0 mm to ensure sufficient power supply. For the EVC-
operating unit the tractor circuit should have an 8 Amp
fuse.
Use the HARDI Electric distribution box
(Ref. no. 817925) if the tractor has a doubtful power
supply.
GB 05 06 03 04
C oper C oper C opera a a a a ting unit C oper ting unit ting unit ting unit ting unit
BROWN wire = Positive (+)
BLUE wire = Negative (-)
T165-0013
