Installing the wire cutter

Installing the Wire
Cutter on the
Cleaning Device
1
1
2
3
Maximum Wire For conventional applications (one wire electrode), wire electrodes with a diameter of up
Diameter to 1.6 mm (0.063 in.) can be cut with the appropriate wire cutter.
For twin applications (two wire electrodes), two wire electrodes with a diameter of up to
1.6 mm (0.063 in.) can be cut simultaneously with the appropriate wire cutter.
Operating Princi- The opening and closing of the electrically controlled wire cutter is triggered by an active
ple of the Electri- signal from the robot control.
cally Controlled
Wire Cutter
44
NOTE! Wire cutters for conventional applications (one wire electrode) and for
twin applications (two wire electrodes) should be installed in the same manner –
as described below.

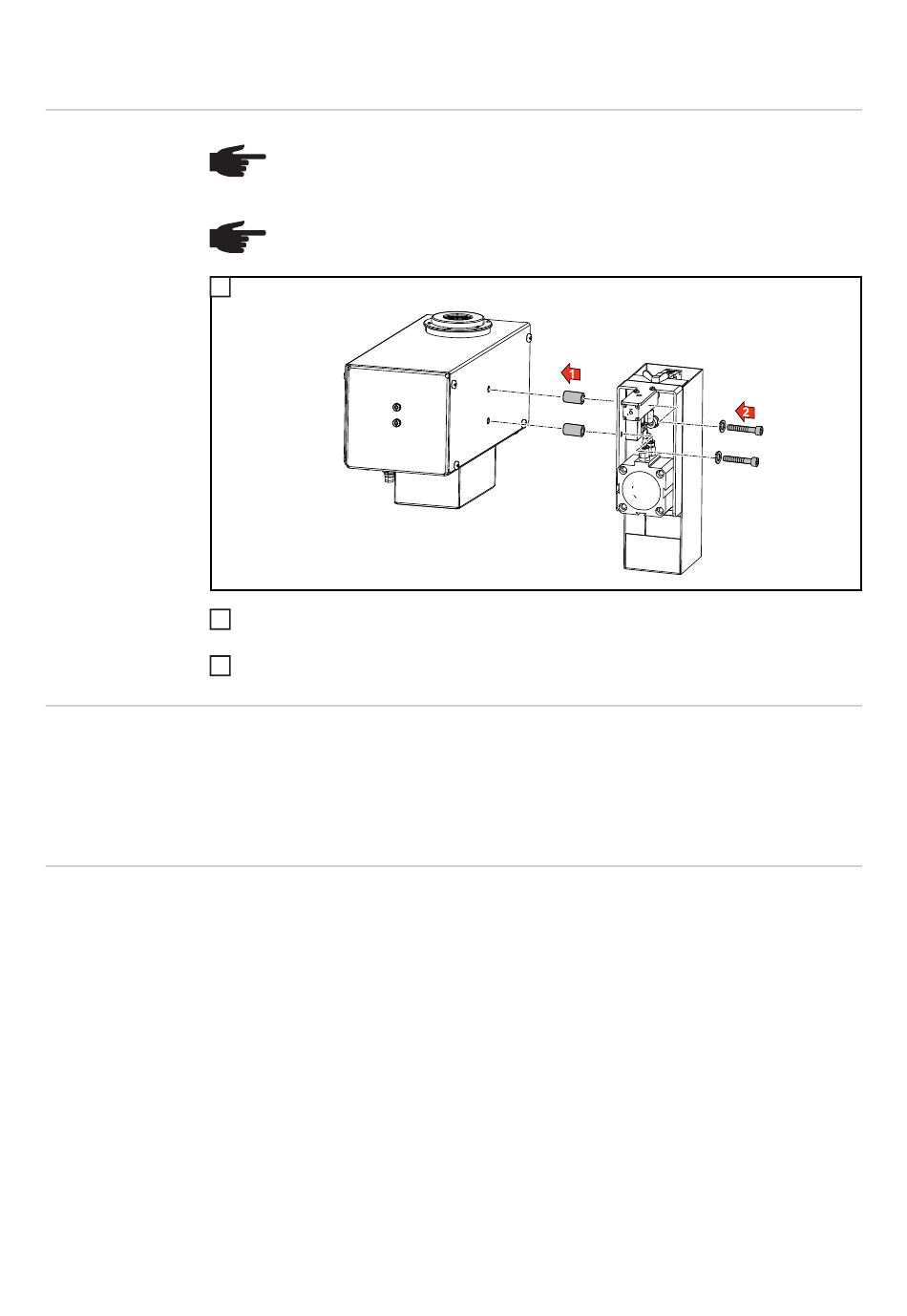

NOTE! The spacers, lock washers and screws for installing the wire cutter are
supplied with the wire cutter.
Connect the wire cutter connection cable to the wire cutter connection socket on the
cleaning unit
Connect the wire cutter's compressed air supply
