Representation of Depending on the requirements, the insertion depth of the welding torch in the cleaning coil
the Magnetic Flux can be used to regulate how strong an effect the magnetic flux density should have on the
Density Within individual areas of the welding torch.
the Cleaning Coil
for Single-Wire
Applications
Representation of Depending on the requirements, the insertion depth of the welding torch in the cleaning coil
the Magnetic Flux can be used to regulate how strong an effect the magnetic flux density should have on the
Density Within individual areas of the welding torch.
the Cleaning Coil
for Twin Applica-
tions
20
NOTE! If the robot control deactivates the 'Quick Stop' signal during the pro-
gram sequence, the cleaning device program sequence will be aborted im-
mediately. For safety reasons, the capacitors are discharged via the cleaning
coil.
NOTE! For the operation of the cleaning device, use the insertion depth details
for the welding torch from the program sequence.
Cleaning coil
NOTE! For the operation of the cleaning device, use the insertion depth details
for the welding torch from the program sequence.

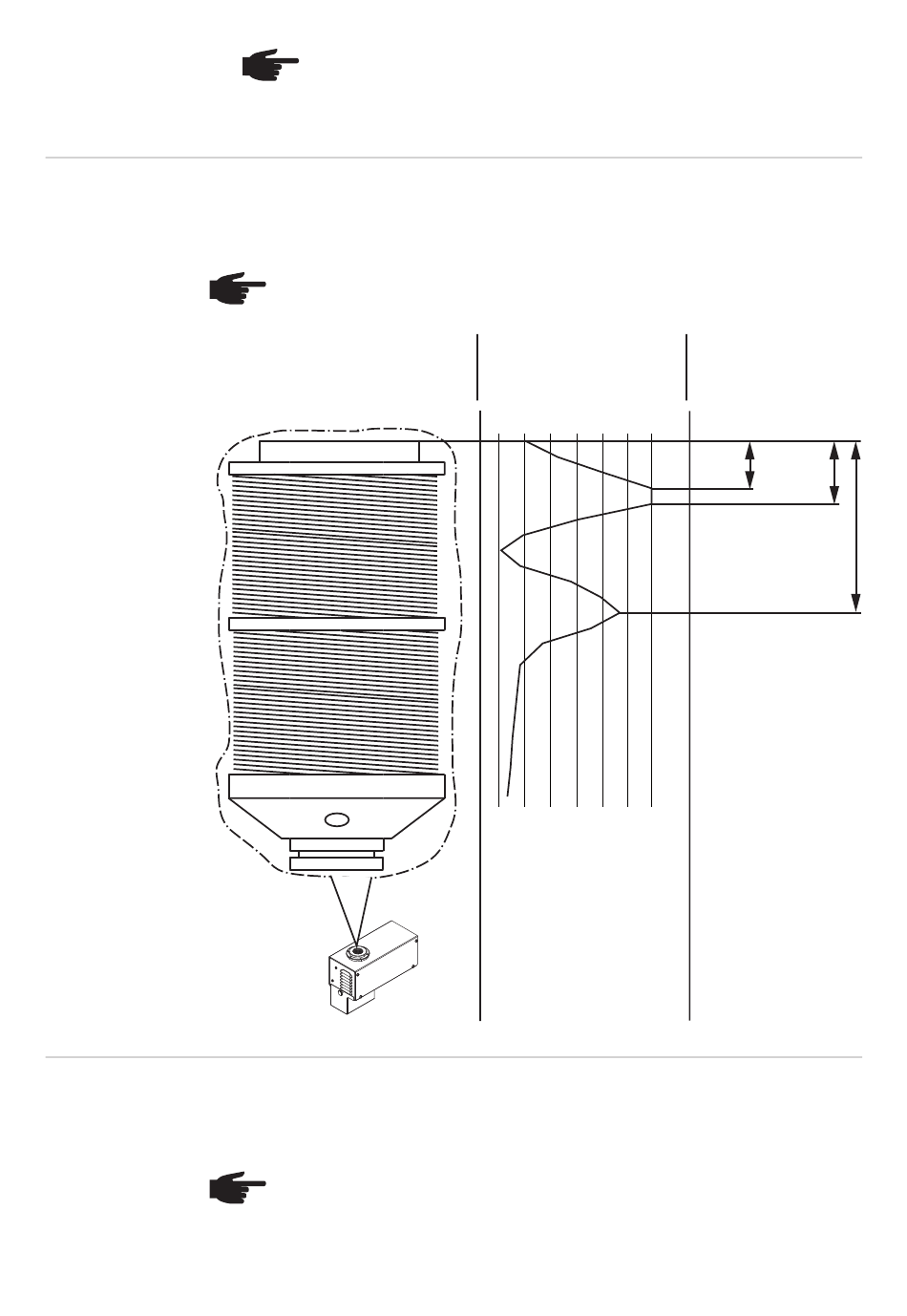

Diagram of available mag-
netic flux density
0 % 100 %
Insertion depth of the
torch body into the
cleaning coil
15 mm
10 mm
0.59 in.
0.39 in.
50 mm
1.97 in.
