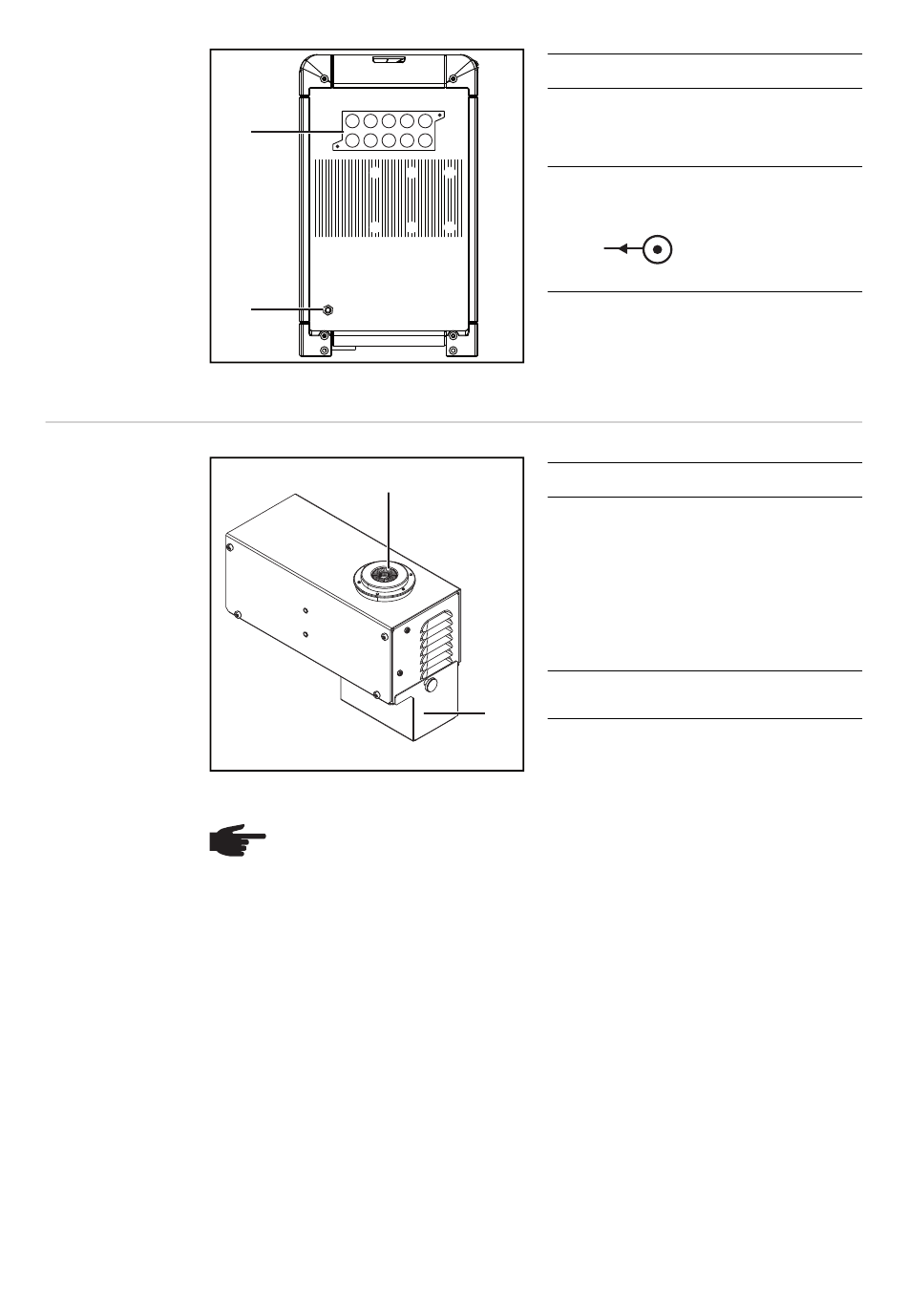

Device rear
Connections and
Mechanical Com-
ponents of the
Cleaning Unit
Top of the cleaning unit
32
(4)
(5)
(1)
NOTE! On the standard cleaning unit (Cleaning Unit TC 2000) , the cleaning ap-
erture is equipped with a brush seal at the factory. This cleaning unit may only be
operated if the brush seal is installed. Brush seals must not be removed.
No. Function
(4) Cleaning unit connection socket
For connecting the cleaning unit
connection cable
(5) Compressed air connection
For supplying the cleaning device
with compressed air
No. Function
(1) Cleaning aperture with internal
parting-agent injection nozzles
and brush seal
- For cleaning the gas nozzle and
the interior of the welding torch
- For wetting the gas nozzle and the
interior of the welding torch with
parting agent
(2) Collecting container for welding
residues
(2)
