Setting Up and Connecting the Cleaning Device

Installation Note

Screwing the
Cleaning Unit and
Work Stand to the
Surface (Founda-
tion)
1
2
Screwing the
Base Unit and
Work Stand to the
Surface (Founda-
tion)
NOTE! Before the definitive installation of the base unit and cleaning unit, make
sure that the cleaning unit interconnecting hosepack is long enough for the
planned installation positions. After the installation of the devices, the intercon-
necting hosepack must rest on the ground without any tensile stress and must not
be suspended in the air.
WARNING! Danger of serious personal injury and damage to property from weld-
ing residues being thrown out of the cleaning aperture of the cleaning unit. Only
use the cleaning unit with the supplied collecting container for welding residues.
NOTE! Depending on the surface (foundation), different mounting materials may
be required for connecting the work stand to the surface. The mounting materials
required for connecting the work stand to the surface are not supplied with the
work stand. The screws that are supplied with the work stand are not suitable for
screwing the work stand to the surface. The installer is responsible for selecting
the proper mounting materials.
Position the work stand (available as an option) on a level, solid and vibration-free sur-
face
- Position the work stand so that the robot's approach route to the cleaning unit on
the work stand is as short as possible
Tightly screw the work stand to the surface using the selected mounting materials
NOTE! Only attach the base unit to the foundation with the work stand provided
for that purpose.
NOTE! Depending on the surface, different mounting materials may be required
for connecting the work stand to the surface. The mounting materials required for
connecting the work stand to the surface are not supplied with the work stand.
The screws that are supplied with the work stand are not suitable for screwing the
work stand to the surface. The installer is responsible for selecting the proper
mounting materials.

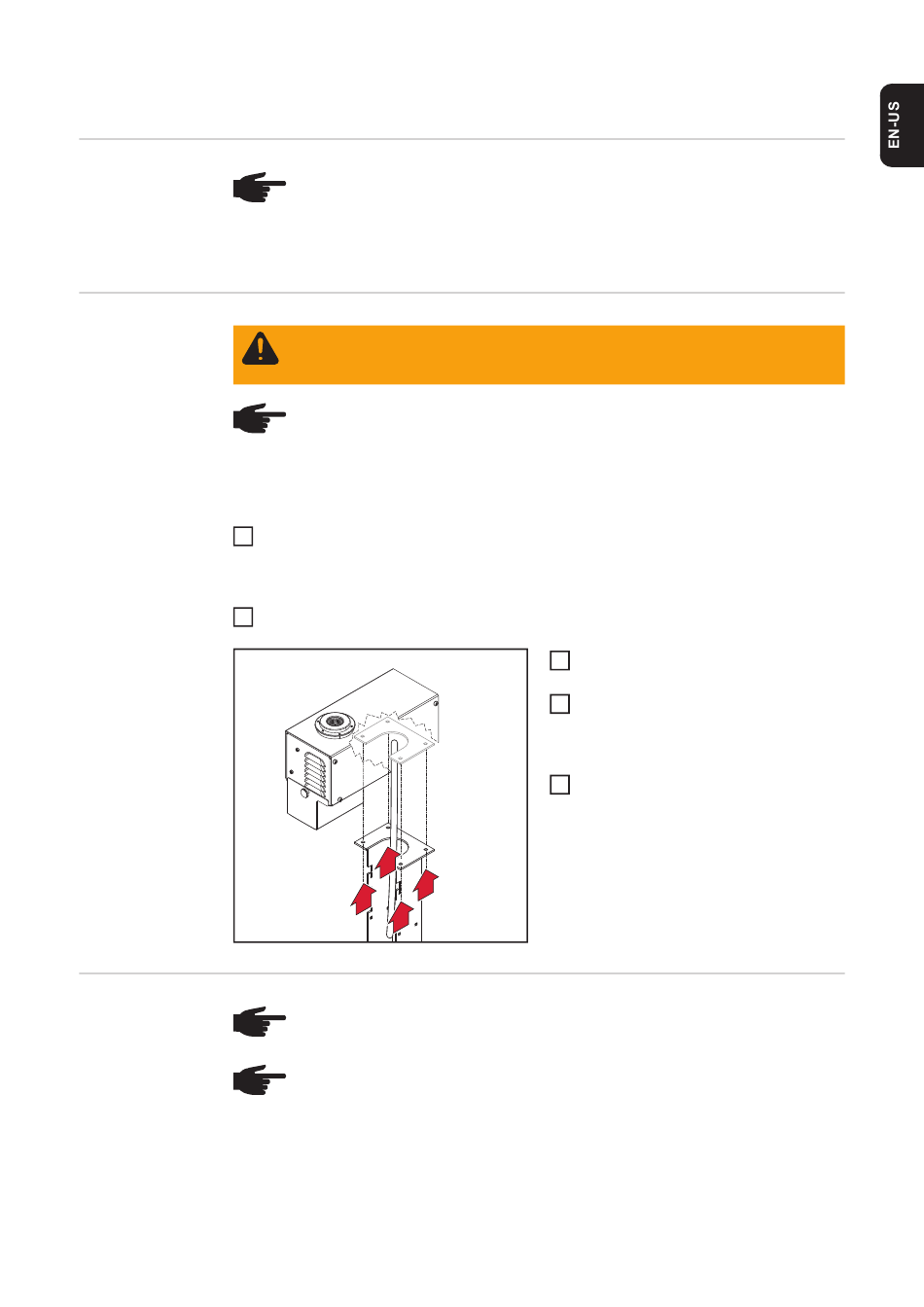

Position the cleaning unit on the work
3
stand
Attach the cleaning unit to the work
4
stand using lock washers and screws –
lock washers and screws are supplied
with the work stand
Clip the collecting container for the
5
welding residues onto the cleaning unit
and fasten it with the knurled-head
screw
